SPIDER-SL-20-08T Wide Temp – 8-Port Unmanaged Switch by Hirschmann, a Belden Brand

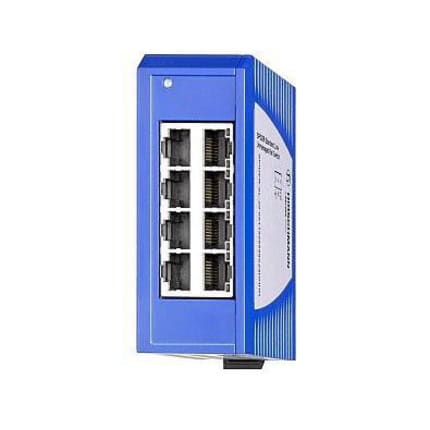

The Hirschmann SPIDER-SL-20-08T1999999TY9HHHH is an eight-port all-copper unmanaged industrial Fast Ethernet switch from the SPIDER III family, providing eight auto-crossing, auto-negotiating, auto-polarity 10/100BASE-TX RJ45 ports for plug-and-play Ethernet switching in industrial environments requiring both high copper port density and a wide operating temperature range. Part number 942132017, this variant is the direct wide-temperature counterpart to the standard-temperature SSL20-8TX (942132002), extending the lower operating limit from 0°C to -40°C and the upper limit from +60°C to +70°C, making it suitable for outdoor cabinets, cold-store facilities, transportation infrastructure, and other applications exposed to ambient temperature extremes. Both variants share the same 38 x 102 x 79mm IP30 compact DIN rail plastic housing at 150g and 1.5W maximum power consumption, but the TY-coded model is the appropriate selection wherever the operating temperature specification of the SY-coded variant is insufficient. Store-and-forward switching ensures data integrity across all eight copper ports, and power is from a 3-pin terminal block accepting 12/24V DC at 9.6V to 32V DC at 63mA maximum. The MTBF is 2,218,157 hours under Telcordia methodology. Industrial EMC immunity covers EN 61000-4-2 ESD at 4kV contact, EN 61000-4-3 at 10V/m, EN 61000-4-4 burst at 2kV power line, and EN 61000-4-5 surge at 2kV line-to-earth. CE, FCC Class A, EN61131, and cUL 61010-1/61010-2-201 approvals apply. A 60-month guarantee is included. Available from Recab, your Nordic partner for Hirschmann industrial Ethernet switch solutions.
