942302003

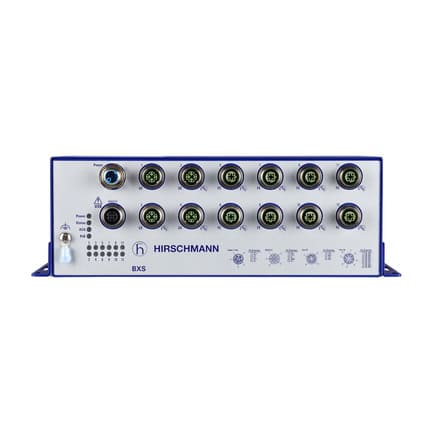

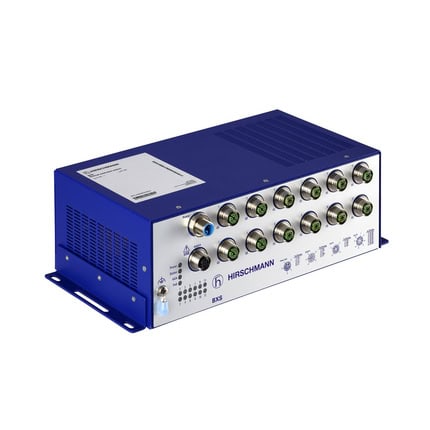

BXS32-12TX-EECC-LV-2A – M12 Railway PoE+ Switch 24-48 VDC by Hirschmann

The Hirschmann BXS32-12TX-EECC-LV-2A is a managed IP40 PoE+ railway switch providing 12 M12 ports — 4 Gigabit Ethernet X-coded and 8 Fast Ethernet D-coded, all PoE-capable — with up to 60W PoE budget at 70°C on a 24–48 VDC low-voltage supply. Running HiOS 2A with TSN, PROFINET, PTPv2, and IEC 62443-4-2 Security Level 2, it is certified to EN 50155, EN 45545 HL3, and NEMA TS2 for onboard train and bus applications. Available from Recab, your Nordic partner for Hirschmann railway switch solutions.
contct-now-icon (2) Get datasheet
Description
The Hirschmann BXS32-12TX-EECC-LV-2A is the low-voltage variant of the BXS32 PoE+ railway switch, operating on 24–48 VDC and designed for onboard use in trains, trams, and buses where power-over-Ethernet delivery to passenger and safety devices must remain reliable even at elevated operating temperatures. The switch provides 12 M12 ports — 4 x Gigabit Ethernet X-coded with 3 PoE-capable, and 8 x Fast Ethernet D-coded all PoE-capable — supporting a total PoE budget of 60W at 70°C, enabling powering of IP cameras, displays, sensors, and access control devices directly over the M12 cabling. The 24–48 VDC input range is compatible with standard auxiliary power systems used in light rail, tram, and bus applications. With a MTBF of 895,418 hours at 25°C, the BXS32-12TX-EECC-LV-2A is engineered for the long service intervals expected in rolling stock deployments. HiOS 2A Layer 2 software supports TSN 802.1Qbv on interfaces 1/1–1/3, HIPER-Ring, MRP (IEC 62439-2) in both manager and client roles, MSTP, Sub Ring Manager, and LACP redundancy. Industrial protocols include PROFINET, EtherNet/IP, IEC 61850, and Modbus TCP. Time synchronisation covers PTPv2 Boundary and Transparent Clock, 802.1AS, and SNTP. Transport certifications include EN 50155, EN 45545 HL3, EN 50121-4, and NEMA TS2, with IEC 62443-4-2 Security Level 2 cyber security certification. The IP40 wall-mounted metal housing supports -40°C to +70°C operation at up to 3000 m altitude. Available from Recab, your Nordic partner for Hirschmann railway switch solutions.
Features
  • Sixty watts total PoE budget maintained at 70°C operating temperature across eleven M12 PoE ports
  • 24-48 VDC input suits auxiliary power systems in trams, light rail, and bus applications
  • MTBF of 895,418 hours at 25°C demonstrates long-term reliability for rolling stock deployments
  • Certified to EN 50155, EN 45545 HL3, EN 50121-4, and NEMA TS2 for global transport compliance
  • IEC 62443-4-2 Security Level 2 certified with secure boot, 802.1X, DHCP Snooping, and TACACS+
  • TSN 802.1Qbv and PTPv2 Boundary and Transparent Clock support precision timing on onboard networks
Specifications
Ports 12 ports total
Voltage 24-48 VDC
Power 22.3W + 60W PoE
Weight 2.37 kg
Dimensions 282 mm x 143.6 mm x 91 mm
Operating Temp -40°C to +70°C
Humidity 1-95 % non-condensing
Protection IP40
MTBF 895418 h
Housing Metal
  • Low-voltage tram and bus onboard networks combining PoE device powering with managed switching
  • Light rail and urban transit vehicles requiring PoE+ over M12 for cameras and passenger displays
  • Rolling stock PoE infrastructure certified to EN 50155 and IEC 62443-4-2 Security Level 2
  • Onboard transport networks requiring 24-48 VDC managed PoE switching with PTPv2 time sync
