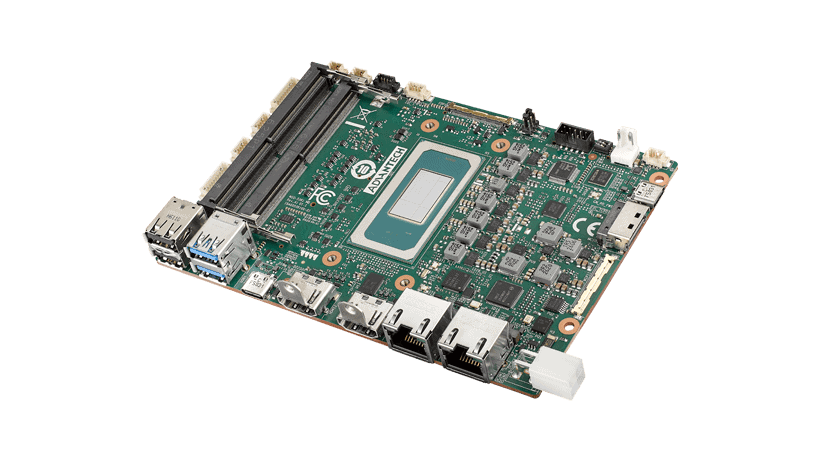

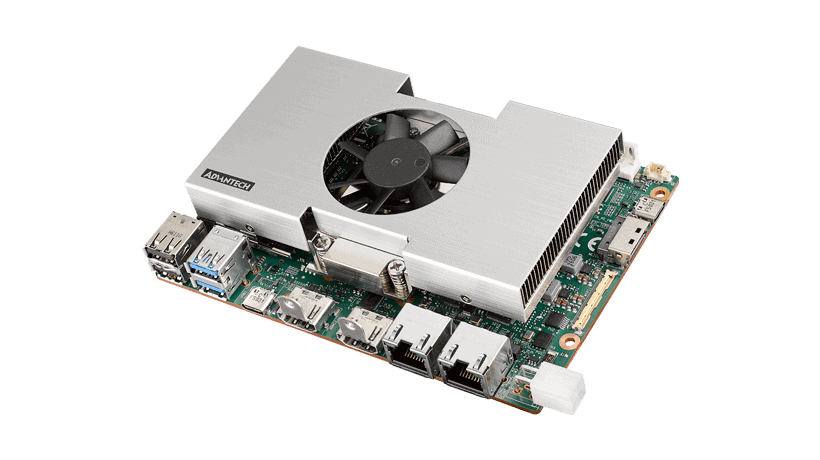

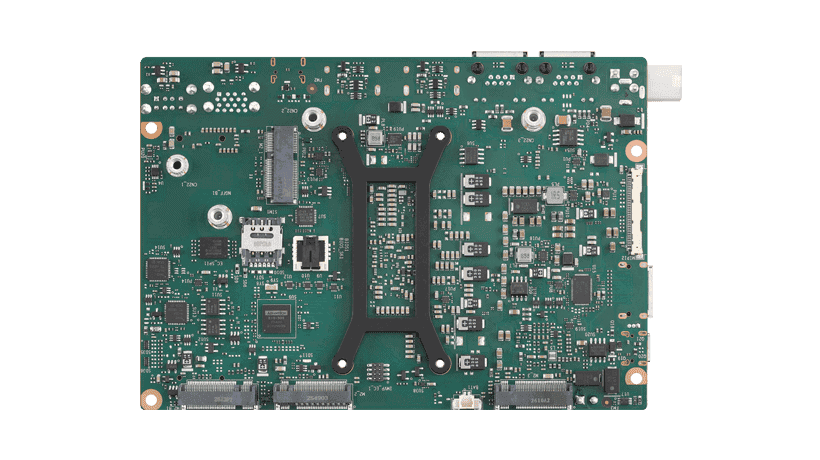

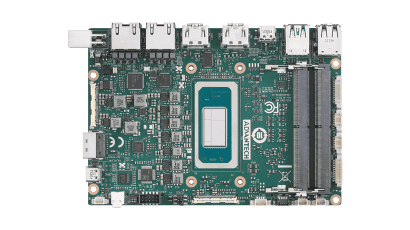

MIO-5381 – Intel Core Ultra Panther Lake 3.5″ SBC by Advantech

The Advantech MIO-5381 represents a cutting-edge 3.5-inch single board computer built on Intel’s latest Core Ultra processor platform, codenamed Panther Lake. Designed for demanding embedded applications requiring exceptional compute performance and AI acceleration, this SBC delivers up to 16 cores with frequencies reaching 4.8 GHz and includes an integrated NPU capable of 50 TOPS for edge AI inference workloads. The platform supports dual-channel DDR5-7200 memory with capacities up to 128GB and features In-Band ECC for enhanced data integrity in mission-critical applications. Display capabilities are comprehensive with support for four simultaneous independent displays through eDP, dual HDMI 2.0, and USB Type-C with DisplayPort Alternate Mode, making it ideal for multi-monitor HMI and digital signage deployments. Networking is handled by Intel i210 and i226 controllers providing GbE and 2.5GbE connectivity respectively. Expansion options are extensive with four standalone M.2 slots including E-Key, B-Key with Nano-SIM support, and dual M-Key slots offering PCIe Gen5 and Gen4 connectivity for high-speed NVMe storage. Additional interfaces include two CAN-FD ports for industrial automation, four COM ports with RS-232/422/485 support, and MIPI-CSI camera inputs. The board incorporates EdgeBMC technology enabling out-of-band remote management and monitoring capabilities essential for distributed deployments. Operating temperature ranges span from standard commercial grades to extended industrial specifications of minus forty to eighty-five degrees Celsius, ensuring reliable operation in challenging environments. Target applications include industrial automation, AI-powered machine vision, medical imaging, transportation systems, and edge computing platforms requiring high-performance processing with comprehensive connectivity. Available from Recab, your Nordic partner for Advantech embedded computing solutions.
