The Advantech SOM-6886 is a COM Express Compact Type 6 module powered by Intel Core Ultra Series 3 processors (Panther Lake-H) with up to 16 cores and 65W TDP. This high-performance computer-on-module features Intel Arc Graphics with up to 192 EU, an integrated NPU delivering 50 TOPs, and total SoC AI performance up to 180 TOPs. It supports DDR5 memory up to 128GB at 7200 MT/s or LPDDR5x up to 64GB at 9600 MT/s, offers up to 20 PCIe Gen4 lanes, USB4, USB3, and MIPI-CSI connectivity. The module operates across extended temperatures from -40°C to 85°C and is AS9100 compliant for aerospace applications. Available from Recab, your Nordic partner for Advantech computer-on-module solutions.

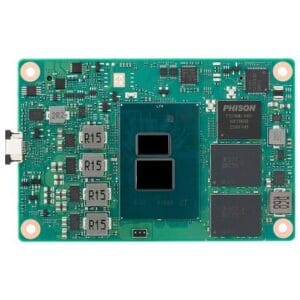

The Advantech SOM-7533/R is a COM Express Mini Type 10 computer-on-module featuring Intel Core-i, Pentium, Celeron, and Atom x7000 series processors based on Alder Lake-N and Amston Lake architectures. This compact module supports single-channel LPDDR5 memory up to 16GB with IBECC, 2.5GbE with TSN capability, and multiple I/O expansion including PCIe Gen3, USB 3.2 Gen2, and SATA 3.0. Optional onboard eMMC storage up to 64GB and TPM 2.0 enhance embedded system designs. Operating temperature ranges from standard 0 to 60°C to extended -40 to 85°C for rugged applications. Available from Recab, your Nordic partner for Advantech computer-on-module solutions.

The EMBC-CECT6 by Advantech is a COM Express Compact solution engineered for mission-critical AI applications in harsh environments. Featuring 13th Generation Intel Core i7 processor with MXM GPU support, 64GB dual-channel LPDDR5 on-board memory, and 1TB on-board NVMe storage with M.2 2242 expansion capability. This rugged computing platform operates across wide temperature ranges from -40°C to 85°C and accepts 9-15V input voltage while meeting MIL-STD-202H shock and vibration standards. The modular design enables quick CPU and GPU performance upgrades with customizable I/O board functions. Available from Recab, your Nordic partner for Advantech embedded computing solutions.

The Advantech SOM-5871 is a COM Express Basic Module Type 6 featuring AMD Ryzen Embedded V1000 series processors with Vega GPU graphics supporting quad independent 4K displays. This high-performance module offers dual channel DDR4 memory up to 32GB with ECC support, extensive I/O including PCIe x8, 6 PCIe lanes, USB 3.1, SATA III, and optional TPM 2.0 security. Operating temperature options range from standard 0 to 60°C to extended -40 to 85°C for industrial deployments. The module supports iManager and WISE-PaaS/DeviceOn for embedded management. Available from Recab, your Nordic partner for Advantech Computer On Module solutions.

The Advantech SOM-5883 is a high-performance COM Express Basic Type 6 module featuring Intel 11th Gen Core processors (Tiger Lake-H) with up to 8 cores and 16 threads. This compact module delivers exceptional computing power with Intel Iris Xe graphics supporting quad independent 4K displays, dual-channel DDR4 memory up to 128GB with ECC support, and advanced I/O including PCIe Gen4 x16, USB 3.2 Gen2, 2.5GbE Ethernet, and SATA3. The SOM-5883 includes TPM 2.0 security protection and optional onboard NVMe SSD for fast, vibration-resistant storage. Operating temperature ranges from standard 0-60°C to extended -40 to 85°C for demanding industrial applications. Available from Recab, your Nordic partner for Advantech computer-on-module solutions.

The Advantech SOM-5885 is a COM Express Basic Type 6 module powered by Intel Core Ultra processors (Meteor Lake U/H) with up to 16 cores and 22 threads. It features Intel Xe LPG graphics with up to 128 execution units supporting four independent 4K displays, dual-channel DDR5 5600MT/s memory up to 96GB, and comprehensive I/O including 2.5GbE, PCIe Gen4, USB4, USB 3.2 Gen2, and SATA 3.0. The module supports dual BIOS failsafe, TPM 2.0, and Advantech’s iManager and Wise-DeviceOn software APIs for embedded system management. Available from Recab, your Nordic partner for Advantech computer on module solutions.

The Advantech SOM-5886 is a COM Express Basic Type 6 computer-on-module powered by Intel Core Ultra Series 3 (Panther Lake) processors with up to 16 cores and 20 threads. This high-performance module features an integrated Intel ARC GPU with up to 12Xe cores supporting quad independent 4K displays, plus a dedicated NPU delivering up to 50 TOPS for AI acceleration. Supporting dual-channel DDR5-7200 memory up to 128GB, the SOM-5886 offers extensive connectivity including 2.5GbE, PCIe Gen4, USB4, USB 3.2 Gen2, and SATA 3.0. With standard and extended temperature options available, this module suits demanding embedded applications requiring AI processing and graphics performance. Available from Recab, your Nordic partner for Advantech computer-on-module solutions.

The Advantech SOM-5897 is a COM Express Basic Type 6 module featuring 6th Generation Intel Xeon, Core i7/i5/i3, and Celeron processors with QM170 or CM236 chipsets. It supports dual-channel DDR4 2133 memory up to 32GB, Intel Gen 9 HD Graphics P530, and extensive I/O including 8 PCIe x1 Gen3 lanes, 4 SATA III ports, 4 USB 3.0, and 8 USB 2.0 ports. With optional TPM 2.0 security, extended temperature variants from -40 to 85°C, and support for triple display configurations, this module delivers high-performance computing for demanding embedded applications. Available from Recab, your Nordic partner for Advantech Computer on Module solutions.

The SOM-5898 from Advantech is a COM Express Basic Module Type 6 featuring 7th Generation Intel Xeon and Core processors with quad or dual core configurations. This high-performance module supports dual channel DDR4 2400 memory up to 32GB with optional ECC, three independent symmetrical displays up to 4K resolution, and flexible I/O including Gen3 PEG, PCIe, USB 3.0, and SATA3. The module offers extended temperature variants from -40 to 85°C for demanding industrial environments. With TPM 2.0 security, iManager support, and WISE-PaaS/RMM compatibility, it delivers enterprise-grade reliability for embedded applications. Available from Recab, your Nordic partner for Advantech Computer on Module solutions.

The Advantech SOM-5899 is a COM Express Basic Type 6 module featuring 9th and 8th generation Intel Xeon and Core processors with up to 6 cores and 45W TDP. This high-performance computer-on-module supports dual-channel DDR4 memory up to 96GB with optional ECC, delivers triple independent 4K displays, and provides extensive connectivity including 4 USB 3.1 Gen2 ports, 8 PCIe x1 lanes, and 4 SATA Gen3 ports. The module operates across standard 0 to 60°C or extended -40 to 85°C temperature ranges, making it ideal for demanding industrial, medical, and automation applications. Available from Recab, your Nordic partner for Advantech computer-on-module solutions.
