COM HPC

The SOM-DH3000 from Advantech is a comprehensive development board designed for COM-HPC Client pinout modules, supporting Size A, B, and C form factors. This development platform features extensive PCIe Gen5 expansion with one x16 slot and seven x4 slots, enabling high-bandwidth connectivity for demanding applications. It provides three DisplayPort outputs, one eDP interface, and supports 10/25 Gigabit Ethernet through an OCP mezzanine card connector. The board includes 2.5GBase-T RJ-45 ports, multiple USB 3.2 ports, SATA 3.0, MIPI CSI interfaces, and comprehensive debugging utilities including BIOS Port 80 and power state monitoring. Available from Recab, your Nordic partner for Advantech computer on module solutions.

The Advantech SOM-D580 is a high-performance COM-HPC Server Size D computer-on-module powered by Intel Xeon D-2700 processors featuring up to 20 cores and 118W TDP. This industrial-grade module supports quad-channel DDR4-2933 RDIMM or LRDIMM memory up to 512GB with ECC support, offering exceptional computing power for demanding edge applications. Key features include 32 PCIe Gen 4 lanes, 17 PCIe Gen 3 lanes, 4x 25GBASE-KR integrated Ethernet, TPM 2.0 security, and extended temperature operation from -40 to 85°C. The module supports iManager, Embedded Software APIs, and WISE-DeviceOn for comprehensive device management. Available from Recab, your Nordic partner for Advantech computer-on-module solutions.

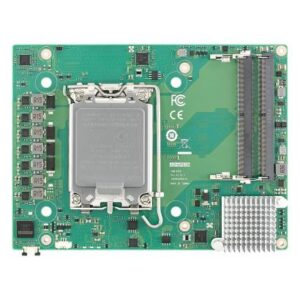

The Advantech SOM-C350/R/B is a high-performance COM-HPC Client Size C computer-on-module featuring Intel 12th and 13th Gen Core processors as well as the latest Core S2 series. This module delivers exceptional scalability with LGA 1700 socket CPUs and Intel R680E PCH, supporting up to 128GB DDR5 memory across four SO-DIMM sockets with ECC support. Key features include Intel Iris Xe graphics, PCIe Gen5 x16 expansion, dual 2.5GbE Ethernet, and USB 3.2 Gen2x2 connectivity. The module supports quad simultaneous independent displays and operates within 0 to 60°C temperature range. Ideal for industrial automation, edge computing, and embedded applications requiring high compute density. Available from Recab, your Nordic partner for Advantech computer-on-module solutions.

The Advantech SOM-A350/R is a COM-HPC Client Size A computer-on-module featuring Intel Core Ultra processors (Meteor Lake U/H and Arrow Lake-U/H) with up to 16 cores and 22 threads. This high-performance module delivers Intel Xe LPG graphics with up to 128 execution units supporting quad independent 4K displays, dual-channel DDR5 memory up to 96GB at 5600MT/s, and extensive I/O including 2.5GbE, PCIe Gen5, USB4, and SATA 3.0. The module supports dual BIOS for failsafe operation and integrates iManager for embedded software management. Designed for demanding embedded applications requiring advanced processing capabilities and modern connectivity. Available from Recab, your Nordic partner for Advantech computer-on-module solutions.

The SOM-DH5000 from Advantech is a development board designed for COM-HPC Server pinout modules, supporting both Size D (160x160mm) and Size E (200x160mm) configurations. It features rich PCIe expansion with one x16, two x8, and six x4 slots, plus two M.2 M Key slots for versatile connectivity. The integrated AST2500 BMC provides VGA output, dedicated NIC for IPMI, and iKVM functionality. High-speed networking is supported through 10G or 25G Ethernet via OCP mezzanine cards. Additional I/O includes four USB 3.1 Gen2, four USB 2.0, two SATA 3.0, and two COM ports. Available from Recab, your Nordic partner for Advantech Computer on Module solutions.
