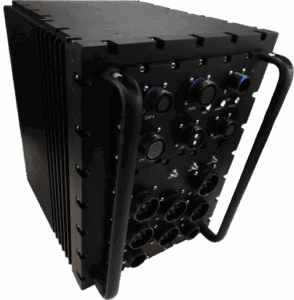

The VadaTech VTX352 is a four-slot 6U VPX hardened chassis designed for conduction-cooled modules in rugged deployed environments. It supports VITA 66.5 for optical connectivity and VITA 67.2 for RF on its configurable backplane, with all I/O accessed via MIL-STD-38999 style connectors. Featuring dual VPX Power Entry Modules and a backplane routable to customer specifications, the VTX352 is suited to defence, electronic warfare, and radar applications requiring a compact, mission-hardened OpenVPX platform. Available from Recab, your Nordic partner for VadaTech VPX chassis solutions.

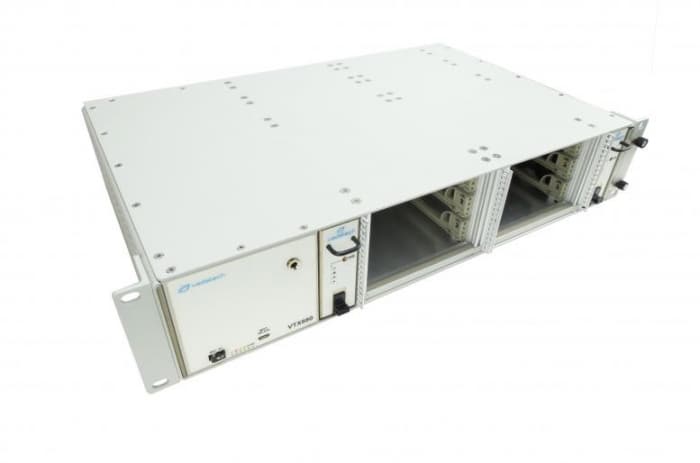

The VadaTech VTX880 is a 2U rackmount OpenVPX chassis accommodating up to six 3U VPX payload slots with full Rear Transition Module support, compatible with 0.8-inch, 0.85-inch, and 1.0-inch pitch modules. It features a VITA 46.0-compliant star-topology backplane, redundant push/pull side-to-side cooling at 18 CFM per slot, and power supply options spanning 800W/1200W AC or 650W/1200W DC. An optional JTAG Switch Module and VITA 46.11 Chassis Manager are available for system health management. Available from Recab, your Nordic partner for VadaTech VPX chassis solutions.
