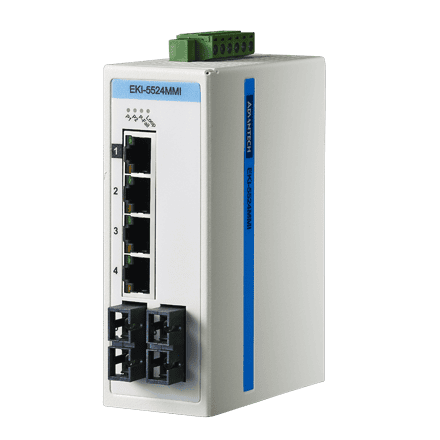

EKI-5524SS/MM – 4+2 Port Switch-ATEX

The EKI-5524SS/MM Series by Advantech represents a breakthrough in convergence switches, combining process control and IT networking management capabilities in a single industrial-grade device. This Fast Ethernet switch features 4 RJ45 copper ports and 2x100FX fiber optic ports, available in both single-mode configurations reaching up to 30km transmission distance and multi-mode variants supporting up to 2km. The series offers flexibility with SC and ST connector options to match existing infrastructure requirements. Central to the EKI-5524SS/MM design is its dual-protocol communication capability, using Modbus/TCP for seamless integration with SCADA software while simultaneously supporting SNMP for IT network management systems. This allows both control engineers and IT administrators full visibility and control over the device. Port-based Quality of Service enables deterministic data transmission by prioritizing critical traffic on designated ports. The switch delivers a 1.2 Gbps switching capacity with a 2K MAC table size and 1Mbit packet buffer. IEEE 802.3az Energy Efficient Ethernet reduces power consumption during low traffic periods, while jumbo frame support up to 9216 bytes accommodates large data transfers. Built for harsh industrial environments, the EKI-5524SS/MM features an IP30-rated metal enclosure suitable for DIN-Rail or wall mounting. Extended temperature models operate reliably from -40 to 75°C, complemented by EMS Level 3 protection against electromagnetic interference. Redundant 12-48VDC wide-range power inputs with P-Fail relay output ensure high availability. Loop detection capability prevents network disruptions. Certified for Class 1 Division 2 and ATEX hazardous locations, the series is ideal for oil and gas facilities, manufacturing plants, transportation infrastructure, and utility substations requiring robust fiber connectivity. Available from Recab, your Nordic partner for Advantech industrial networking solutions.
