NRU-220S

NRU-220S/222S – NVIDIA Jetson AGX Orin AI NVR for Video Analytics by Neousys

The Neousys NRU-220S and NRU-222S are rugged fanless AI NVR platforms powered by NVIDIA Jetson AGX Orin, delivering 275 sparse TOPS INT8 inference and transcoding of up to twenty-two simultaneous 1080P streams for intelligent video analytics and surveillance. Offering two 2.5GbE ports, four IEEE 802.3at PoE+ GbE ports, dual front-accessible 2.5-inch SSD trays, M.2 NVMe, M.2 B key for 5G/4G, dual CAN 2.0, isolated DIO, and 8 to 48V DC ignition control, the NRU-222S variant adds M12 connectors for extreme shock and vibration environments. Available from Recab, your Nordic partner for Neousys AI edge computing solutions.
contct-now-icon (2) Get datasheet
Description

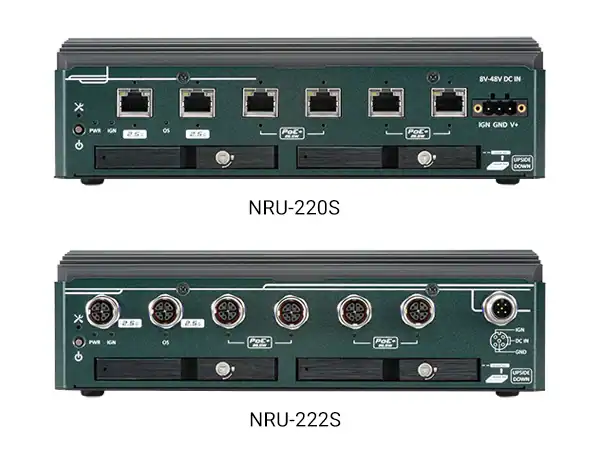

The Neousys NRU-220S and NRU-222S are high-performance rugged fanless AI NVR platforms built around the NVIDIA Jetson AGX Orin system-on-module, purpose-built for intelligent video analytics, predictive maintenance, and intelligent transportation system applications at the edge. Powered by the Jetson AGX Orin SOM with up to 2048 CUDA cores, 64 Tensor cores, and 2x NVDLA 2.0 engines, the NRU-220S series delivers 275 sparse TOPS INT8 AI inference and simultaneous transcoding of up to twenty-two 1080P video streams, making it one of the most capable compact AI NVR platforms available for real-time multi-camera inference. Available in 32GB and 64GB LPDDR5 configurations as well as the Jetson AGX Orin Industrial (JAOi) variant offering -40°C to 75°C operation, the platform covers a broad range of performance and environmental requirements. The NRU-220S uses standard RJ45 screw-lock connectors while the NRU-222S replaces these with M12 X-coded 8-pin connectors for extreme ruggedness in agricultural, construction, and mining machinery where conventional connectors would fail under continuous shock and vibration. Both models provide two 2.5GbE ports by Intel I225 and four IEEE 802.3at PoE+ GbE ports with 100W total budget for powering IP cameras, alongside one USB 3.2 Gen2, two USB 2.0, one DisplayPort at 4K, one isolated RS-485, two RS-232 ports, two CAN 2.0 ports, and four-channel isolated DI and DO. Storage covers two front-accessible 2.5-inch 7mm SSD trays, one M.2 2280 NVMe PCIe Gen4 socket, and 64GB eMMC on the Orin SOM. Wireless expansion uses two mini PCIe sockets for WiFi and GNSS/LTE, and one M.2 3042/3052 B key with dual micro SIM for 4G/5G. The 8 to 48V DC input with ignition power control and Neousys’ patented damping bracket enable in-vehicle deployment, while EN 50155 (EN 50121-3) railway EMC certification extends the application scope to rail vehicles. Available from Recab, your Nordic partner for Neousys AI edge computing solutions.
Features
  • NVIDIA Jetson AGX Orin delivers 275 sparse TOPS INT8 and transcodes twenty-two simultaneous 1080P video streams
  • NRU-222S variant uses M12 X-coded Ethernet connectors for extreme ruggedness in shock and vibration environments
  • Four IEEE 802.3at PoE+ GbE ports with 100W total budget power IP cameras directly from the NVR platform
  • Two front-accessible 2.5-inch SSD trays plus M.2 NVMe Gen4 socket provide high-capacity edge storage expansion
  • Dual CAN 2.0 ports and four-channel isolated DI/DO enable direct in-vehicle and industrial sensor integration
  • EN 50155 railway EMC certification and 8 to 48V DC ignition control support rail and in-vehicle AI NVR deployment
Specifications
Processor NVIDIA Jetson AGX Orin
Memory 32GB/64GB LPDDR5
eMMC 64GB eMMC 5.1
Ethernet 6 x RJ45, 2 x 2.5GbE
USB 1x USB 3.2 Gen2, 2x USB 2.0
Power 8V to 48V DC Input
Dimension 230 x 173 x 66 mm
Weight 2.6 kg
Operating Temp -25°C to 70°C
Vibration MIL-STD-810H
  • Intelligent video analytics and AI NVR for surveillance and security deployments
  • Rail and vehicle-mounted AI inference with EN 50155 and ignition power control
  • Smart city and intelligent transportation system edge AI video processing
  • Agriculture, construction, and mining machinery rugged edge AI with M12 connectors
