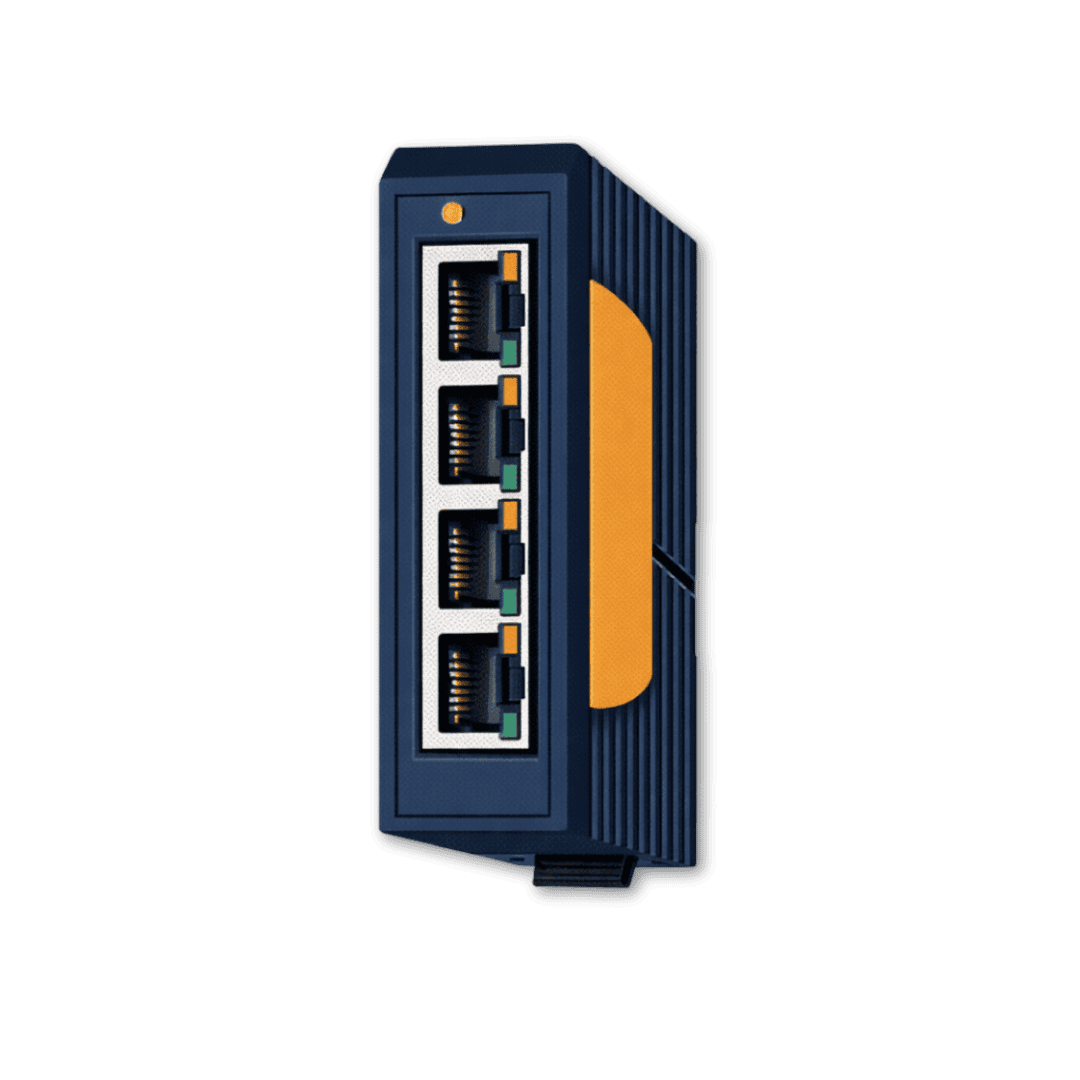

Unmanaged Switches

Need plug-and-play Ethernet connectivity without configuration? Recab’s unmanaged switches deliver reliable, no-configuration Ethernet expansion for industrial automation and control systems, designed for extended temperature ranges, electrical noise immunity, and vibration resistance.

Used in industrial automation panel networking, high-density copper and fiber uplink networks, and machine and factory Ethernet switching, this range includes switches from Hirschmann and Axiomtek.

Product listing

Filter

Manufacturer
Manufacturer
Application area
Application area
Features
Features
Standards / Certifications
Standards / Certifications
Form Factor / Mounting
Form Factor / Mounting
CPU
CPU
Data Range
Data Range
The EKI-5524SS/MM Series by Advantech is a 4-port plus 2x100FX fiber optic Fast Ethernet ProView Switch designed for industrial process control and IT networking management. Available in single-mode (up to 30km) and multi-mode (up to 2km) fiber variants with SC or ST connectors, it features Modbus/TCP for SCADA communication and SNMP for network management. Key specifications include Port-based QoS, IEEE 802.3az Energy Efficient Ethernet, jumbo frame support up to 9216 bytes, and redundant 12-48VDC power input with P-Fail relay output. The rugged IP30 metal enclosure supports DIN-Rail and wall mounting with wide temperature options from -40 to 75°C. Available from Recab, your Nordic partner for Advantech industrial networking solutions.
Compact, DIN Rail, Hazardous Location, Low Power, Modbus, Mounting Options, Redundant Power Input, Remote Management, Robust Design, Wide Temperature
The Axiomtek TEN300-0800-H is a hardened unmanaged Ethernet switch offering eight 10/100/1000BASE-TX ports in a compact 45 x 75 x 100 mm DIN rail housing. Operating from -40 to +75 °C with a 9 to 55 VDC input, reverse polarity protection, IEEE 802.1p QoS, and store-and-forward processing, it is designed for industrial automation, building infrastructure, and harsh environment networking where a simple, rugged Gigabit switch is needed without management overhead. Available from Recab, your Nordic partner for Axiomtek industrial Ethernet switch solutions.
Compact, DIN Rail, Fanless, Redundant Power Input, Robust Design, Rugged Design, Wide Temperature
The Hirschmann SSL20-8TX (SPIDER-SL-20-08T1999999SY9HHHH, part number 942132002) is a compact eight-port unmanaged industrial Fast Ethernet DIN rail switch from the SPIDER III family, providing eight auto-negotiating 10/100BASE-TX RJ45 ports in a 38 x 102 x 79mm IP30 housing at only 1.5W and 150g. With an MTBF of over 2.2 million hours and a 60-month guarantee, it offers reliable, low-power all-copper Ethernet switching for industrial automation, machine networking, and process control applications. Available from Recab, your Nordic partner for Hirschmann industrial Ethernet switch solutions.
DIN Rail, Fanless, Long Lifecycle, Rugged Design
The Hirschmann SPIDER-SL-20-06T1S2S299SY9HHHH (part number 942132013) is an eight-port unmanaged industrial Fast Ethernet DIN rail switch from the SPIDER III family, providing six 10/100BASE-TX RJ45 copper ports and two 100BASE-FX single-mode SC fibre ports, each supporting distances up to 30km at 1300nm. With dual SM fibre ports enabling ring or redundant long-reach topologies and consuming only 3.8W from 9.6V to 32V DC in an IP30 housing, it is ideal for large-scale industrial, utility, and infrastructure network applications. Available from Recab, your Nordic partner for Hirschmann industrial Ethernet switch solutions.
DIN Rail, Fanless, Long Lifecycle, Rugged Design
The Hirschmann SSL20-1TX/1FX-SM (SPIDER-SL-20-01T1S29999SY9HHHH, part number 942132006) is a compact unmanaged industrial Ethernet switch combining one 10/100BASE-TX RJ45 copper port and one 100BASE-FX single-mode fibre SC port, supporting fibre distances up to 30km at 1300nm. In an IP30 DIN rail housing weighing just 100g and consuming only 2.0W, it enables long-distance fibre media conversion in industrial automation, infrastructure, and process control installations. Available from Recab, your Nordic partner for Hirschmann industrial Ethernet switch solutions.
DIN Rail, Fanless, Long Lifecycle, Rugged Design
The Hirschmann SSL20-1TX/1FX (SPIDER-SL-20-01T1M29999SY9HHHH, part number 942132005) is an ultra-compact unmanaged industrial Ethernet switch with one 10/100BASE-TX RJ45 port and one 100BASE-FX multimode fibre SC port, supporting fibre distances up to 5km on 50/125µm cable. Weighing just 100g in an IP30 DIN rail housing and consuming only 2.0W, it is designed for tight cabinet spaces and cost-effective fibre media conversion in industrial automation, building technology, and process environments. Available from Recab, your Nordic partner for Hirschmann industrial Ethernet switch solutions.
DIN Rail, Fanless, Long Lifecycle, Rugged Design
The Hirschmann SSR40-8TX-PN is an unmanaged full Gigabit Ethernet DIN rail switch from the SPIDER III family, offering eight 10/100/1000BASE-T RJ45 ports with native PROFINET industrial protocol support in a compact 38 x 102 x 79 mm IP30 plastic housing. Consuming just 5.0 W and weighing 170 g, it delivers seamless plug-and-play integration into PROFINET-based automation systems, making it ideal for Siemens PLC environments, process manufacturing, and factory automation panels. Available from Recab, your Nordic partner for Hirschmann industrial Ethernet switch solutions.
DIN Rail, PROFINET
The Hirschmann SSR40-8TX is an unmanaged full Gigabit Ethernet DIN rail switch from the SPIDER III family, delivering eight 10/100/1000BASE-T RJ45 ports in a remarkably compact 38 x 102 x 79 mm IP30 plastic housing weighing just 170 g. Drawing only 5.0 W maximum and achieving an MTBF of over 4.2 million hours at 25 °C, it is built for reliable plug-and-play Gigabit switching in building automation, light industrial, machine networking, and control panel applications. Available from Recab, your Nordic partner for Hirschmann industrial Ethernet switch solutions.
DIN Rail
The Hirschmann SSR40-5TX-PN is an unmanaged full Gigabit Ethernet DIN rail switch from the SPIDER III family, featuring five 10/100/1000BASE-T RJ45 ports and native PROFINET industrial protocol support in an ultra-compact 26 x 102 x 79 mm IP30 plastic enclosure. Drawing only 4.0 W, it is purpose-built for plug-and-play deployment in PROFINET-based automation systems, PLC networks, and process control environments where Gigabit speed and protocol compatibility are both required. Available from Recab, your Nordic partner for Hirschmann industrial Ethernet switch solutions.
DIN Rail, PROFINET
The Hirschmann SSR40-5TX-IP is an unmanaged full Gigabit Ethernet DIN rail switch from the SPIDER III family, combining five 10/100/1000BASE-T RJ45 ports with native EtherNet/IP industrial protocol support in an ultra-compact 26 x 102 x 79 mm IP30 plastic housing. Weighing just 170 g and drawing only 4.0 W, it is designed for plug-and-play integration into industrial automation systems based on the EtherNet/IP protocol, including PLC networks and factory automation panels. Available from Recab, your Nordic partner for Hirschmann industrial Ethernet switch solutions.
DIN Rail, EtherNet/IP, Fanless
