Qseven

Searching for a compact, cost-efficient computer-on-module for low-power embedded or mobile applications? Recab’s Qseven modules are designed for space-constrained environments, balancing performance, power consumption, and functionality across various CPU architectures.

Used in industrial automation OEM embedded designs and digital signage, this range includes the Q7M310 module from Axiomtek.

Product listing

Filter

Manufacturer
Manufacturer
Application area
Application area
Features
Features
Standards / Certifications
Standards / Certifications
Form Factor / Mounting
Form Factor / Mounting
CPU
CPU
Data Range
Data Range

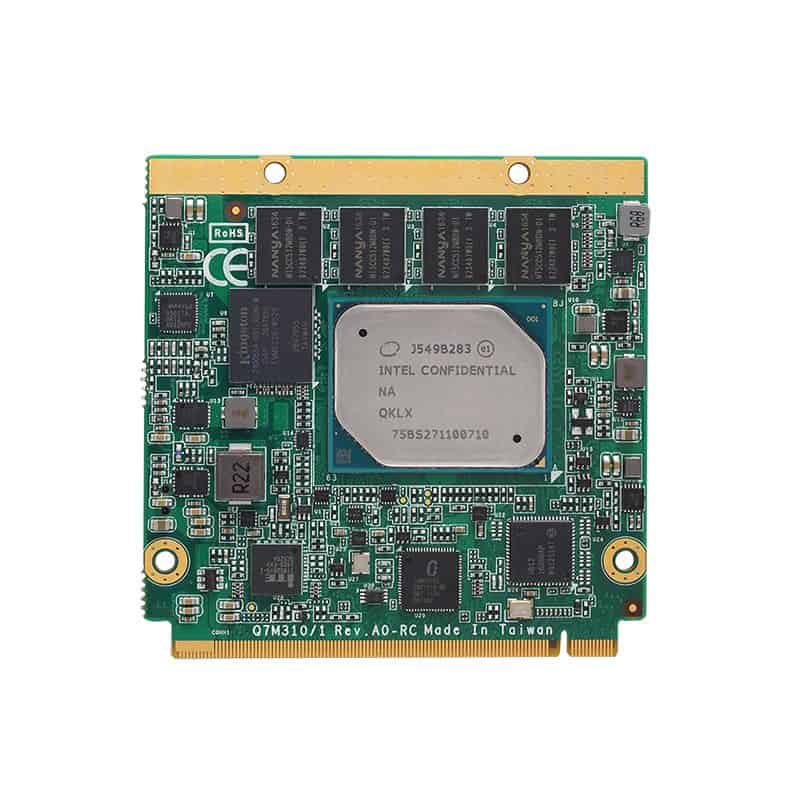

The Axiomtek Q7M310 is a compact 70 x 70 mm Qseven module featuring Intel Atom x5-E3930, x5-E3940, or x7-E3950 Apollo Lake processors with up to 4 GB onboard DDR3L memory, targeting industrial embedded OEM applications requiring a standardised compute-on-module architecture. Supporting four PCIe x1 lanes, dual SATA-600, USB 3.0 and USB 2.0, HDMI/DisplayPort/DVI and LVDS display interfaces, Gigabit Ethernet, 8-channel GPIO, and an industrial temperature range of -40°C to +85°C, it delivers versatile connectivity for automation, digital signage, and IoT gateway designs. Available from Recab, your Nordic partner for Axiomtek embedded module solutions.
Multiple Displays, Rugged Design

Need help choosing the right solution?

Our experts are here to help you find the best fit for your application.
