The PCIe-AE304bp by Neousys Technology is a wide-temperature, fanless, four-port Automotive Ethernet PCIe card designed for in-vehicle test, validation, and edge computing applications. Featuring four IEEE 802.3bw/bp 100/1000BASE-T1 ports via H-MTD connectors and powered by Marvell 88Q2221 transceivers, it provides direct connectivity for x86-based platforms interfacing with high-bandwidth sensors such as LiDAR and radar. The single-slot, half-length form factor with Gen2 x4 PCIe interface enables seamless integration without external media converters. Software-configurable master/slave operation and IEEE 1588 PTP support ensure flexible deployment and precise time synchronization. Available from Recab, your Nordic partner for Neousys Technology automotive networking solutions.

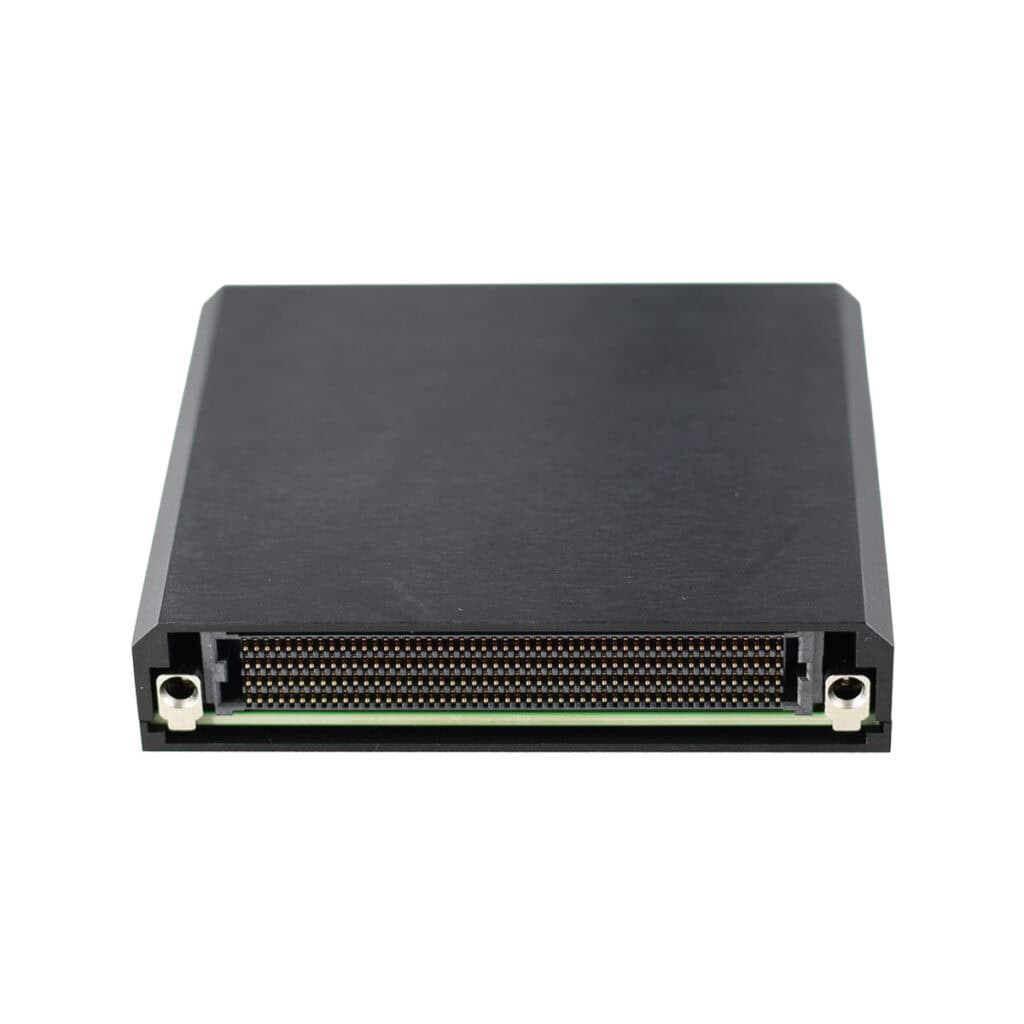

The TVNX210-10R from TEWS Technologies is a VITA 90 compatible 19 mm VNX+ Plug-In Module designed for high-performance I/O subsystems in defense and aerospace applications. This dual QMC carrier features two independent single-width QMC sites connected via a non-blocking PCIe Gen 3 switch, supporting x8 PCIe links from the expansion plane and dual x4 links from data planes. The module includes a 400-pin High Speed Data Connector for full QMC I/O access and a VITA 46.11 compliant management controller for health monitoring. With an extended operating temperature range of -40°C to +85°C and VS1 12V power, it delivers reliable performance in demanding environments. Available from Recab, your Nordic partner for TEWS Technologies embedded I/O solutions.

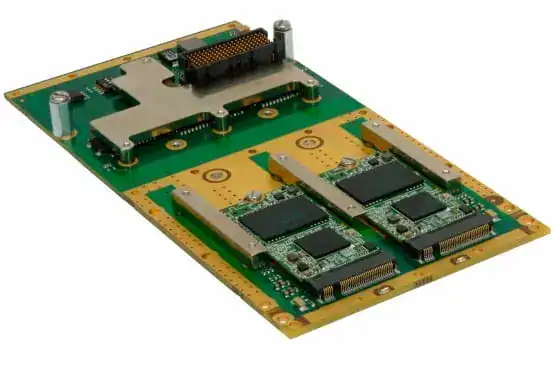

VITA 93 QMC is a next-generation modular mezzanine card standard developed by TEWS Technologies, offering unprecedented scalability, flexibility, and thermal management for embedded systems. The standard supports PCIe Gen 6, single to quad configurations with up to x16 lanes and 160 I/Os, and features both air-cooled and conduction-cooled designs using the same card architecture. With compact dimensions starting at 26 mm x 78.25 mm for single QMC, it addresses SWaP constraints in aerospace, defense, industrial, and transportation applications. Variable stacking heights and universal carrier compatibility simplify system integration. Available from Recab, your Nordic partner for TEWS Technologies embedded I/O solutions.

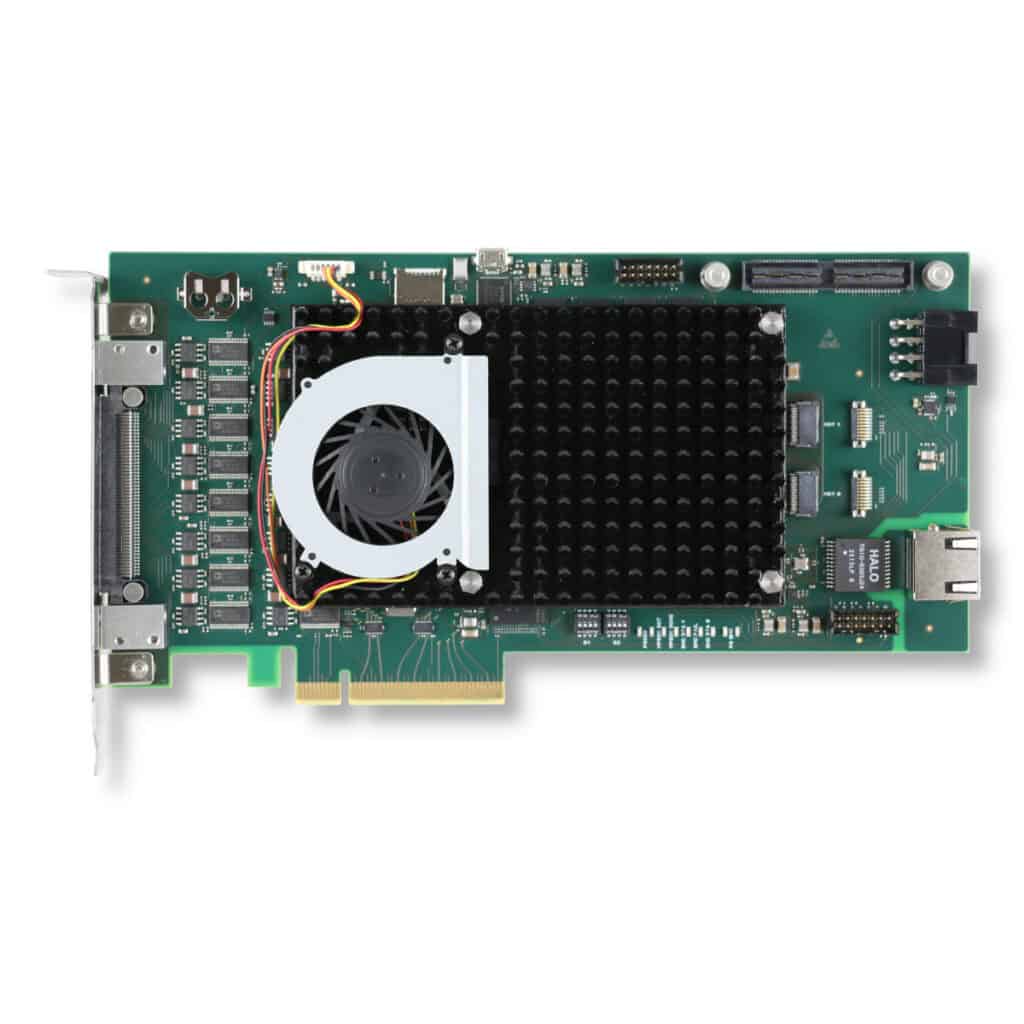

The TPCE646-10R from TEWS Technologies is a reconfigurable MPSoC PCIe card featuring an AMD Zynq UltraScale+ processor with 32 channels of 16-bit analog output and 8 channels of 16-bit differential analog input. This X8 PCIe Gen 3 module offers 5Msps ADC sampling, bipolar ±10V DAC outputs, 8GB total DDR4 memory across PL and PS banks, and extensive I/O including 64 rear digital lines and 8 Multi-Gigabit Transceivers on Samtec FireFly connectors. Factory calibrated analog channels and wide operating temperature range of -40°C to +60°C ensure reliable performance. Available from Recab, your Nordic partner for TEWS Technologies embedded I/O solutions.

The TEWS Technologies TPMC863 is a single-width 32-bit PMC module providing four high-speed synchronous and asynchronous serial communication channels implemented in FPGA logic, supporting EIA-232, EIA-422, EIA-449, EIA-530, EIA-530A, V.35, V.36, and X.21 physical interfaces with data rates up to 10 Mbit/s synchronous. With 512-longword FIFOs per channel, DMA bus mastering, front panel HD68 I/O, and rear P14 connectivity, it is built for defence, simulation, and industrial embedded systems requiring multi-protocol high-speed serial I/O. Available from Recab, your Nordic partner for TEWS Technologies embedded I/O solutions.

The TEWS Technologies TXMC639 is a single-width XMC module featuring a user-configurable AMD Kintex 7 FPGA with up to 16 differential 16-bit ADC input channels at 1.5 Msps, up to 8 single-ended 16-bit DAC output channels with ±10V programmable output, 32 digital TTL I/O lines, and 1 GB DDR3L SDRAM. With P14 and P16 rear I/O, four Multi-Gigabit Transceivers, and software support for Linux, Windows, VxWorks, QNX, and Integrity, it is built for defence, industrial signal processing, and real-time control applications. Available from Recab, your Nordic partner for TEWS Technologies embedded I/O solutions.

The TEWS Technologies TPCE636 is a half-length PCIe x4 module featuring a user-configurable Xilinx Kintex 7 FPGA with 16 x 16-bit differential ADC input channels at 5 Msps and 16 x 16-bit factory-calibrated DAC output channels with ±10V single-ended output. With 1 GB DDR3 SDRAM, 64 FPGA back I/O lines, four Multi-Gigabit Transceivers via Samtec FireFly, and software support for Linux, Windows, VxWorks, QNX, and Integrity, it is designed for high-speed signal processing, test and measurement, and real-time control in defence and industrial applications. Available from Recab, your Nordic partner for TEWS Technologies embedded I/O solutions.

The TEWS Technologies TPCE280 is a standard height, half-length PCI Express Revision 3.0 carrier card providing one XMC slot with a PCIe x8 Gen3 Redriver-enhanced link, front panel I/O, and independent P14 and P16 rear I/O — supporting selectable 12V or 5V XMC VPWR. Suited to process control, medical systems, telecommunications, and traffic control applications requiring flexible XMC I/O expansion on PCIe mainboards, it operates from -40 to +85 °C. Available from Recab, your Nordic partner for TEWS Technologies embedded I/O solutions.

The Kontron XMC403 is a dual 10 Gigabit Ethernet switched mezzanine card designed for high-speed embedded networking applications in defence, aerospace, and industrial computing. Built around the Intel X710-BM2 controller, it delivers two full-duplex 10GbE SFP+ ports over a PCIe Gen 3.0 x8 host interface with hardware-accelerated CPU offload. Supporting both optical fibre and direct-attach copper, the XMC403 complies with VITA 42.0 and IEEE 1386.1 and carries an MTBF of nearly 930,000 hours. Available from Recab, your Nordic partner for Kontron embedded computing solutions.

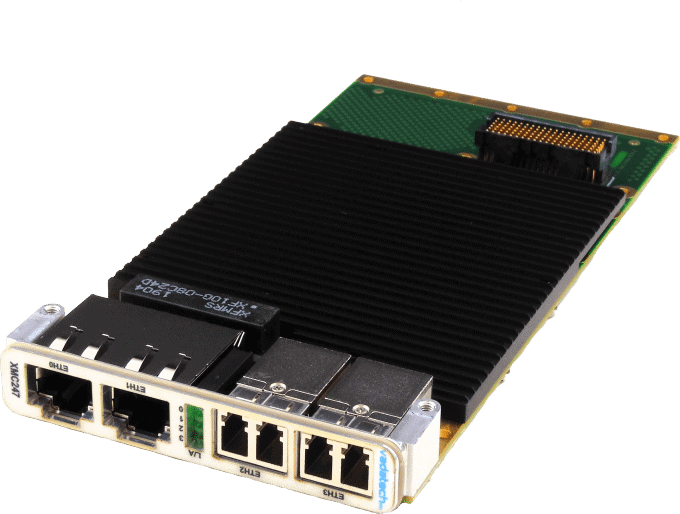

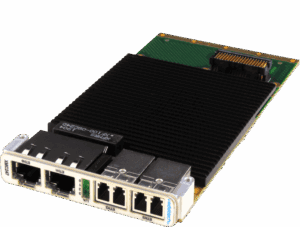

The VadaTech XMC247 is a single-width XMC mezzanine module delivering quad 10 Gigabit Ethernet connectivity to the host via PCIe x8 Gen3, using the Intel X710-TM4 MAC/PHY. Supporting BASE-T speeds from 100BASE-TX through 10GBASE-T and flexible I/O routing options including front-panel optical, front or rear RJ-45, and 10GBASE-KR via the XMC rear connector, the XMC247 is designed for embedded networking expansion in defence, radar, and communications applications. Air-cooled and conduction-cooled variants are available per ANSI/VITA 47. Available from Recab, your Nordic partner for VadaTech XMC networking solutions.
