VME

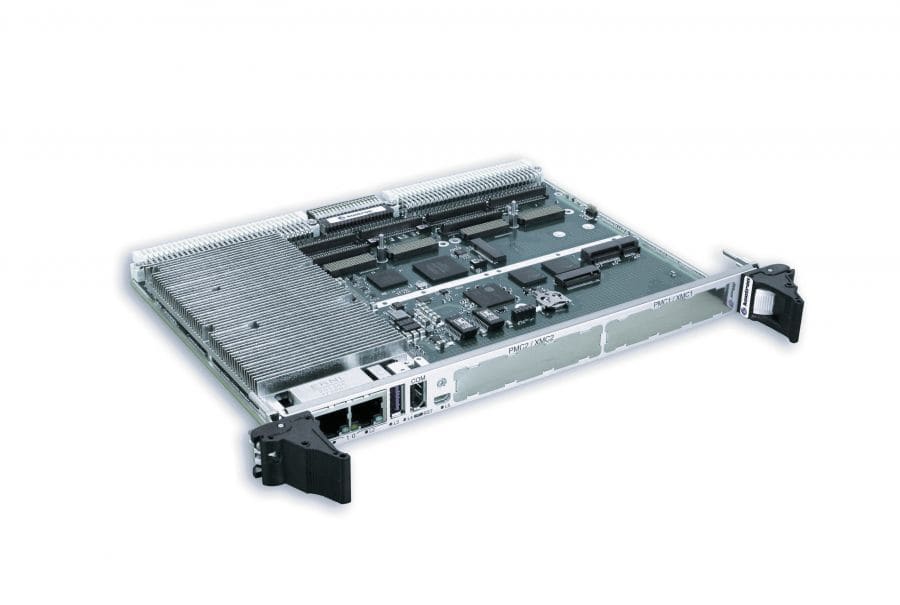

The Kontron VM6062 is a 6U VME single-slot server-class blade computer powered by the Intel Xeon Processor D-1508 (2-core/4-thread, 2.2 GHz) with up to 32 GB ECC DDR4 soldered memory, dual Gigabit Ethernet, USB 3.0, HDMI, and COM ports on the front panel, alongside dual PMC/XMC slots, dual M.2, and a mini-PCIe socket. Part of the Kontron Extended Life Cycle family with a 15-year minimum programme life, it is designed for defence, telecommunications, transportation, and industrial data-intensive VME applications. Available from Recab, your Nordic partner for Kontron embedded computing solutions.

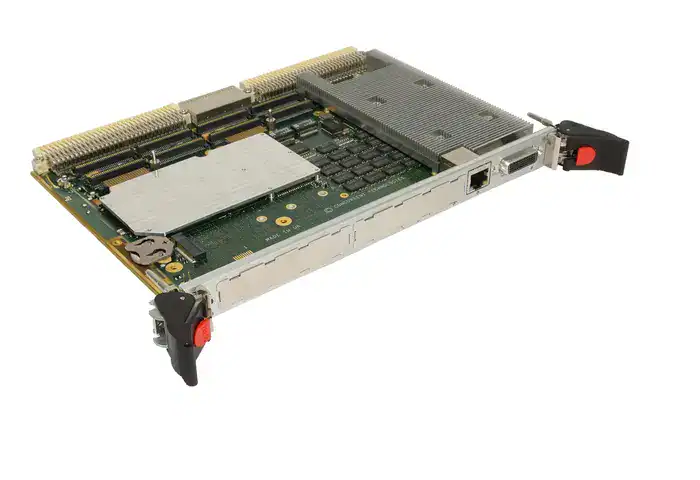

The Concurrent Technologies Rhea (VP ECx/msd) is a low-power 6U VME single board computer based on Intel Atom x7000 Series processors, available in 4-core and 2-core variants, designed for long life-cycle embedded applications. With 16 GB soldered DDR4 DRAM with in-band ECC, dual PMC/XMC expansion slots, four Gigabit Ethernet interfaces, SATA, USB 3.2, DisplayPort, GPIO, serial interfaces, TPM 2.0 security, and support for Linux and Windows, the Rhea VP ECx/msd delivers a rich I/O set within the established VME64x form factor. Available from Recab, your Nordic partner for Concurrent Technologies VME board solutions.

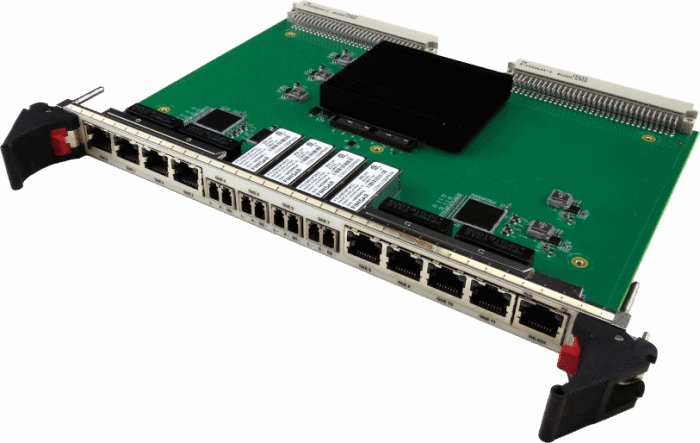

The VadaTech VME217 is a 6U single-slot VME managed Layer 2 Gigabit Ethernet switch designed for embedded defence, aerospace, and industrial computing applications. It delivers 8 ports of 10/100/1000 Ethernet via RJ-45 and 4 ports via SFF transceivers on the base board, with optional expansion to 24 ports via SFP on a double-slot configuration. Supporting 4K IEEE 802.1Q VLANs, QoS, spanning tree, and up to 8K MAC addresses, the VME217 is managed via HTTP and draws power directly from the VME bus backplane. Available from Recab, your Nordic partner for VadaTech VME networking solutions.
