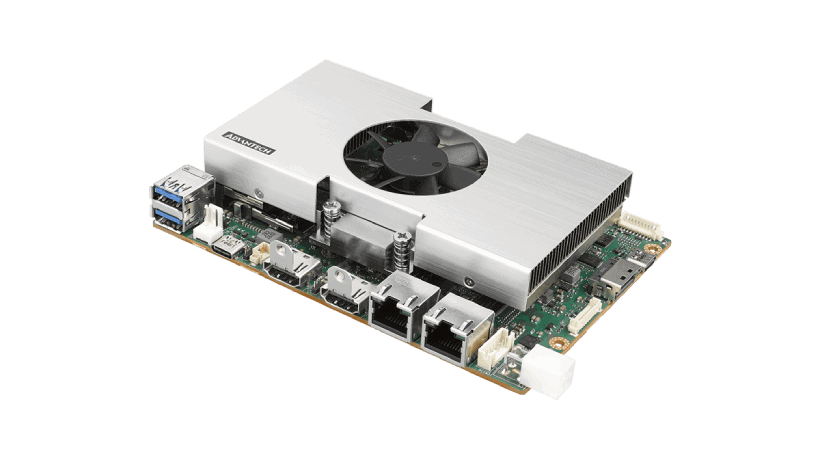

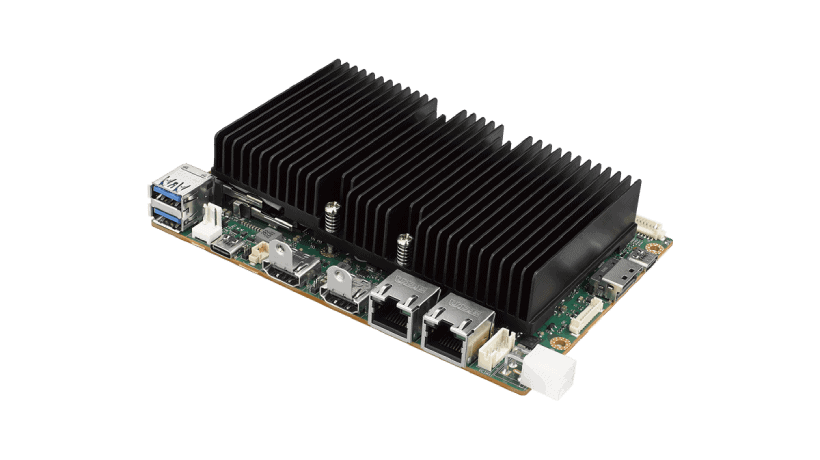

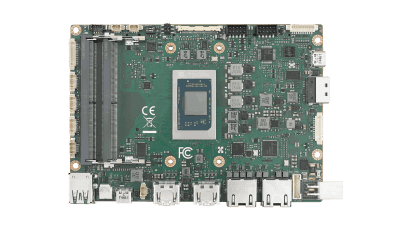

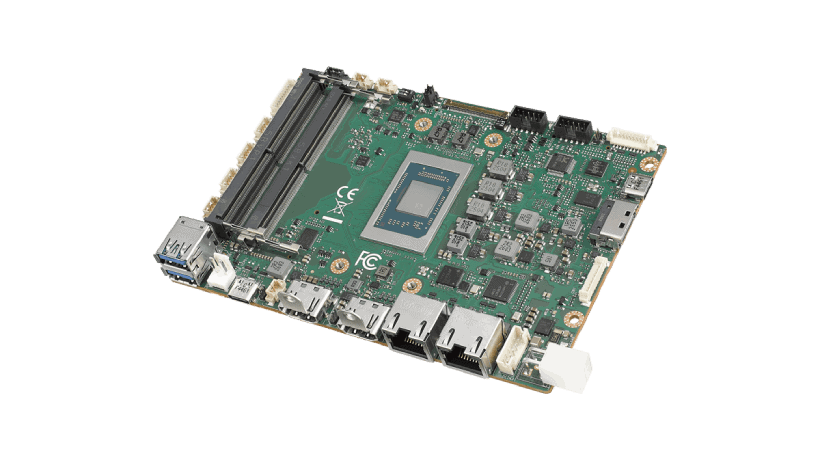

MIO-5380 – AMD Ryzen AI 3.5″ SBC with NPU by Advantech

The Advantech MIO-5380 represents a significant advancement in 3.5-inch single board computer technology, integrating AMD Ryzen AI Embedded P100 Series processors with up to 12 cores, 24 threads, and maximum frequencies reaching 5.1 GHz. The integrated NPU delivers up to 50 TOPs of AI processing power, making this platform exceptionally suited for edge AI applications, machine vision systems, and intelligent automation deployments. Supporting dual-channel DDR5-5600 memory up to 128GB with Sideband ECC ensures data integrity for mission-critical industrial applications. The MIO-5380 provides extensive display capabilities with four simultaneous independent outputs through eDP 1.4, dual HDMI 2.0b ports supporting 4K resolution at 60Hz, and two USB Type-C ports with DisplayPort Alt. Mode. Networking features include Intel i210 Gigabit Ethernet and Intel i226 2.5GbE with optional Power over Ethernet support. The board offers versatile expansion through four M.2 slots including E-Key for WiFi, B-Key for 4G/LTE modules, and dual M-Key slots for NVMe SSDs with RAID 0/1 support, plus an MCIO connector for additional PCIe connectivity on select SKUs. Industrial-grade features include two CAN-FD interfaces, four COM ports, discrete TPM 2.0, 8-bit GPIO, and comprehensive software API support through iManager 3.0. The EdgeBMC capability enables out-of-band management for remote monitoring and control. With operating temperature ranges from 0°C to 60°C standard and extended options from -40°C to 85°C with industrial SKUs, the MIO-5380 serves demanding environments in factory automation, transportation, medical equipment, and defense applications. Available from Recab, your Nordic partner for Advantech single board computer solutions.
