942302004

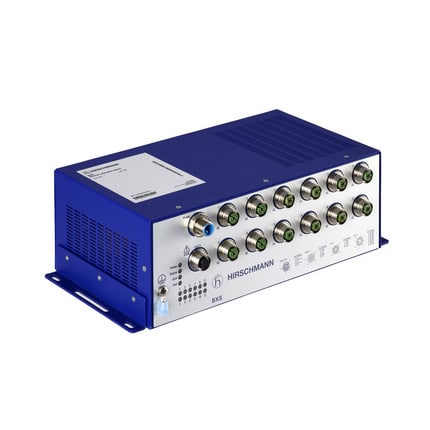

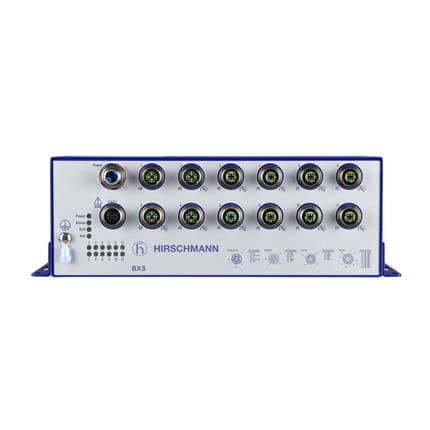

BXS32-12TX-EECC-HV-2A – M12 Railway PoE+ Switch 72-110 VDC by Hirschmann, a Belden Brand

The Hirschmann BXS32-12TX-EECC-HV-2A is a managed IP40 PoE+ switch for onboard railway and bus applications, offering 12 M12 ports — 4 Gigabit Ethernet X-coded and 8 Fast Ethernet D-coded, all PoE-capable — with up to 60W PoE budget at 70°C and a 72–110 VDC high-voltage supply. Running HiOS 2A with PROFINET, TSN, and IEC 62443-4-2 Security Level 2 support, it powers and connects onboard devices in demanding transport environments. Available from Recab, your Nordic partner for Hirschmann railway switch solutions.
contct-now-icon (2) Get datasheet
Description
The Hirschmann BXS32-12TX-EECC-HV-2A is a managed industrial PoE+ switch from the BXS32 railway series, built for onboard deployment in trains and buses where devices such as IP cameras, passenger information displays, and access control panels must be both connected and powered over the same M12 cable infrastructure. The switch provides 12 ports in total — 4 x Gigabit Ethernet X-coded M12 ports, of which 3 support PoE, and 8 x Fast Ethernet D-coded M12 ports, all 8 supporting PoE — delivering up to 60W total PoE budget even at the full 70°C operating temperature, a significant capability for onboard systems running in thermally challenging environments. The high-voltage supply input of 72–110 VDC suits standard traction power systems used in heavy rail and metro vehicles. Running HiOS 2A Layer 2 advanced software, the BXS32-12TX-EECC-HV-2A supports TSN 802.1Qbv on interfaces 1/1–1/3, HIPER-Ring, MRP (IEC 62439-2), MSTP, Sub Ring Manager, and LACP redundancy. Industrial protocol coverage includes PROFINET, EtherNet/IP, IEC 61850, and Modbus TCP. Time synchronisation is provided via PTPv2 Boundary Clock, PTPv2 Transparent Clock, 802.1AS, and SNTP. The switch holds EN 50155, EN 45545 HL3, EN 50121-4, and NEMA TS2 transport certifications together with IEC 62443-4-2 Security Level 2 cyber security certification. Its wall-mounted IP40 metal enclosure operates across -40°C to +70°C at altitudes up to 3000 m. Available from Recab, your Nordic partner for Hirschmann railway switch solutions.
Features
  • Eleven PoE-capable M12 ports deliver up to 60W total PoE budget maintained at full 70°C operation
  • Twelve M12 ports split across four Gigabit X-coded and eight Fast Ethernet D-coded interfaces onboard
  • Operates on 72-110 VDC high-voltage supply suited to heavy rail and metro traction power systems
  • Certified to EN 50155, EN 45545 HL3, EN 50121-4, and NEMA TS2 for international transport markets
  • IEC 62443-4-2 Security Level 2 certified with TSN 802.1Qbv and PTPv2 precision time synchronisation
  • HiOS 2A provides HIPER-Ring, MRP, MSTP, and Sub Ring Manager redundancy for rolling stock networks
Specifications
Ports 4 x GE, 8 x FE
Voltage 72-110 VDC
Power 24.0W + 60W PoE
Weight 2.63 kg
Dimensions 282 x 143.6 x 91 mm
Temperature -40 to +70 °C
Humidity 1-95 %
Protection IP40
MTBF 437460 h
Housing Metal
  • Onboard train PoE networks powering IP cameras and passenger information displays via M12 cabling
  • Rolling stock access control and safety device infrastructure requiring PoE+ at high temperatures
  • Heavy rail and metro vehicles needing EN 50155 certified managed PoE switching on 72-110 VDC
  • Railway cyber security deployments requiring IEC 62443-4-2 Security Level 2 certified PoE equipment
