942132008

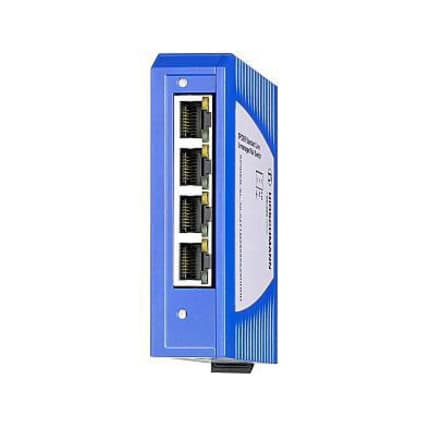

SSL20-4TX/1FX ST – 5-Port Unmanaged Switch with ST Fibre by Hirschmann, a Belden Brand

The Hirschmann SPIDER-SL-20-04T1M49999SY9HHHH (part number 942132008) is a compact five-port unmanaged industrial Ethernet switch from the SPIDER III family, offering four 10/100BASE-TX RJ45 copper ports and one 100BASE-FX multimode fibre port with ST connectors supporting distances up to 5km. Operating from 9.6V to 32V DC at only 2.4W in an IP30 DIN rail housing at 120g, it provides cost-effective plug-and-play copper and fibre connectivity for existing ST-connector fibre infrastructures in industrial and building applications. Available from Recab, your Nordic partner for Hirschmann industrial Ethernet switch solutions.
contct-now-icon (2) Get datasheet
Description
The Hirschmann SPIDER-SL-20-04T1M49999SY9HHHH is a five-port unmanaged industrial Fast Ethernet switch from the SPIDER III family, configured with four auto-crossing, auto-negotiating, auto-polarity 10/100BASE-TX RJ45 copper ports and one 100BASE-FX multimode fibre port using ST connectors rather than the SC connectors found on closely related models. Part number 942132008, this variant is specifically suited to installations where existing fibre cabling infrastructure uses ST-type terminations, which remain prevalent in older factory automation, building management, and process plant networks across Scandinavia and continental Europe. Multimode fibre coverage extends to 5000m on 50/125µm cable with an 8dB link budget at 1310nm, and 4000m on 62.5/125µm cable with an 11dB link budget at 1300nm, providing full coverage for typical plant and campus distances. Store-and-forward switching with plug-and-play auto-negotiation on all ports requires no configuration tools, minimising installation time. Power input is via a 3-pin terminal block accepting 12/24V DC at 9.6V to 32V DC, with a maximum consumption of 2.4W and 100mA at 24V. The operating temperature spans 0°C to +60°C, and the MTBF is 2,286,711 hours under Telcordia methodology. The compact IP30 DIN rail plastic housing measures 26 x 102 x 79mm and weighs 120g. Industrial EMC immunity to IEC 61000-4-2 through 61000-4-6, vibration compliance to IEC 60068-2-6, and shock compliance to IEC 60068-2-27 are included, alongside CE, FCC Class A, EN61131, and cUL 61010-1/61010-2-201 approvals. A 60-month guarantee applies. Available from Recab, your Nordic partner for Hirschmann industrial Ethernet switch solutions.
Features
  • Four auto-negotiating 10/100BASE-TX RJ45 ports and one 100BASE-FX multimode ST fibre port combine local copper access switching with fibre uplink for ST-connector fibre installations.
  • ST fibre connector compatibility makes this variant the ideal choice for integrating with existing factory and building automation fibre cabling using the widely deployed ST standard.
  • Multimode fibre reach up to 5000m on 50/125µm cable enables reliable Ethernet extension across large industrial plants, process facilities, and campus environments.
  • 12/24V DC operation via 3-pin terminal block at only 2.4W maximum ensures minimal panel thermal contribution in space- and heat-constrained DIN rail cabinet installations.
  • MTBF of 2,286,711 hours under Telcordia methodology and a 60-month guarantee confirm exceptional long-term reliability suited to continuous industrial and process control applications.
  • CE, FCC Class A, EN61131, cUL 61010-1/61010-2-201, and full IEC 61000-4 EMC immunity with IEC 60068-2-6 vibration and IEC 60068-2-27 shock compliance ensure comprehensive industrial certification.
Specifications
Port 4 x 10/100BASE-TX, 1 x 100BASE-FX
Power 12/24 V DC (9.6 - 32 V DC)
Operating Temp 0-+60 °C
Storage Temp -40-+70 °C
Weight 120 g
Dimensions 26 x 102 x 79 mm
Protection IP30 plastic
Power Consumption Max. 2.4 W
MTBF 2.286.711 h
Current Max. 100 mA
  • Legacy ST fibre infrastructure integration with new copper Ethernet devices in factory automation
  • Industrial panel networking in process plants with existing ST-connector fibre cabling
  • Building management system Ethernet connectivity over installed ST-type multimode fibre
  • Machine networking access switching with ST fibre uplink to plant Ethernet backbone
