XMC247

XMC247 – Quad 10GbE BASE-T and Optics XMC Mezzanine Module by VadaTech

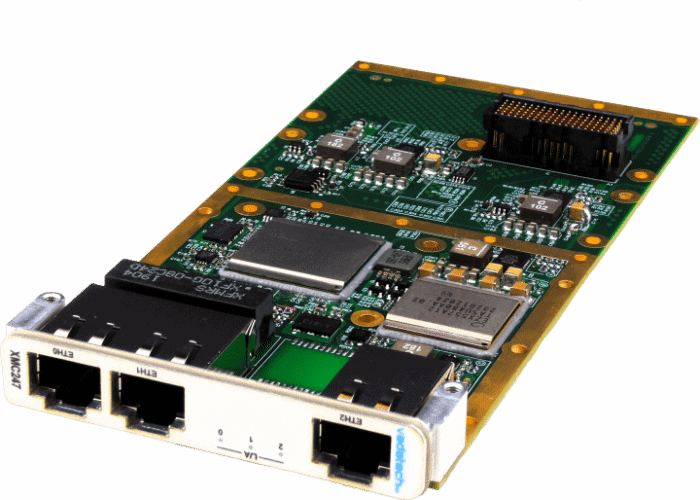

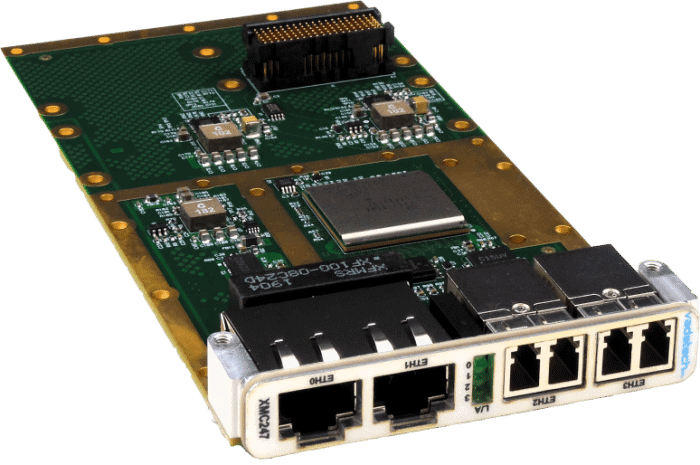

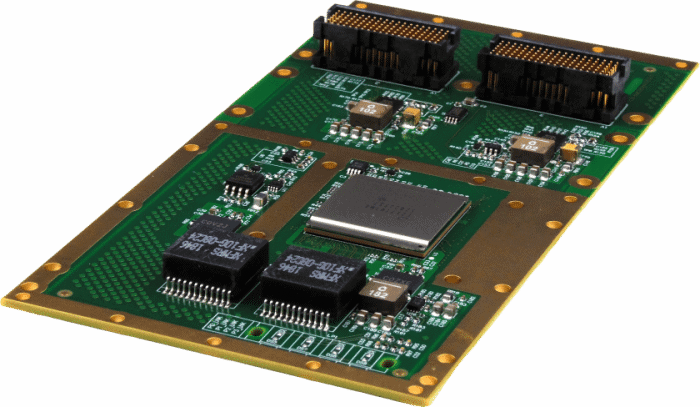

The VadaTech XMC247 is a single-width XMC mezzanine module delivering quad 10 Gigabit Ethernet connectivity to the host via PCIe x8 Gen3, using the Intel X710-TM4 MAC/PHY. Supporting BASE-T speeds from 100BASE-TX through 10GBASE-T and flexible I/O routing options including front-panel optical, front or rear RJ-45, and 10GBASE-KR via the XMC rear connector, the XMC247 is designed for embedded networking expansion in defence, radar, and communications applications. Air-cooled and conduction-cooled variants are available per ANSI/VITA 47. Available from Recab, your Nordic partner for VadaTech XMC networking solutions.
contct-now-icon (2) Get datasheet
Description
The VadaTech XMC247 is a single-width XMC mezzanine module providing quad 10 Gigabit Ethernet connectivity for embedded processing boards via a PCIe x8 Gen3 host interface, built around the Intel X710-TM4 MAC/PHY for proven, high-performance 10GbE operation. The module is designed for engineers seeking flexible high-speed network I/O expansion in OpenVPX, VME, or other XMC-hosting platforms used in defence, radar processing, electronic warfare, and rugged communications applications. BASE-T connectivity supports auto-negotiation across 100BASE-TX, 1G, 2.5G, 5G, and 10GBASE-T speeds. Four distinct I/O routing configurations are available: quad BASE-T via front I/O, dual BASE-T with dual optical LC-interface ports at the front panel, dual BASE-T at the front with dual 10GBASE-KR via the XMC P16 rear connector, and dual or quad BASE-T via the XMC rear I/O connector. This flexibility enables the XMC247 to serve both front-access lab and field environments and backplane-integrated deployments. Power consumption is 14W for the dual BASE-T plus dual optics configuration and 17W for quad BASE-T. Module management is provided via FRU ID and an onboard temperature sensor. Environmental options span air-cooled AC1 at 0°C to +55°C, extended AC3 at -40°C to +70°C, and conduction-cooled variants to CC4 at -40°C to +85°C per ANSI/VITA 47, with vibration tolerance from V2 to V3. Both VITA 42 and VITA 61 XMC connector options are available, along with optional conformal coating. Software support covers Linux, Windows, and VxWorks. VadaTech holds ISO9001:2015 and AS9100D certifications. Available from Recab, your Nordic partner for VadaTech XMC networking solutions.
Features
  • Quad 10GbE connectivity to the host via PCIe x8 Gen3 using the Intel X710-TM4 MAC/PHY delivers proven high-throughput Ethernet performance for embedded processing applications.
  • BASE-T interface supports auto-negotiating speeds from 100BASE-TX through 1G, 2.5G, 5G, and 10GBASE-T, providing flexible copper Ethernet connectivity to the front panel.
  • Four selectable I/O routing options include quad front BASE-T, dual front BASE-T with dual front optical LC ports, and mixed front/rear configurations with 10GBASE-KR via the XMC P16 connector.
  • Available in both VITA 42 and VITA 61 XMC connector variants with single-width form factor per the VITA 42.0 specification for compatibility across diverse host board designs.
  • Environmental options span air-cooled AC1 to extended AC3 and conduction-cooled CC4 (-40°C to +85°C) per ANSI/VITA 47, with V3 vibration tolerance for harsh deployments.
  • Onboard FRU ID and temperature sensor support module management, with Linux, Windows, and VxWorks operating system compatibility and AS9100D certified manufacturing.
Specifications
Architecture XMC 10GbE 4 Port 10GbE
Power 14W with Dual 10GBASE-T
Environmental See Ordering Options
LEDs LNK/ACT Indicators
Operating System Linux, Windows, VxWorks
MTBF MIL Hand book 217-F@ TBD hrs
Certifications ISO9001:2015, AS9100D
Warranty Two (2) years
  • Defence and radar embedded systems requiring quad 10GbE XMC network expansion
  • Electronic warfare platforms needing flexible front or rear 10GbE I/O routing options
  • OpenVPX and VME processor modules requiring high-speed mezzanine Ethernet connectivity
  • Rugged communications and ISR systems demanding multi-port 10GBASE-T or optical interfaces

Get datasheet
