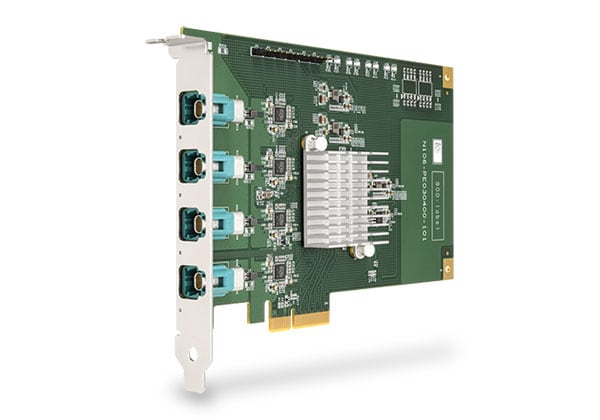

PCIe-AE304bp – 4-Port Automotive Ethernet PCIe Card by Neousys

The PCIe-AE304bp from Neousys Technology is a purpose-built Automotive Ethernet PCIe card engineered for demanding in-vehicle test, validation, and edge computing environments. This wide-temperature fanless solution integrates four IEEE 802.3bw/bp compliant 100/1000BASE-T1 ports through robust H-MTD Z-code connectors, delivering native Automotive Ethernet connectivity directly to x86-based test platforms and edge computing systems. At the heart of the card are four Marvell 88Q2221 Automotive Ethernet PHYs, enabling reliable high-bandwidth communication with sensors critical to ADAS and autonomous driving development, including LiDARs and radars. The adoption of BASE-T1 technology addresses the automotive industry’s need for reduced cable weight, simplified wiring, and efficient high-speed networking over single twisted-pair cabling supporting up to 15 meters of unshielded twisted pair cable. Designed as a single-slot, half-length PCIe add-on card requiring a Gen2 x4 lane signal, the PCIe-AE304bp installs directly into standard host systems, eliminating the need for external media converters and associated cabling complexity. The locking automotive-grade connectors prevent vibration-related disconnection issues common with traditional RJ45 solutions. Software-configurable master/slave modes for both 100BASE-T1 and 1000BASE-T1 provide deployment flexibility, while IEEE 1588 Precise Time Protocol support enables sub-microsecond time synchronization with connected sensors. Operating reliably from minus 25 to 70 degrees Celsius without active cooling, the card meets CE and FCC Class A EMC standards. This solution serves engineers developing ADAS test benches, autonomous driving validation systems, and vehicle electronics testing platforms using standard computing hardware. Available from Recab, your Nordic partner for Neousys Technology automotive networking solutions.
