TPCE646-10R – Reconfigurable MPSoC PCIe Card by TEWS Technologies

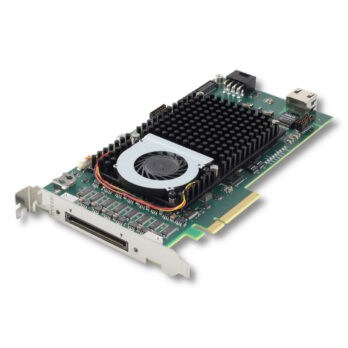

The TPCE646-10R from TEWS Technologies is a high-performance reconfigurable MPSoC module designed for demanding data acquisition and control applications requiring precise analog I/O combined with FPGA flexibility. Built around the AMD Zynq UltraScale+ XCZU11EG processor, this X8 PCIe Gen 3 compatible card delivers exceptional computational power with user-configurable logic for custom signal processing implementations. The module features 32 DAC output channels based on the AD5547 dual 16-bit DAC providing single-ended bipolar ±10V outputs with factory calibration, alongside 8 ADC input channels utilizing the LTC2323-16 dual 16-bit 5Msps differential-input converter supporting ±20Vpp differential voltage range. Memory resources include 4GB 64-bit DDR4 SDRAM for the PL bank and 4GB 64-bit DDR4 SDRAM for the PS bank, expandable to 8GB each. The extensive connectivity options encompass 64 MPSoC I/Os on a rear Samtec QTE connector configurable as single-ended LVCMOS18 or differential LVDS interfaces, 8 Multi-Gigabit Transceivers on Samtec FireFly connectors, four differential LVDS I/O lanes on the front panel, and a 10/100/1000 Mbps Ethernet interface. Configuration is handled via dual QSPI flash with micro SD card slot alternative and JTAG debugging support. The TPCE646-10R serves applications in industrial automation, test and measurement systems, defense electronics, and critical infrastructure where high-speed data acquisition combined with real-time processing capability is essential. Operating across -40°C to +60°C temperature range with 104000 hours MTBF ensures reliable deployment in harsh environments. Development is supported through AMD Vivado and Vitis tools. Available from Recab, your Nordic partner for TEWS Technologies embedded I/O solutions.
