XM 620/x01 – Dual M.2 PCIe SSD Carrier XMC Module by Concurrent Technologies

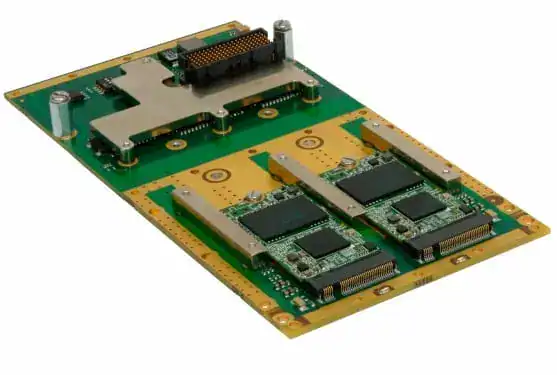

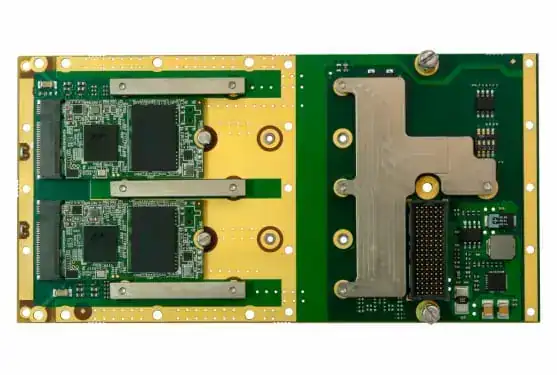

The Concurrent Technologies XM 620/x01 is a single-size XMC mezzanine card measuring 74 x 149mm, designed to add up to two M.2 PCIe NVMe SSD storage devices to any host board with an XMC expansion site. Each M.2 slot provides an independent x4 PCI Express interface with NVMe 1.3 compatibility, supporting PCIe Gen 1, 2, and 3 depending on the XMC connector type fitted — VITA 42 XMC connectors at Gen 2 or VITA 61 XMC 2.0 connectors at Gen 3. When used with a suitable software RAID driver, the two M.2 devices can be configured in RAID 0, 1, 5, or 10 for redundancy or performance. The XM 620/x01 is available across four build series to match the thermal and environmental requirements of the target deployment: N-Series for standard air-cooled operation from 0 to +55°C; E-Series for extended air-cooled operation from -25 to +70°C; K-Series for harsh air-cooled environments from -40 to +85°C with humidity sealant; and the rugged RC-Series for conduction-cooled applications, meeting VITA 47 Class CC4 from -40 to +85°C operating and VITA 47 Class C4 from -55 to +105°C non-operating, with conformal coating and operating altitude to 50,000 feet. Factory-fitted M.2 device options include no device, one device, or two devices — contact Concurrent Technologies sales for available memory capacities. The card complies with ANSI/VITA 42.0-2008, ships with retention screws and stiffener bars, and includes a front panel LED activity indicator. It is well suited to defence, aerospace, and industrial embedded computing platforms where high-capacity local NVMe storage is required in a compact mezzanine form factor. Available from Recab, your Nordic partner for Concurrent Technologies embedded storage solutions.
