942328003

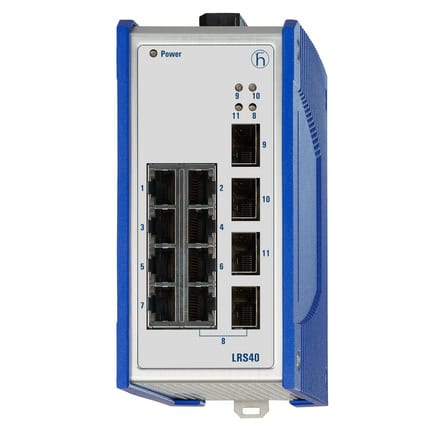

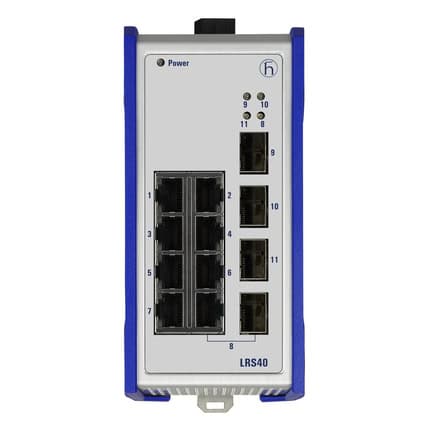

LRS40-7TX/3SFP/1C – Gigabit Lite Managed DIN Rail Industrial Switch by Hirschmann

The Hirschmann LRS40-7TX/3SFP/1C is a Gigabit lite managed DIN rail industrial Ethernet switch offering 7 Gigabit TX ports, 3 FE/GE SFP ports, and 1 combo FE/GE port in a compact IP30-rated housing. Running HiEOS Layer 2 software with MRP, RSTP, ERPS, VLAN, and QoS, it operates from 24 VDC across -40°C to +60°C. The full Gigabit TX access layer distinguishes it from the Fast Ethernet LRS30. Available from Recab, your Nordic partner for Hirschmann industrial switch solutions.
contct-now-icon (2) Get datasheet
Description
The Hirschmann LRS40-7TX/3SFP/1C is a Gigabit lite managed DIN rail industrial Ethernet switch from the LRS40 series, providing the same compact form factor and HiEOS Layer 2 feature set as the LRS30 platform but elevating all 7 copper access ports to full Gigabit speeds for bandwidth-intensive industrial automation and infrastructure applications. The switch offers 7 10/100/1000BASE-TX Gigabit copper ports for high-throughput device connections, 3 FE/GE SFP ports for flexible fibre or copper SFP-based Gigabit connectivity, and 1 combo port supporting both 10/100/1000BASE-TX and 100/1000BASE-FX SFP simultaneously, providing maximum topology flexibility in mixed-media network segments where both copper and fibre endpoints must be served from a single DIN rail device. Hirschmann’s HiEOS Layer 2 software delivers VLAN per 802.1Q, QoS port prioritisation, IGMP snooping, store-and-forward switching, RSTP per IEC 62439-1, MRP client, and ERPS and ERPS v2 ring redundancy for network resilience in ring topologies. Management is available via HTTPS, SSHv2, SNMP v1/v2/v3, CLI, and HiDiscovery. The 68 x 135 x 118 mm DIN rail housing operates from -40°C to +60°C with IP30 protection and a 24 VDC input consuming 8.2W. CE, FCC, EN 61131, and cUL 61010-1 approvals ensure broad regulatory compliance, while an MTBF exceeding 3.8 million hours and a five-year guarantee support confident long-term deployment in industrial cabinets. Available from Recab, your Nordic partner for Hirschmann industrial switch solutions.
Features
  • Seven 10/100/1000BASE-TX Gigabit copper ports deliver full Gigabit access on all copper connections.
  • Three FE/GE SFP ports and one combo port provide flexible fibre and copper Gigabit media options.
  • HiEOS Layer 2 software supports VLAN, QoS, IGMP snooping, and store-and-forward switching.
  • MRP client, RSTP, ERPS, and ERPS v2 ring redundancy protect against network link failure.
  • Compact 68 x 135 x 118 mm DIN rail housing at just 8.2W suits energy-efficient cabinet installations.
  • MTBF exceeding 3.8 million hours and five-year guarantee support reliable long-term deployments.
Specifications
Port 7x FE/GE TX, 3x FE/GE SFP, 1x Combo
Power 24 VDC
Consumption 8.2W
MTBF 3 867 661 h
Dimensions 68x135x118 mm
Weight 680 g
Protection IP30
Operating Temp -40-+60 °C
Certification CE, FCC, EN61131
Warranty 60 months
  • Industrial automation cabinet switching requiring full Gigabit TX access on a DIN rail device
  • Machine networking in manufacturing upgrading from Fast Ethernet to Gigabit access layer
  • Distributed infrastructure sites needing compact Gigabit lite managed DIN rail switching
  • Small industrial network installations requiring Gigabit VLAN, QoS, and ring redundancy support
