942291002

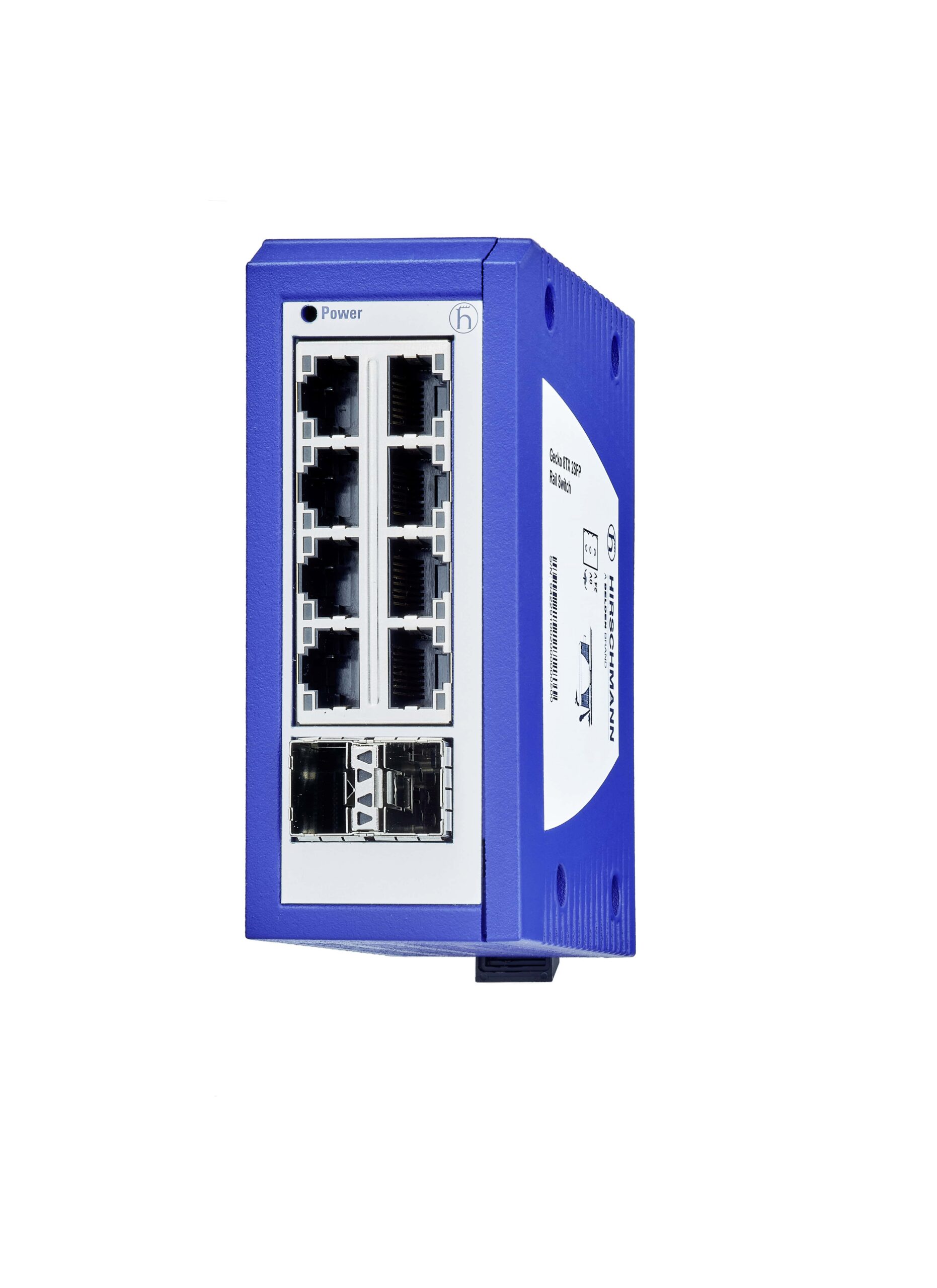

GECKO 8TX/2SFP – 8-Port Fast Ethernet Switch with SFP Uplinks by Hirschmann

The Hirschmann GECKO 8TX/2SFP is a fanless lite managed industrial DIN rail Ethernet switch combining 8x 10/100BASE-TX RJ45 ports with 2x 100/1000Mbps SFP uplink slots for flexible fibre or copper Gigabit backbone connectivity. It supports RSTP, MRP Client, PROFINET, SNMP v1/v2/v3 with SSH and SSL, and operates from -40 to +60°C at 5.3W with an MTBF of 7,146,019 hours. Available from Recab, your Nordic partner for Hirschmann industrial switch solutions.
contct-now-icon (2) Get datasheet
Description
The Hirschmann GECKO 8TX/2SFP is a fanless lite managed industrial DIN rail Ethernet switch that extends the GECKO 8TX platform with two additional 100/1000Mbps SFP uplink slots, enabling flexible Gigabit backbone connectivity via single-mode fibre, multimode fibre, long-haul transceivers, or copper SFP modules. The combination of 8x 10/100BASE-TX RJ45 access ports and 2x Gigabit SFP uplinks in a 45.4 x 110 x 82mm DIN rail housing makes the GECKO 8TX/2SFP an efficient aggregation switch for machine cells or zone switches that need both local device connectivity and high-speed uplink to the plant backbone network. Operating from -40 to +60°C at just 5.3W from an 18 to 32VDC supply, with an MTBF of 7,146,019 hours to Telcordia SR-332 Issue 3 at 25°C, it is built for long-life reliable deployment in demanding industrial environments. Redundancy is supported by RSTP (IEEE 802.1D-2004) and MRP Client for ring network integration. Switching capabilities include TOS/DSCP prioritisation, 4-queue QoS, VLAN support, Flow Control (802.3X), and static filter entries. Management uses an HTML5 web interface, TFTP, SNMP v1/v2/v3 with SNMPv3 authNoPriv, SSH, and SSL. Diagnostics provide Syslog, RMON (1) statistics, LLDP topology discovery, and log file. PROFINET protocol support and SNTP client time synchronisation complete the industrial profile. The IP30 enclosure is rated for operation up to 3,000 metres altitude and carries CE, FCC, and cUL 61010-1 approval with a 60-month guarantee. Available from Recab, your Nordic partner for Hirschmann industrial switch solutions.
Features
  • Two 100/1000Mbps SFP uplink slots accept fibre or copper Gigabit modules for flexible backbone connectivity options.
  • Eight 10/100BASE-TX RJ45 access ports combined with Gigabit SFP uplinks enable efficient zone aggregation switching.
  • Wide -40 to +60°C operating range and 7,146,019-hour MTBF confirm long-life suitability in harsh industrial environments.
  • RSTP and MRP Client redundancy allow integration into existing ring networks for improved industrial network resilience.
  • PROFINET support, SNTP client, HTML5 web management, SNMP v1/v2/v3, SSH, and SSL deliver a complete industrial management suite.
  • Compact 45.4 x 110 x 82mm DIN rail housing at 5.3W from 18 to 32VDC combines Gigabit uplink capability with minimal footprint.
Specifications
Ports 8x FE TX, 2x SFP
Voltage 18-32 V DC
Power 5.3 W
Temperature -40 to +60 °C
Dimensions 45.4 x 110 x 82 mm
Weight 223 g
Protection IP30
MTBF 7,146,019 h
Humidity 5-95 %
Certifications cUL 61010-1
  • Industrial machine cell aggregation switching with Gigabit SFP fibre or copper uplink to plant backbone
  • Factory automation zone switches requiring Fast Ethernet access ports with flexible Gigabit uplink options
  • PROFINET-enabled production networks combining local RJ45 device connectivity and high-speed fibre backbone uplinks
  • Long-distance industrial network links using single-mode or long-haul SFP transceivers in DIN rail switch form
