BRS50-20TX/4SFP-EEC

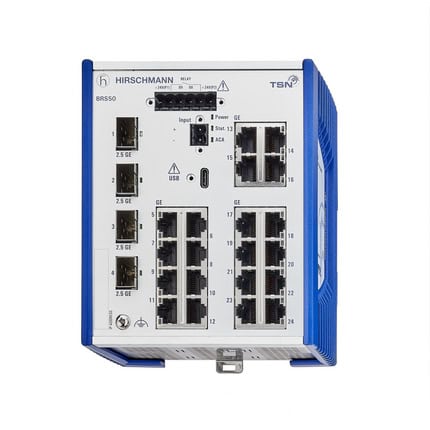

BRS50-20TX/4SFP-EEC – All-Gigabit TSN Managed Switch with 2.5G Uplinks by Hirschmann

The Hirschmann BOBCAT BRS50-20TX/4SFP-EEC is a fanless all-Gigabit managed industrial DIN Rail switch rated for -40 to +70°C, combining 20 x 10/100/1000BASE-TX RJ45 ports and four SFP slots supporting speeds up to 2.5 Gbit/s across 24 ports total. With TSN 802.1Qbv, PROFINET, EtherNet/IP, HIPER-Ring redundancy, and a hardened metal housing, it delivers maximum port density with scalable uplinks for the harshest environments. Available from Recab, your Nordic partner for Hirschmann industrial switch solutions.
contct-now-icon (2) Get datasheet
Description
The Hirschmann BOBCAT BRS50-20TX/4SFP-EEC is the Extended Environmental Class variant of the high-port-density 24-port BOBCAT switch with 2.5 Gbit/s SFP uplinks, combining 20 x 10/100/1000BASE-TX RJ45 copper ports with four SFP slots accepting 100 Mbit/s, 1 Gbit/s, or 2.5 Gbit/s fiber transceivers in a 1620 g metal DIN Rail housing rated from -40 to +70°C. Part number 942170072, it offers the highest copper port density in the EEC BRS50 range and the ability to scale backbone uplink bandwidth to 2.5 Gbit/s by simply changing the SFP transceiver — no hardware replacement required. This makes it the ideal switch for outdoor substations, railway depot networks, and heavy industrial facilities that need both maximum device connectivity and future-proof uplink bandwidth in a single temperature-hardened unit. The full BOBCAT software platform is retained including IEEE 802.1Qbv TSN, HIPER-Ring and MRP (IEC62439-2) redundancy, RSTP, LACP, IGMP snooping, QoS, and VLAN management. Industrial protocols span PROFINET, EtherNet/IP, IEC61850, and Modbus TCP. Security covers 802.1X, RADIUS, secure boot, signed firmware, and DoS prevention. Power draw is 20 W from dual redundant 12–24 VDC inputs. Management is via USB-C, HTML5, CLI, and SNMP v1/v2/v3. Available from Recab, your Nordic partner for Hirschmann industrial switch solutions.
Features
  • Four SFP slots support up to 2.5 Gbit/s for scalable backbone bandwidth without hardware changes at extreme temperatures
  • Extended Environmental Class metal housing ensures reliable -40 to +70°C operation in the most demanding sites
  • Twenty 10/100/1000BASE-TX RJ45 ports deliver the highest copper density in the EEC BOBCAT BRS50 range
  • TSN 802.1Qbv enables deterministic real-time Ethernet scheduling for time-sensitive industrial automation networks
  • HIPER-Ring and MRP IEC62439-2 redundancy maintain continuous availability following link or device failures
  • PROFINET, EtherNet/IP, IEC61850, and Modbus TCP industrial protocols ensure compatibility with all major automation platforms
Specifications
Ports 20x 10/100/1000BASE TX, 4x 100/1000/2500Mbit/s
Power 2 x 12 VDC ... 24 VDC
Consumption 20 W
Temperature -40-+70 °C
MTBF 1 634 939 h
Weight 1620 g
Dimensions 123 mm x 140 mm x 115 mm
Housing Metal
Protection IP30
Compliance IEC 60068-2-6, IEC 60068-2-27
  • Outdoor substations requiring maximum copper port density with scalable 2.5G SFP uplinks across wide temperatures
  • Railway depot networks combining high-port-count EEC switching with future-proof 2.5 Gbit/s backbone bandwidth
  • Heavy industrial facilities needing 24-port all-Gigabit EEC switching with TSN and PROFINET in a hardened housing
  • Large-scale process automation networks building scalable EEC backbone infrastructure with high copper device density

Get datasheet
