BRS20-24009999-TTDY99HHSESXX.X.XX

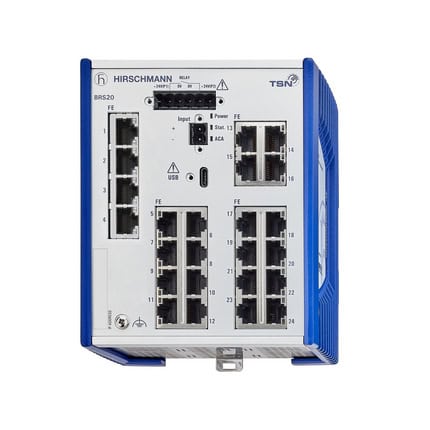

BRS20-24TX-EEC

The BRS20-24TX-EEC is a managed industrial switch designed for real-time Ethernet communication. It supports TSN, enabling expanded bandwidth using SFPs, from 1 to 2.5 Gigabit, essential for industrial networking.
contct-now-icon (2) Get datasheet
Description
The BRS20-24TX-EEC is a managed industrial switch optimized for DIN Rail installation. It facilitates real-time communication with comprehensive network management features. The switch has 24 Fast Ethernet ports, supports various protocols like EtherNet/IP and PROFINET, and is designed for robust operation in challenging environments with a wide temperature range.
Features
  • Fanless Design
  • 24 Ports Total
  • Wide Operating Temperature
  • Robust Security Features
  • EMC Compliance
  • Time Synchronization Support
Specifications
Power 2 x 12 VDC ... 24 VDC
Ports 24x 10/100BASE TX
Power Consumption 16 W
Operating Temp -40 to +70 °C
Housing Metal
Protection IP30
Weight 1.2 kg
MTBF 1 896 895 h
Relative Humidity 1-95 %
Certifications CE,FCC,cUL61010
  • Industrial Network Management
  • Real-Time Communication
  • Ethernet Network Backbone
  • DIN Rail Mounting
  • Protocol Support
  • Web-Based Management
