942999791

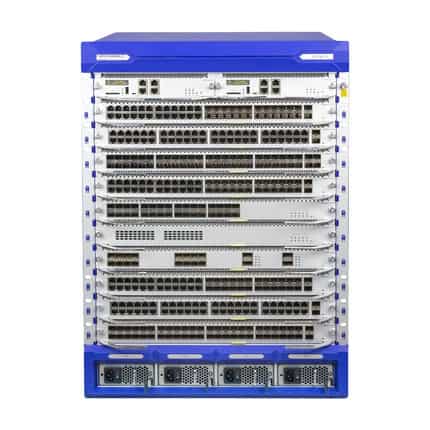

MTS8010-Chassis – MAMMUTHUS MTS8000 Modular Layer 3 Core Switch Chassis by Hirschmann IT

The Hirschmann IT MTS8010-Chassis is a 15U rack mount modular Layer 3 core switch chassis from the MAMMUTHUS MTS8000 series, featuring dual redundant engine slots, 8 media module slots, 2 switch fabric unit slots, up to 4 hot-swappable modular PSUs, and 2 mandatory hot-swappable redundant fan trays. It is the largest MTS8000 chassis for maximum-density data centre and campus core deployments from 0°C to +55°C. Available from Recab, your Nordic partner for Hirschmann IT core switch solutions.
contct-now-icon (2) Get datasheet
Description
The Hirschmann IT MTS8010-Chassis is the maximum-capacity modular chassis of the MAMMUTHUS MTS8000 series, providing 15U of rack space for 8 media module slots alongside 2 engine slots and 2 switch fabric unit slots, making it the platform of choice for the largest data centre core, enterprise campus backbone, and high-throughput industrial IT network deployments where maximum port density and interface flexibility are required in a single modular chassis. By doubling the media slot count compared to the MTS8006-Chassis, the MTS8010-Chassis can accommodate line cards across all 8 slots simultaneously, with the 2 dedicated switch fabric unit slots maintaining full internal switching performance as the chassis is fully populated. Dual redundant hot-swappable engine slots ensure continuous processing without single point of failure risk, and up to 4 modular redundant hot-swappable PSUs provide N+1 or N+N power redundancy scaled to the power demands of a fully loaded chassis. The 2 mandatory modular redundant fan trays are hot-swappable to prevent any planned maintenance downtime. At 441 x 666 x 434.8 mm and 32.48 kg empty chassis weight, the MTS8010-Chassis is the physically largest and most capable platform in the MTS8000 range, accepting 100 to 240 VAC input. CE, FCC, Common Criteria EAL 2+, CCC, and RoHS approvals confirm international compliance. All functional components are ordered separately. Available from Recab, your Nordic partner for Hirschmann IT core switch solutions.
Features
  • 15U rack chassis with 8 media module slots delivers the maximum port density in the MTS8000 series.
  • Two dedicated switch fabric unit slots maintain full switching performance at maximum chassis load.
  • Dual redundant hot-swappable engine slots eliminate single point of failure at the processing level.
  • Up to four modular redundant hot-swappable PSUs scale power redundancy to full chassis load.
  • Two mandatory hot-swappable redundant fan trays provide continuous thermal management.
  • CE, FCC, Common Criteria EAL 2+, CCC, and RoHS approvals confirm global deployment compliance.
Specifications
PortType 2 × engine slots, 8 × media module slots
EngineRedundancy Yes
PowerSupply 4 × modular redundant PSUs
OperatingVoltage 100-240VAC, 50-60HZ
Humidity 5% to 95%
OperatingTemp 0-+55 °C
StorageTemp -40-+70 °C
Weight 32.48 kg
Width 441 mm
Height 666 mm
  • Maximum-density data centre core switching with 8 media slots and dual engine redundancy
  • Large enterprise campus backbone requiring highest port density in a single modular chassis
  • High-throughput industrial IT core network with modular interface and PSU flexibility
  • Scalable network core infrastructure supporting future media module expansion up to 8 slots
