MTS8006-Chassis – MAMMUTHUS MTS8000 Modular Layer 3 Core Switch Chassis by Hirschmann IT

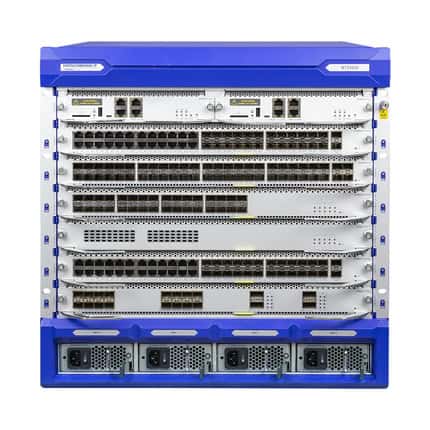

The Hirschmann IT MTS8006-Chassis is an 11U rack mount modular Layer 3 core switch chassis from the MAMMUTHUS MTS8000 series, with dual redundant engine slots, 4 media module slots, 2 switch fabric unit slots, up to 4 hot-swappable modular PSUs, and 2 mandatory hot-swappable redundant fan trays. It provides a mid-size scalable core switching platform for data centre and campus infrastructure from 0°C to +55°C. Available from Recab, your Nordic partner for Hirschmann IT core switch solutions.
contct-now-icon (2) Get datasheet
Description
The Hirschmann IT MTS8006-Chassis is the mid-size 11U rack mount modular chassis of the MAMMUTHUS MTS8000 series, expanding the MTS8003 platform with 4 media module slots and the addition of 2 dedicated switch fabric unit slots for internal switching capacity that scales with the installed media module population, making it the appropriate platform for data centre and campus core deployments that require greater port density and throughput than the 3-slot MTS8003 chassis can accommodate. The chassis houses 2 engine slots for fully redundant hot-swappable processing engines, 4 media module slots for interchangeable line cards covering copper, fibre, 10G, and higher-speed interfaces, 2 switch fabric unit slots for dedicated internal fabric modules that distribute switching capacity across all media slots, and up to 4 modular redundant hot-swappable PSUs for N+1 or N+N power redundancy. Two mandatory modular redundant fan trays ensure continuous thermal management without any planned service interruption. At 441 x 488 x 434.8 mm and 26.8 kg empty chassis weight, the MTS8006-Chassis occupies 11U of standard rack space and accepts 100 to 240 VAC input. CE, FCC, Common Criteria EAL 2+, CCC, and RoHS approvals confirm broad international compliance. Engines, media modules, switch fabric units, hybrid cards, PSUs, fan trays, and SFPs are all ordered separately. Available from Recab, your Nordic partner for Hirschmann IT core switch solutions.
Features
  • 11U rack chassis with dual redundant engine slots and 4 media module slots for high port density.
  • Two dedicated switch fabric unit slots scale internal switching capacity across all media modules.
  • Up to four modular redundant hot-swappable PSUs provide N+1 or N+N power path resilience.
  • Two mandatory hot-swappable redundant fan trays maintain continuous thermal management.
  • Modular design allows all components including engines, fabric, and PSUs to be ordered separately.
  • CE, FCC, Common Criteria EAL 2+, CCC, and RoHS approvals for international deployment compliance.
Specifications
Type MTS8006-Chassis
Width 441 mm
Height 488 mm
Depth 434.8 mm
Weight 26.8 kg
Power 100-240VAC, 50-60HZ
Humidity 5% to 95%
Temperature 0-+55 °C
Storage Temp -40-+70 °C
Engine Redundancy Yes
  • Mid-size data centre core switching with dedicated switch fabric units and dual engine redundancy
  • Campus backbone infrastructure requiring higher port density than compact modular chassis allow
  • Large enterprise core network with scalable media module line cards and hot-swap PSU redundancy
  • Industrial IT core switching deployments needing modular architecture for future bandwidth expansion
