942999801

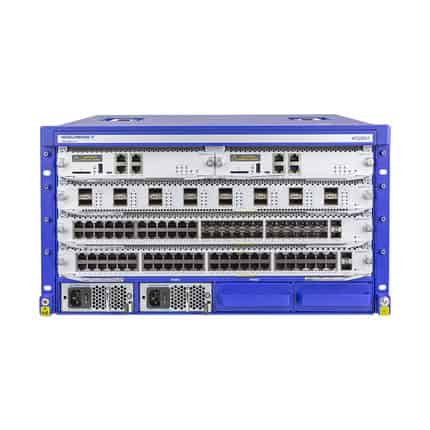

MTS8003-Chassis – MAMMUTHUS MTS8000 Modular Layer 3 Core Switch Chassis by Hirschmann IT

The Hirschmann IT MTS8003-Chassis is a 6U rack mount modular Layer 3 core switch chassis from the MAMMUTHUS MTS8000 series, housing dual redundant engine slots, 3 media module slots, up to 4 hot-swappable modular PSUs, and 2 mandatory hot-swappable redundant fan trays. Accepting engines and media modules ordered separately, it provides a scalable foundation for high-availability data centre and campus core network infrastructure from 0°C to +55°C. Available from Recab, your Nordic partner for Hirschmann IT core switch solutions.
contct-now-icon (2) Get datasheet
Description
The Hirschmann IT MTS8003-Chassis is the compact 6U rack mount modular chassis of the MAMMUTHUS MTS8000 series, providing a scalable and highly available hardware foundation for building high-performance Layer 3 core switch infrastructure in data centres, campus backbones, and large industrial IT networks. The chassis accommodates 2 engine slots for dual redundant processing engines that can be hot-swapped without network interruption, and 3 media module slots for interchangeable line cards carrying a range of copper, fibre, 10G, and 40G interface options, allowing the switch to be configured and reconfigured as bandwidth requirements evolve over time. Up to 4 modular redundant PSUs can be installed and hot-swapped in any combination from a minimum of 1 to a maximum of 4, providing N+1 or N+N power redundancy to match the criticality of the deployment. Two mandatory modular redundant fan trays are hot-swappable for continuous thermal management without planned downtime. The 440 x 266 x 430 mm chassis weighs 16.2 kg empty and accepts 100 to 240 VAC input. EMC compliance covers EN 61000-4-2 through EN 61000-4-11 interference immunity standards and EN 55032 Class A emission, with CE, FCC, Common Criteria EAL 2+, CCC, and RoHS approvals. Engines, media modules, switch fabric, hybrid cards, PSUs, and fan trays are all ordered separately, allowing precise configuration for each deployment. Available from Recab, your Nordic partner for Hirschmann IT core switch solutions.
Features
  • 6U rack mount chassis with dual redundant engine slots for hot-swappable processing redundancy.
  • Three media module slots accept interchangeable line cards for scalable interface configuration.
  • Up to four modular redundant hot-swappable PSUs provide N+1 or N+N power path resilience.
  • Two mandatory hot-swappable redundant fan trays maintain thermal management without downtime.
  • Modular architecture allows engines, media modules, and PSUs to be ordered and configured separately.
  • CE, FCC, Common Criteria EAL 2+, CCC, and RoHS approvals for global deployment compliance.
Specifications
Type MTS8003-Chassis
Voltage 100-240VAC
Humidity 5% to 95%
Temperature 0-+55 °C
Width 440 mm
Height 266 mm
Depth 430 mm
Weight 16.2 kg
Slots 3 Media Module Slots
Engines 2 Engine Slots
  • Data centre core network infrastructure requiring modular and scalable high-availability switching
  • Campus backbone core switch deployments with hot-swappable engine and media module flexibility
  • Large industrial IT network core requiring redundant dual-engine Layer 3 chassis switching
  • High-availability enterprise core switching with hot-swappable PSU and fan tray redundancy
