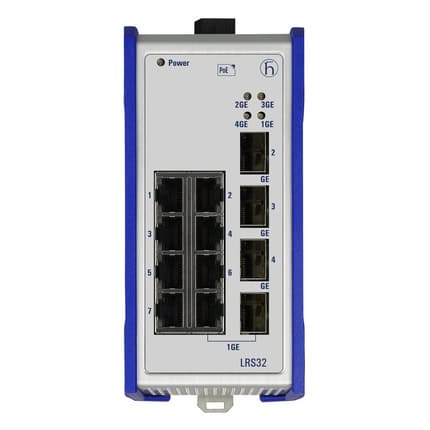

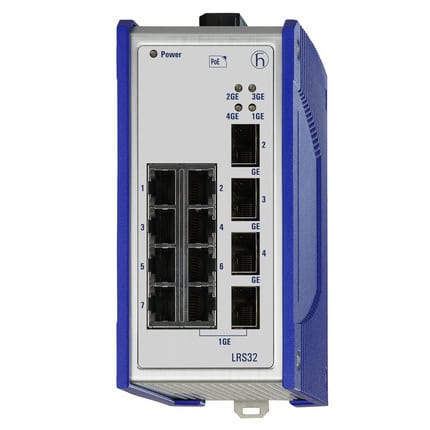

LRS32-7TX/3SFP/1C – Lite Managed PoE DIN Rail Industrial Ethernet Switch by Hirschmann

The Hirschmann LRS32-7TX/3SFP/1C is a lite managed DIN rail industrial Ethernet switch with PoE/PoE+ on up to 8 ports at a maximum budget of 180W, combining 7 Fast Ethernet TX ports, 3 FE/GE SFP ports, and 1 combo FE/GE port in a compact IP30-rated housing. Running HiEOS Layer 2 software with MRP, RSTP, ERPS, VLAN, and QoS support, it operates at 48/54 VDC across -40°C to +60°C. Available from Recab, your Nordic partner for Hirschmann industrial switch solutions.
contct-now-icon (2) Get datasheet
Description
The Hirschmann LRS32-7TX/3SFP/1C is a lite managed DIN rail industrial Ethernet switch from the LRS32 series, extending the LRS30 platform with PoE and PoE+ power delivery capability for powering IP devices directly from the switch without separate power supplies. The switch supports PoE/PoE+ on up to 8 ports with a total power budget of 180W, making it well-suited for powering IP cameras, wireless access points, VoIP phones, sensors, and other field devices in distributed industrial automation, intelligent transportation, and smart building applications. The port configuration mirrors the LRS30: 7 Fast Ethernet TX copper ports, 3 FE/GE SFP ports for fibre or copper SFP connectivity at up to Gigabit speeds, and 1 combo port supporting 10/100/1000BASE-TX and 100/1000BASE-FX SFP simultaneously. Hirschmann’s HiEOS Layer 2 software provides VLAN, QoS, IGMP snooping, store-and-forward switching, RSTP per IEC 62439-1, MRP client, and ERPS and ERPS v2 ring redundancy. Management via HTTPS, SSHv2, SNMP v1/v2/v3, CLI, and HiDiscovery supports both local and remote network administration. The compact 68 x 135 x 118 mm DIN rail housing operates from -40°C to +60°C with IP30 protection and 48/54 VDC power input. CE, FCC, EN 61131, and cUL 61010-1 approvals ensure compliance across industrial sectors, while an MTBF of over 3.1 million hours and a five-year guarantee support long-term installation confidence. Available from Recab, your Nordic partner for Hirschmann industrial switch solutions.
Features
  • PoE and PoE+ on up to 8 ports delivers a maximum 180W power budget for field devices.
  • Seven Fast Ethernet TX ports plus 3 FE/GE SFP and 1 combo port provide flexible connectivity.
  • HiEOS Layer 2 software supports VLAN, QoS, IGMP snooping, and store-and-forward switching.
  • MRP client, RSTP, ERPS, and ERPS v2 provide ring redundancy for network resilience.
  • Compact DIN rail housing operates from -40°C to +60°C across industrial temperature ranges.
  • MTBF exceeding 3.1 million hours and five-year guarantee support reliable long-term deployments.
Specifications
Ports 7x 10/100BASE-TX, 3x SFP, 1x Combo
Power 46-57 V DC
Temperature −40-+60 °C
Power Consumption 195.2W
Weight 720 g
Dimensions 68x135x118 mm
Protection IP30
MTBF 3 177 412 h
Standards CE, FCC, EN61131
Guarantee 60 months
  • Industrial automation cabinets powering field devices via PoE from a DIN rail switch
  • Intelligent transportation systems powering IP cameras and sensors over Ethernet
  • Smart building and facility management networks using PoE-powered wireless access points
  • Distributed industrial sites requiring PoE device power without separate power infrastructure
