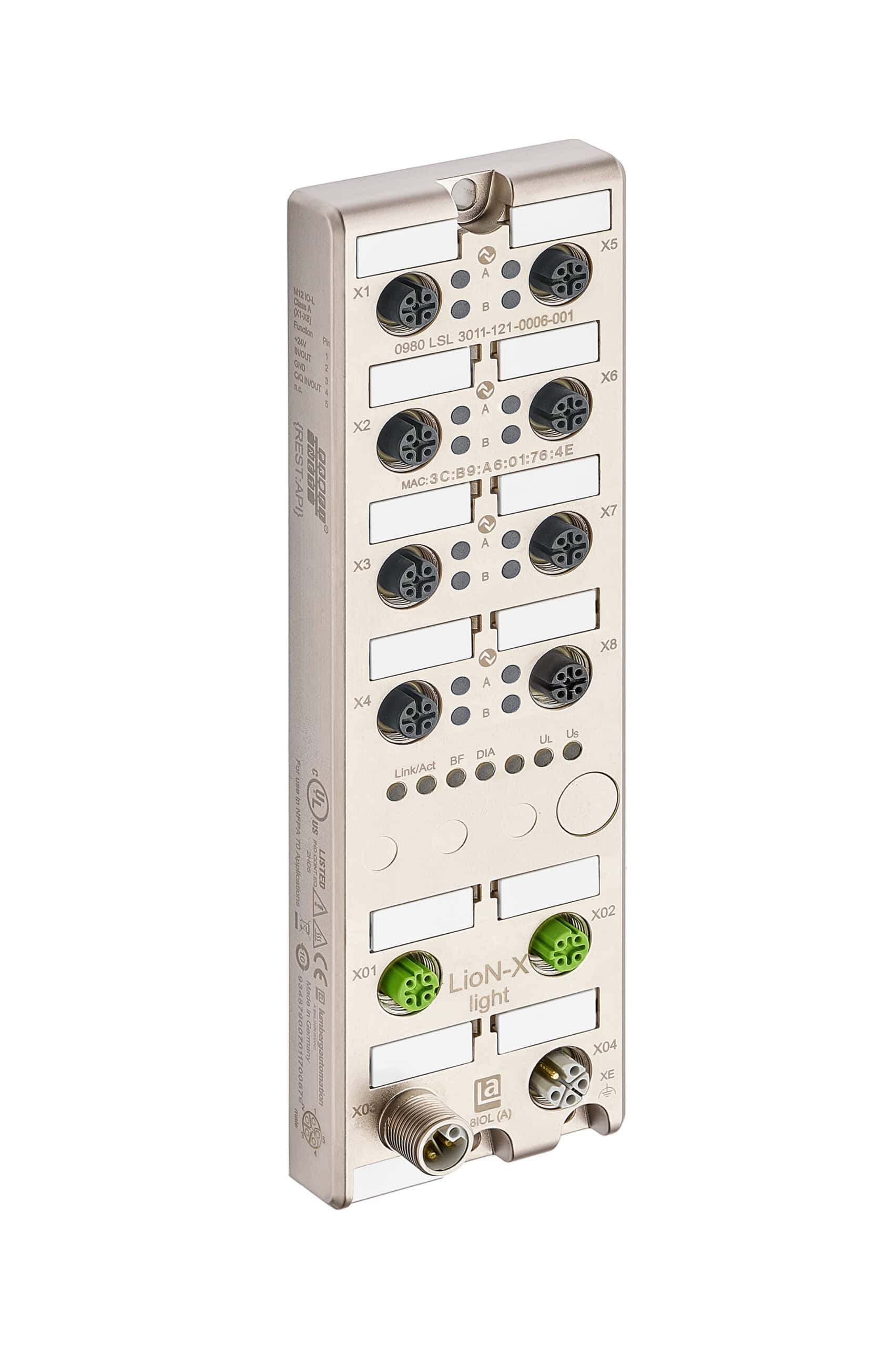

The Lumberg Automation LioN-Xlight 0980 LSL 3011-121-0006-001 is a compact, single-protocol IO-Link Master module from the established LioN-X product family, designed for automation engineers deploying PROFINET-based systems who require a cost-effective and reliable field device without the overhead of multiprotocol support. Manufactured by Lumberg Automation, a Belden brand, the LioN-Xlight provides eight IO-Link Class A Master ports conforming to IO-Link specification V1.1.3 with parameter storage supported, COM1 through COM3 transmission modes available, and a minimum cycle time of 1 ms across all channels at 32-byte I/O. PROFINET integration is fully featured at V2.3 Conformance Class C with IRT-capable RT performance, Media Redundancy Protocol client support, Fast Startup within 4000 ms, easy device replacement via LLDP, and a netload Class III rating, making it suitable for demanding PROFINET topologies. A REST API provides lightweight IIoT access to cyclic data, diagnostics, and event information. The fully potted nickel-plated zinc die-cast housing achieves IP65, IP67, and IP69K protection ratings, ensuring reliable operation in washdown and high-contamination environments common in food and beverage, pharmaceutical, and automotive manufacturing. Operating temperatures span -20 °C to +60 °C, shock resistance is rated at 50 g at 11 ms, and vibration tolerance reaches 15 g across 5–500 Hz. Ethernet and power connections are made via M12 D-coded and L-coded connectors respectively, with eight M12 A-coded ports for I/O. Approved to cULus UL 61010-1, CE, RoHS, PNO, and IO-Link standards, the device is well-suited to machine building, assembly automation, and process manufacturing. Available from Recab, your Nordic partner for Lumberg Automation IO-Link solutions.
