942334003

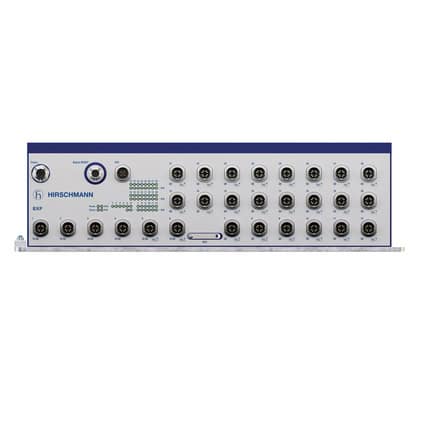

BXP62-28TX-EECC-HV-2A – 28-Port 10G Railway Managed Switch by Hirschmann, a Belden Brand

The Hirschmann BXP62-28TX-EECC-HV-2A is a BOBCAT eXtreme Performance managed switch offering 28 M12 X-coded ports including 6 x 10 Gbit/s uplinks and PoE++ support up to 120W, designed for high-density railway rolling stock Ethernet networks. Running HiOS 2A on 110 VDC supply with HSR, MRP, and MSTP redundancy, it is fully certified to EN 50155, EN 50121-4, and EN 45545 HL3. Available from Recab, your Nordic partner for Hirschmann railway switch solutions.
contct-now-icon (2) Get datasheet
Description
The Hirschmann BXP62-28TX-EECC-HV-2A is a managed industrial Ethernet switch from the BOBCAT eXtreme Performance series, offering the highest port density in the BXP62 family with 28 M12 X-coded ports for large-scale onboard railway network deployments. The port layout comprises 4 x 1/2.5/10 Gbit/s TX ports, 2 x 1/2.5/10 Gbit/s TX PoE++ ports, 2 x 10/100/1000 Mbit/s TX PoE++ ports, and 20 x 10/100/1000 Mbit/s TX PoE+ ports, delivering up to 120W total PoE budget across the PoE-capable ports. All connections use M12 X-coded Inner-Push Pull connectors per IEC 61076-2-010, well-suited to the vibration and shock environments encountered in rolling stock. A key differentiator of the BXP62-28TX-EECC-HV-2A is its support for High Availability Seamless Redundancy (HSR, IEC 62439-3) including HSR-PRP RedBox, which delivers zero-recovery-time redundancy for the most demanding railway communication architectures. Additional redundancy options include MRP (IEC 62439-2), MSTP, LACP link aggregation, Sub Ring Manager, and RSTP. The switch operates on 110 VDC (77–138 V range) and is certified to EN 50155, EN 50121-4, and EN 45545 HL3 for European railway rolling stock compliance. Industrial protocols supported include PROFINET, EtherNet/IP, and Modbus TCP. Security features span 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, TACACS+, LDAP, VLAN-based ACLs, secure boot, and signed firmware. The conformal-coated PCB and IP40 metal flat-surface housing support -40°C to +70°C operation at altitudes up to 3000 m. Available from Recab, your Nordic partner for Hirschmann railway switch solutions.
Features
  • Twenty-eight M12 X-coded ports include six 10G uplinks for high-density railway backbone switching
  • HSR IEC 62439-3 with HSR-PRP RedBox delivers zero-recovery-time seamless network redundancy
  • PoE++ and PoE+ ports provide up to 120W total budget for onboard passenger and safety devices
  • Certified to EN 50155, EN 50121-4, and EN 45545 HL3 for full European railway homologation
  • Operates at 110 VDC from -40°C to +70°C with conformal coated PCB and IP40 metal housing
  • PROFINET, EtherNet/IP, and Modbus TCP industrial protocol support included in HiOS 2A software
Specifications
Ports 28 ports total
Operating Voltage 110 VDC
Power Consumption 60 W
Weight 6200 g
Dimensions 428 x 117.6 x 168.9 mm
Temperature -40°C to +70°C
Protection IP40
Housing Metal
Air Pressure 700 - 1060 hPa
Power Output BTU 205 BTU/h
  • High-density railway rolling stock networks requiring 28-port M12 managed switching capacity
  • Onboard train infrastructure using HSR zero-recovery redundancy for mission-critical applications
  • Intercity and high-speed rail communication backbones with 10G uplink and PoE++ device powering
  • Rolling stock network deployments requiring EN 50155 and EN 45545 HL3 fire safety compliance
