BRS50-00242Q2Q-STCY99HHSESXX.X.XX

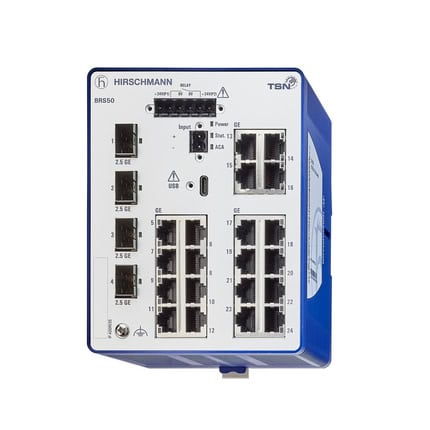

BRS50-20TX/4SFP – All-Gigabit TSN Managed Switch with 2.5G Uplinks by Hirschmann

The Hirschmann BOBCAT BRS50-20TX/4SFP is a fanless all-Gigabit managed industrial DIN Rail switch with 20 x 10/100/1000BASE-TX RJ45 ports and four SFP slots supporting speeds up to 2.5 Gbit/s, delivering 24 ports in total. Supporting TSN 802.1Qbv, PROFINET, EtherNet/IP, and HIPER-Ring redundancy, it is designed for high-density factory automation and process control networks requiring scalable high-bandwidth fiber uplinks. Available from Recab, your Nordic partner for Hirschmann industrial switch solutions.
contct-now-icon (2) Get datasheet
Description
The Hirschmann BOBCAT BRS50-20TX/4SFP is a high-port-density all-Gigabit managed industrial DIN Rail switch providing 24 ports across 20 x 10/100/1000BASE-TX RJ45 copper connections and four SFP slots that support 100 Mbit/s, 1 Gbit/s, or 2.5 Gbit/s fiber transceivers. Part number 942170071, the combination of 20 Gigabit copper ports and 2.5 Gbit/s-capable SFP uplinks makes this switch the highest copper-density BOBCAT BRS50 model, suited to large automation cells, multi-device machine networks, and campus-scale industrial backbones where both maximum port count and scalable uplink bandwidth are required. The 2.5 Gbit/s SFP slots allow uplink bandwidth to be increased 2.5-fold over standard Gigabit connections simply by changing the transceiver, with no changes to the switch hardware. Operating from 0 to +60°C in a 1050 g PC-ABS DIN Rail housing drawing 20 W, the BRS50-20TX/4SFP supports IEEE 802.1Qbv TSN alongside HIPER-Ring and MRP (IEC62439-2) redundancy, RSTP, LACP, IGMP snooping, QoS, and VLAN management. Industrial protocols cover PROFINET, EtherNet/IP, IEC61850 MMS Server, and Modbus TCP. Security includes 802.1X, RADIUS, secure boot, signed firmware, and DoS prevention. Management is via USB-C, HTML5, CLI, and SNMP v1/v2/v3. Available from Recab, your Nordic partner for Hirschmann industrial switch solutions.
Features
  • Four SFP slots support speeds up to 2.5 Gbit/s allowing backbone bandwidth scaling without any hardware replacement
  • Twenty 10/100/1000BASE-TX RJ45 ports deliver the highest copper density in the BOBCAT BRS50 range
  • TSN 802.1Qbv enables deterministic real-time Ethernet scheduling for time-critical industrial control applications
  • HIPER-Ring and MRP IEC62439-2 redundancy provide fast ring failover and continuous network availability
  • Industrial protocol support covers PROFINET, EtherNet/IP, IEC61850 MMS Server, and Modbus TCP
  • Dual redundant 12–24 VDC inputs and fanless design maximise reliability and reduce maintenance in automation enclosures
Specifications
Ports 20x 10/100/1000BASE TX / RJ45; 4x Fiber
Voltage 2 x 12 VDC ... 24 VDC
Power 20 W
Temperature 0 to +60 °C
Storage -40-+70 °C
Weight 1050 g
Dimensions 109 mm x 138 mm x 115 mm
Protection IP30
MTBF 1 634 939 h
Housing PC-ABS
  • Large factory automation cells requiring 24-port all-Gigabit switching with scalable 2.5G fiber uplinks
  • Multi-device machine networks needing maximum copper density with upgradeable high-bandwidth backbone uplinks
  • Process control and SCADA networks combining high port count with TSN real-time Ethernet and PROFINET support
  • Campus-scale industrial backbones integrating 20-port Gigabit switching with future-proof 2.5 Gbit/s connectivity
