BRS50-16TX/4SFP

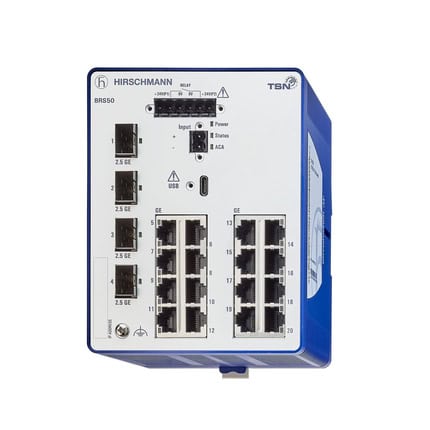

BRS50-16TX/4SFP – All-Gigabit TSN Managed Switch with 2.5G Uplinks by Hirschmann

The Hirschmann BOBCAT BRS50-16TX/4SFP is a fanless all-Gigabit managed industrial DIN Rail switch with 16 x 10/100/1000BASE-TX RJ45 ports and four SFP slots supporting speeds of 100 Mbit/s, 1 Gbit/s, or 2.5 Gbit/s, delivering 20 ports in total. Supporting TSN 802.1Qbv, PROFINET, EtherNet/IP, and HIPER-Ring redundancy, it is designed for factory automation and process control networks requiring future-ready high-bandwidth fiber uplinks. Available from Recab, your Nordic partner for Hirschmann industrial switch solutions.
contct-now-icon (2) Get datasheet
Description
The Hirschmann BOBCAT BRS50-16TX/4SFP is a high-performance managed industrial DIN Rail switch providing 20 ports across 16 x 10/100/1000BASE-TX RJ45 copper ports and four SFP slots that support 100 Mbit/s, 1 Gbit/s, or 2.5 Gbit/s fiber transceivers — making it unique in the BOBCAT lineup for its 2.5 Gbit/s uplink capability, which delivers 2.5 times the bandwidth of standard Gigabit SFP slots without requiring any appliance change. Part number 942170069, this capability makes the BRS50-16TX/4SFP the right choice for engineers building future-proof industrial backbones that need to scale uplink bandwidth as network demands grow. Operating from 0 to +60°C in a 950 g PC-ABS housing, it draws just 17 W from dual redundant 12–24 VDC inputs. As part of the BOBCAT TSN series, it supports IEEE 802.1Qbv for deterministic real-time Ethernet alongside HIPER-Ring and MRP (IEC62439-2) redundancy, RSTP, LACP, IGMP snooping, QoS prioritization, and VLAN management. Industrial protocol support covers PROFINET, EtherNet/IP, IEC61850 MMS Server, and Modbus TCP. Security features include 802.1X, RADIUS, secure boot, signed firmware, and DoS prevention. Management is via USB-C, HTML5, CLI, and SNMP v1/v2/v3. The BRS50-16TX/4SFP suits factory automation, energy distribution, and process control networks where scalable high-bandwidth uplinks are required alongside TSN real-time capability. Available from Recab, your Nordic partner for Hirschmann industrial switch solutions.
Features
  • Four SFP slots support 100 Mbit/s, 1 Gbit/s, or 2.5 Gbit/s fiber transceivers for future-proof scalable uplink bandwidth
  • Sixteen 10/100/1000BASE-TX RJ45 ports deliver full Gigabit copper switching for local device connectivity
  • TSN 802.1Qbv enables deterministic real-time Ethernet scheduling for time-sensitive automation and control traffic
  • HIPER-Ring and MRP IEC62439-2 redundancy provide fast ring failover and continuous industrial network availability
  • Industrial protocol support covers PROFINET, EtherNet/IP, IEC61850 MMS Server, and Modbus TCP
  • Dual redundant 12–24 VDC inputs at just 17 W consumption maximise energy efficiency in automation enclosures
Specifications
Ports 20 Ports total
Uplinks 2 x SFP
Voltage 12-24 VDC
Power 17 W
Operating Temp 0 to +60 °C
Weight 950 g
IP Rating IP30
Dimensions 109x138x115 mm
MTBF 1,940,000 h
Protection IEC 60068
  • Factory automation backbones requiring scalable 2.5 Gbit/s SFP uplinks alongside Gigabit copper switching
  • Process control networks building future-proof industrial Ethernet with high-bandwidth fiber uplink capacity
  • Energy distribution infrastructure needing TSN real-time Ethernet with flexible multi-speed SFP connectivity
  • Machine builder applications requiring 20-port Gigabit switching with upgradeable 2.5G backbone uplinks
