BRS40-00169999-STCY99HHSESXX.X.XX

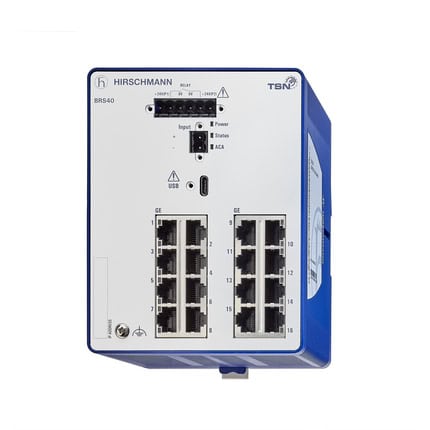

BRS40-16TX – 16-Port All-Gigabit TSN Switch by Hirschmann

The Hirschmann BRS40-16TX is a compact, fanless, DIN Rail-mounted managed industrial Ethernet switch from the BOBCAT series, delivering 16x 10/100/1000BASE-TX RJ45 all-Gigabit ports for high-throughput industrial automation networks. With TSN 802.1Qbv real-time networking, PROFINET, EtherNet/IP, and HIPER-Ring redundancy, it provides full Gigabit bandwidth to every connected device in machine vision, robotics, and data-intensive manufacturing environments. Available from Recab, your Nordic partner for Hirschmann managed industrial switch solutions.
Description
The Hirschmann BRS40-16TX is a 16-port all-Gigabit managed industrial Ethernet switch from the Hirschmann BOBCAT series, engineered for factory automation, machine building, and high-throughput industrial networking environments where every connected device — not just backbone uplinks — requires full Gigabit bandwidth. Its 16x 10/100/1000BASE-TX RJ45 ports each operate at up to 1 Gbit/s, making the BRS40-16TX the appropriate choice for applications involving machine vision systems, high-speed robotic controllers, real-time data aggregation, and IIoT edge computing nodes that generate data volumes exceeding Fast Ethernet limits. The switch operates from 0 to +60°C in a compact fanless DIN Rail PC-ABS housing with IP30 protection and an MTBF of nearly 1.97 million hours. TSN 802.1Qbv on interfaces 1/1 to 1/3 delivers deterministic, time-sensitive Ethernet for real-time industrial control systems. PROFINET, EtherNet/IP, Modbus TCP, and IEC 61850 provide full industrial automation protocol compatibility. Redundancy features include HIPER-Ring, MRP (IEC 62439-2) as both manager and client, RSTP, Link Aggregation with LACP, and Redundant Network Coupling. Security capabilities cover 802.1X port-based access control, RADIUS, VLAN-based ACLs, Secure Boot, and signed firmware. USB-C local management and AutoConfiguration Adapter support enable rapid commissioning and zero-disruption device replacement. Available from Recab, your Nordic partner for Hirschmann managed industrial switch solutions.
Features
  • Sixteen all-Gigabit 10/100/1000BASE-TX RJ45 ports deliver up to 1 Gbit/s bandwidth at every connected industrial device.
  • TSN 802.1Qbv on three interfaces provides deterministic real-time Ethernet for time-critical automation and machine control.
  • HIPER-Ring, MRP (IEC 62439-2) manager and client, and RSTP deliver multi-level redundancy for continuous production uptime.
  • PROFINET, EtherNet/IP, Modbus TCP, and IEC 61850 support ensures compatibility with all major industrial control platforms.
  • Compact fanless DIN Rail design operates from 0 to +60°C with nearly 1.97 million hours MTBF for sustained reliability.
  • 802.1X, RADIUS, Secure Boot, and signed firmware provide comprehensive cybersecurity for all-Gigabit industrial networks.
Specifications
Power 2 x 12 VDC ... 24 VDC
Ports 16x 10/100/1000BASE TX
Weight 880 g
Temperature 0 to +60 °C
Humidity 1- 95 %
Dimensions 109 mm x 138 mm x 115 mm
Power Consumption 14 W
Protection IP30
MTBF 1 974 846 h
Housing PC-ABS
  • Machine vision and high-speed robotics automation requiring 16-port all-Gigabit managed industrial Ethernet switching
  • High-throughput manufacturing networks where all 16 connected devices demand full Gigabit bandwidth performance
  • IIoT edge computing and data acquisition infrastructure requiring all-Gigabit TSN capable DIN Rail managed switches
  • Factory automation backbones needing 16 full-Gigabit connections with PROFINET and real-time redundancy support
