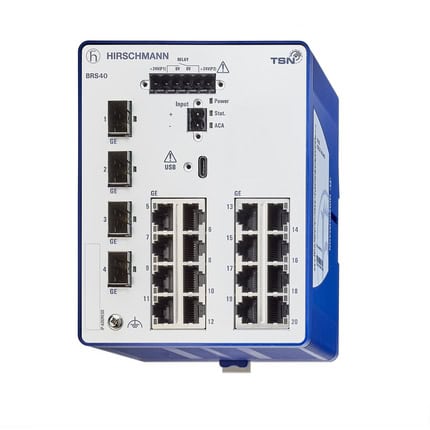

BRS40-16TX/4SFP – All-Gigabit TSN Managed DIN Rail Switch by Hirschmann, a Belden Brand

The Hirschmann BOBCAT BRS40-16TX/4SFP is a fanless all-Gigabit managed industrial DIN Rail switch with 16 x 10/100/1000BASE-TX RJ45 ports and four SFP slots supporting 100/1000 Mbit/s fiber uplinks. Built on the BOBCAT platform with TSN 802.1Qbv support, it enables real-time deterministic communication across industrial Ethernet backbones in factory automation, energy, and process control environments. PROFINET, EtherNet/IP, MRP redundancy, and advanced security are all included. Available from Recab, your Nordic partner for Hirschmann industrial switch solutions.

manufacturer

Hirschmann

product model

BRS40-16TX/4SFP
Download datasheet
Contact an expert
ATEX Certified, CE Certified, cUL 61010, DNVGL, EN 50121-3-2, EN 50121-4, EN 55022, EN 55032 Class A, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61131, FCC 47 CFR Part 15 Subpart B (Class A), FCC Certified, IEC 61850, IEC 61850-3, IEC 62439-2, IEEE 802.1Qbv, NEMA TS2

Overview

The Hirschmann BOBCAT BRS40-16TX/4SFP is a fully managed all-Gigabit industrial DIN Rail switch combining 16 x 10/100/1000BASE-TX RJ45 ports with four SFP slots for 100 or 1000 Mbit/s fiber connectivity in a single compact housing. Part number 942170065, it is part of Hirschmann’s BOBCAT series — the first switch family to deliver Time-Sensitive Networking via IEEE 802.1Qbv, allowing engineers to build deterministic industrial Ethernet networks without modifying hardware. The four SFP uplink slots accept a wide range of fiber modules including single-mode, long-haul, and multimode transceivers, providing installation flexibility across large-scale plant and campus environments. The switch supports HIPER-Ring, MRP (IEC62439-2), RSTP, and Link Aggregation with LACP to ensure network resilience and rapid failover. Its industrial protocol suite includes PROFINET, EtherNet/IP, IEC61850, and Modbus TCP. Comprehensive security features cover 802.1X port access control, RADIUS client and VLAN assignment, secure boot, signed firmware, DoS prevention, and VLAN-based ACL. The fanless PC-ABS housing operates from 0 to +60°C and draws only 17 W from dual redundant 12–24 VDC supplies. Management is available via HTML5 web GUI, CLI, SNMP v1/v2/v3, SSHv2, and USB-C. The BRS40-16TX/4SFP is well suited to factory automation, machine networks, energy substations, and process industries where all-Gigabit performance and flexible fiber uplinks are essential. Available from Recab, your Nordic partner for Hirschmann industrial switch solutions.
DIN Rail, EtherNet/IP, Fanless, Modbus, Power Over Ethernet, PROFINET, Redundancy Protocols, Redundant Power Input, Rugged Design, Time-Sensitive Networking

Key highlights

  • List Item #1
  • List Item #2
  • List Item #3

Features

  • All-Gigabit 16x 10/100/1000BASE-TX ports deliver high-throughput switching for bandwidth-intensive industrial applications
  • Four SFP slots support 100 or 1000 Mbit/s modules across single-mode, multimode, and long-haul fiber types
  • TSN 802.1Qbv enables scheduled, deterministic traffic delivery for time-critical industrial control systems
  • HIPER-Ring and MRP IEC62439-2 redundancy ensure fast network recovery in ring and mesh topologies
  • Industrial protocol support includes PROFINET, EtherNet/IP, IEC61850 MMS Server, and Modbus TCP
  • Secure boot, signed firmware, 802.1X access control, and RADIUS authentication provide layered network security

Specifications

Product BRS40-16TX/4SFP
Ports 16x 10/100/1000BASE TX
Operating Voltage 12 VDC ... 24 VDC
Power Consumption 17 W
Temperature 0 to +60 °C
Weight 950 g
Protection IP30
Dimensions 109 mm x 138 mm x 115 mm
Humidity 1 to 95 %
MTBF 1 940 000 h

Applications

  • Factory automation backbones requiring all-Gigabit switching with flexible fiber uplink options
  • Energy substation networks needing IEC61850 protocol support and ring redundancy
  • Process manufacturing plants integrating PROFINET and EtherNet/IP automation controllers
  • Machine builder applications demanding compact DIN Rail switching with TSN real-time capability

Resources

Datasheet

https://recab.com/wp-content/uploads/2025/10/brs40-16tx-4sfp-datasheet-1.pdf
