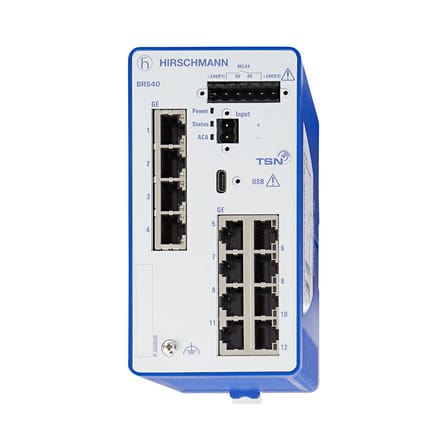

BRS40-12TX-EEC – Extended Temp All-Gigabit Switch by Hirschmann, a Belden Brand

The Hirschmann BRS40-12TX-EEC is a compact, fanless, DIN Rail-mounted managed industrial Ethernet switch from the BOBCAT series, providing 12x 10/100/1000BASE-TX RJ45 all-Gigabit ports with an Extended Environmental Class operating range of -40 to +70°C. Delivering full Gigabit bandwidth at every port alongside TSN 802.1Qbv, PROFINET, and HIPER-Ring redundancy, it is built for high-throughput industrial networks in harsh and outdoor environments. Available from Recab, your Nordic partner for Hirschmann managed industrial switch solutions.

manufacturer

Hirschmann

product model

BRS40-12TX-EEC
Download datasheet
Contact an expert
ATEX Certified, CE Certified, cUL 61010, DNVGL, EN 50121-3-2, EN 50121-4, EN 55022, EN 55032 Class A, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61131, EN 62368-1, FCC 47 CFR Part 15 Subpart B (Class A), FCC Certified, IEC 61850, IEC 61850-3, IEC 62439-2, IEEE 802.1Qbv, NEMA TS2

Overview

The Hirschmann BRS40-12TX-EEC is the extended temperature variant of the BOBCAT all-Gigabit managed switch, combining 12x 10/100/1000BASE-TX RJ45 full Gigabit ports with an Extended Environmental Class operating range of -40 to +70°C for deployment in harsh, outdoor, or extreme climate industrial environments. Where the standard BRS40-12TX is suited to controlled cabinet installations, the BRS40-12TX-EEC extends that all-Gigabit performance capability to Nordic and Arctic industrial sites, transportation infrastructure, outdoor enclosures, and any environment where standard temperature ratings are insufficient. All 12 ports deliver up to 1 Gbit/s bandwidth, making the switch ideal for bandwidth-intensive applications such as machine vision, high-speed data acquisition, real-time analytics, and IIoT connectivity in demanding field environments. The switch operates in a compact fanless DIN Rail PC-ABS housing with IP30 protection, an MTBF of over 2.4 million hours, and CE, FCC, and cUL61010 approvals. TSN 802.1Qbv on interfaces 1/1 to 1/3 enables deterministic real-time Ethernet for time-sensitive industrial control, while PROFINET, EtherNet/IP, Modbus TCP, and IEC 61850 provide comprehensive automation protocol coverage. Redundancy is delivered by HIPER-Ring, MRP (IEC 62439-2) as both manager and client, RSTP, Link Aggregation with LACP, and Redundant Network Coupling. Security includes 802.1X, RADIUS, VLAN-based ACLs, Secure Boot, and signed firmware. Available from Recab, your Nordic partner for Hirschmann managed industrial switch solutions.
DIN Rail, EtherNet/IP, Fanless, Modbus, Power Over Ethernet, PROFINET, Redundancy Protocols, Rugged Design, Time-Sensitive Networking

Key highlights

  • List Item #1
  • List Item #2
  • List Item #3

Features

  • Twelve all-Gigabit 10/100/1000BASE-TX RJ45 ports deliver full 1 Gbit/s bandwidth at every connection in extreme environments.
  • Extended Environmental Class rating supports continuous all-Gigabit operation from -40 to +70°C for harsh deployments.
  • TSN 802.1Qbv on three interfaces enables deterministic real-time Ethernet for time-sensitive automation and control applications.
  • HIPER-Ring, MRP (IEC 62439-2), and RSTP redundancy ensure continuous Gigabit network availability in critical operations.
  • PROFINET, EtherNet/IP, Modbus TCP, and IEC 61850 support covers all major industrial control and automation platforms.
  • Secure Boot, signed firmware, 802.1X, and RADIUS provide robust cybersecurity for extended temperature Gigabit networks.

Specifications

Type Managed Industrial Switch
Ports 12x 10/100/1000BASE TX
Power 2 x 12-24 VDC
Power Consumption 11 W
Operating Temp. -40 to +70 °C
Dimensions 73 mm x 138 mm x 115 mm
Weight 700 g
Protection IP30
MTBF 2,408,606 h
Housing PC-ABS

Applications

  • Nordic and Arctic industrial sites requiring extended temperature all-Gigabit managed Ethernet switching
  • Outdoor and transportation infrastructure needing wide temperature range full Gigabit DIN Rail managed switches
  • High-throughput machine vision and IIoT networks in harsh environments requiring all-Gigabit TSN capable switching
  • Process automation in extreme climate conditions demanding compact all-Gigabit managed switches with full redundancy

Resources

Datasheet

https://recab.com/wp-content/uploads/2025/10/brs40-12tx-eec-datasheet-1.pdf
