BRS32-08042T2T-SPCY99HHSESXX.X.XX

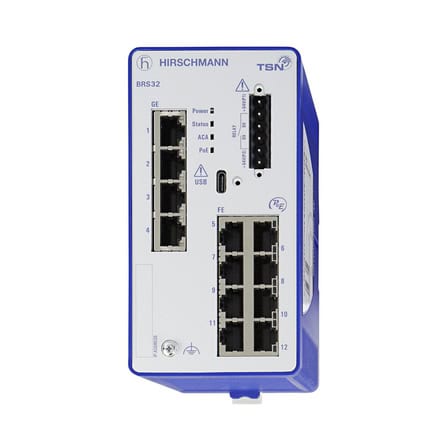

BRS32-12TX – 12-Port PoE+ Managed TSN Switch by Hirschmann

The Hirschmann BRS32-12TX is a compact, fanless, DIN Rail-mounted managed industrial Ethernet switch from the BOBCAT series, delivering 12 ports — including 8x PoE+ Fast Ethernet RJ45, 4x Gigabit RJ45, and dual Gigabit TX uplinks — with up to 240 W total PoE power budget. Supporting TSN 802.1Qbv, PROFINET, EtherNet/IP, and HIPER-Ring redundancy, it powers and connects IP cameras, wireless access points, and industrial field devices in a single unit. Available from Recab, your Nordic partner for Hirschmann managed industrial switch solutions.
Description
The Hirschmann BRS32-12TX is a Power over Ethernet managed industrial switch from the Hirschmann BOBCAT series, purpose-built for engineers who need to simultaneously power and manage IEEE 802.3at PoE+ compliant field devices — such as IP cameras, industrial wireless access points, VoIP terminals, and remote I/O units — through a single compact DIN Rail unit in an industrial control cabinet. It delivers 12 ports in total: 8x 10/100BASE-TX RJ45 PoE+ access ports with up to 240 W total power budget, 4x 10/100/1000BASE-TX RJ45 Gigabit ports, and dual Gigabit TX uplinks, operating from a 48/54 VDC PoE supply voltage. The switch consumes up to 250 W total when fully loaded with 240 W of PoE output, and operates from 0 to +60°C in a compact fanless DIN Rail PC-ABS housing with an MTBF of over 2.57 million hours. TSN 802.1Qbv on interfaces 1/1 to 1/3 provides deterministic real-time Ethernet for time-sensitive control applications, while PROFINET, EtherNet/IP, Modbus TCP, and IEC 61850 support covers the broadest range of industrial automation and control systems. PoE Fast Startup and manual PoE power management give network administrators precise control over device powering sequences. Redundancy is provided by HIPER-Ring, MRP (IEC 62439-2) as both manager and client, RSTP, and Link Aggregation with LACP. Security includes 802.1X, RADIUS, VLAN-based ACLs, Secure Boot, and signed firmware. USB-C provides local management and device replacement support. Available from Recab, your Nordic partner for Hirschmann managed industrial switch solutions.
Features
  • Eight IEEE 802.3at PoE+ ports deliver up to 240 W total power budget for powering industrial field devices directly.
  • PoE Fast Startup and manual PoE power management provide precise control over device powering sequences and budgets.
  • TSN 802.1Qbv on three interfaces enables deterministic real-time Ethernet for time-sensitive industrial control applications.
  • HIPER-Ring, MRP (IEC 62439-2) manager and client, and RSTP deliver comprehensive network redundancy for continuous uptime.
  • PROFINET, EtherNet/IP, Modbus TCP, and IEC 61850 support covers all major industrial automation and control platforms.
  • 802.1X access control, RADIUS, Secure Boot, and signed firmware provide industrial-grade cybersecurity protection.
Specifications
Power 2 x (48 VDC (PoE)/ 54 VDC (PoE+))
Weight 680 g
Operating 0 to +60
Dimension 73 mm x 138 mm x 115 mm
Ports 12 Ports: 8x 10/100BASE TX, 4x 10/100/1000BASE TX
Power Max. PoE power 240 W
Housing PC-ABS
Protection IP30
MTBF 2 578 069 h
EMC EN 61000-4-2, EN 61000-4-3
  • Factory automation powering IP cameras and wireless access points via PoE+ managed industrial switching
  • Building and industrial automation deploying PoE+ powered field devices on a single DIN Rail switch
  • PROFINET and EtherNet/IP networks requiring Power over Ethernet for remote I/O and field terminal powering
  • Industrial surveillance and access control systems requiring PoE+ managed switching with network redundancy
