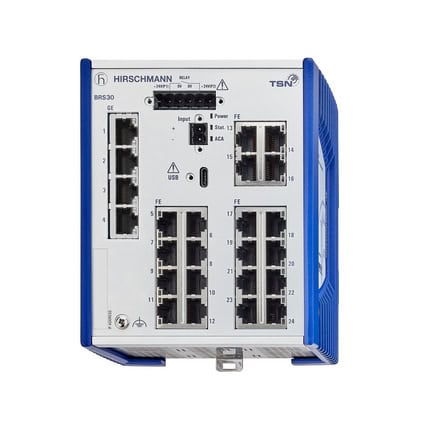

BRS30-24TX-EEC – Extended Temp TSN Managed Switch by Hirschmann, a Belden Brand

The Hirschmann BRS30-24TX-EEC is a managed industrial Ethernet switch delivering 24 ports combining 20 Fast Ethernet and four Gigabit RJ45 ports, rated for extended temperatures from -40 to +70°C in a fanless DIN Rail metal housing. Supporting TSN 802.1Qbv real-time communication, PROFINET, EtherNet/IP, IEC61850, and MRP redundancy, the BRS30-24TX-EEC is suited to engineers specifying switches for harsh outdoor, rail, or industrial environments where reliability under temperature extremes is critical. Dual 12–24 VDC power, USB-C management, and IP30 protection are included. Available from Recab, your Nordic partner for Hirschmann industrial switch solutions.
contct-now-icon (2) Get datasheet
Description
The Hirschmann BRS30-24TX-EEC provides the highest all-copper port density in the BOBCAT managed switch range combined with an Extended Environmental Class rating of -40 to +70°C and a robust metal housing, making it the ideal choice for network engineers deploying large-scale industrial Ethernet infrastructure in environments where standard temperature ratings are insufficient. The switch delivers 20x 10/100BASE-TX RJ45 access ports, 4x 10/100/1000BASE-TX RJ45 Gigabit ports, and dual Gigabit TX uplinks in a compact fanless DIN Rail form factor, providing the port density and uplink bandwidth needed for large machine clusters, production cells, or field cabinet aggregation in outdoor, transportation, and Nordic or Arctic industrial installations. TSN 802.1Qbv on interfaces 1/1 to 1/3 enables deterministic real-time Ethernet for time-sensitive control applications, while PROFINET, EtherNet/IP, Modbus TCP, and IEC 61850 ensure full industrial automation protocol compatibility. Redundancy is provided by HIPER-Ring, MRP (IEC 62439-2) as both manager and client, RSTP, Link Aggregation with LACP, and Redundant Network Coupling. Security includes 802.1X, RADIUS, VLAN-based ACLs, Secure Boot, and signed firmware. USB-C local management enables efficient field commissioning and device replacement without network disruption. Available from Recab, your Nordic partner for Hirschmann managed industrial switch solutions.
Features
  • An extended operating temperature range of -40 to +70°C in a metal DIN Rail housing makes this switch suitable for harsh outdoor and rail environments.
  • Twenty Fast Ethernet plus four 10/100/1000BASE-TX Gigabit RJ45 ports provide high-density mixed-speed connectivity from a single DIN Rail device.
  • TSN 802.1Qbv support on interfaces 1/1 to 1/3 enables deterministic real-time communication for time-critical industrial Ethernet applications.
  • HIPER-Ring, Media Redundancy Protocol per IEC 62439-2 as client and manager, RSTP, and LACP Link Aggregation deliver comprehensive redundancy.
  • PROFINET, EtherNet/IP, Modbus TCP, and IEC61850 protocol support covers the major industrial automation and energy management ecosystems.
  • Secure Boot, signed firmware, 802.1X access control, RADIUS, and full VLAN and QoS features deliver a strong security and management foundation.
Specifications
Ports 24 Ports total
Power 2 x 12 VDC ... 24 VDC
Consumption 16 W
Temperature -40 to +70 °C
Humidity 1-95 %
Housing Metal
Protection IP30
MTBF 1 896 895 h
Certification CE, FCC
  • Extended Environmental Class rating with metal housing supports continuous operation from -40 to +70°C for extreme deployments.
  • Twenty-four ports including four Gigabit RJ45 and dual 1000 Mbit/s TX uplinks deliver maximum all-copper switching density.
  • TSN 802.1Qbv on three interfaces enables deterministic real-time Ethernet for time-critical industrial control and automation.
  • HIPER-Ring, MRP (IEC 62439-2), and RSTP redundancy ensure continuous network uptime in critical production environments.
  • PROFINET, EtherNet/IP, Modbus TCP, and IEC 61850 support provides full industrial automation protocol compatibility.
  • Secure Boot, signed firmware, 802.1X, and RADIUS authentication deliver robust cybersecurity for harsh environment industrial networks.
