BRS30-16042T2T-STCY99HHSESXX.X.XX

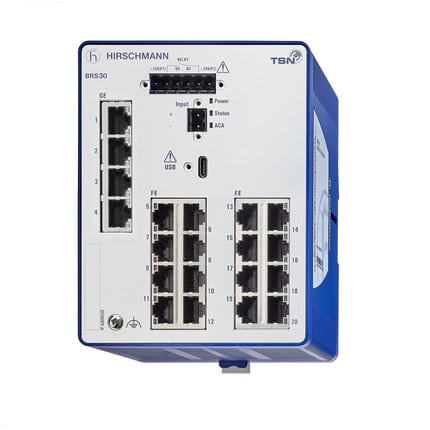

BRS30-20TX – 20-Port Gigabit Uplink TSN Switch by Hirschmann

The Hirschmann BRS30-20TX is a compact, fanless, DIN Rail-mounted managed industrial Ethernet switch from the BOBCAT series, delivering 20 ports including 16x Fast Ethernet RJ45, 4x Gigabit RJ45, and dual Gigabit TX uplinks. Supporting TSN 802.1Qbv, PROFINET, EtherNet/IP, and HIPER-Ring redundancy, it provides the high port density and real-time networking capability required in large-scale manufacturing and process automation infrastructure. Operating from 0 to +60°C. Available from Recab, your Nordic partner for Hirschmann managed industrial switch solutions.
Description
The Hirschmann BRS30-20TX is a 20-port managed industrial Ethernet switch from the Hirschmann BOBCAT series, engineered for factory automation, machine building, and process control environments where both a large number of Fast Ethernet device connections and Gigabit uplink bandwidth are required within a single compact DIN Rail unit. It provides 16x 10/100BASE-TX RJ45 ports, 4x 10/100/1000BASE-TX RJ45 Gigabit ports, and dual Gigabit TX uplinks, all housed in a fanless PC-ABS enclosure operating from 0 to +60°C with IP30 protection and an MTBF of over 2.32 million hours. TSN 802.1Qbv on interfaces 1/1 to 1/3 delivers the deterministic, low-latency communication that modern machine coordination and real-time PLC communication demands. The BRS30-20TX supports PROFINET, EtherNet/IP, Modbus TCP, and IEC 61850 across its full industrial protocol stack, enabling drop-in integration with the widest range of automation control platforms. Redundancy capabilities include HIPER-Ring, MRP (IEC 62439-2) as both manager and client, RSTP, Link Aggregation with LACP, and Redundant Network Coupling for continuous network uptime. Security features include 802.1X port-based access control, RADIUS, VLAN-based ACLs, Secure Boot, signed firmware, and DoS prevention. USB-C local management and AutoConfiguration Adapter support enable efficient commissioning and zero-disruption device replacement on the production floor. Available from Recab, your Nordic partner for Hirschmann managed industrial switch solutions.
Features
  • Twenty ports including four Gigabit RJ45 ports and dual 1000 Mbit/s TX uplinks provide high-density industrial network aggregation.
  • TSN 802.1Qbv on three interfaces delivers deterministic real-time Ethernet communication for time-critical automation systems.
  • HIPER-Ring, MRP (IEC 62439-2) manager and client, and RSTP provide multi-level network redundancy for continuous production uptime.
  • PROFINET, EtherNet/IP, Modbus TCP, and IEC 61850 protocol support ensures compatibility with all major industrial automation platforms.
  • Fanless DIN Rail design with IP30 protection operates reliably from 0 to +60°C in industrial cabinet installations.
  • USB-C management and AutoConfiguration Adapter support enable rapid commissioning and zero-disruption field device replacement.
Specifications
Type Managed Industrial Switch
Ports 20 Ports Total
Power 12-24 VDC
Power Consumption 15 W
Weight 1060 g
Operating Temp 0 to +60 °C
Storage Temp -40 to +70 °C
Dimensions 109x138x115 mm
Protection IP30
MTBF 2,320,199 h
  • Large-scale manufacturing plants requiring high port density Fast Ethernet switching with Gigabit uplink aggregation
  • Process automation and PLC network infrastructure needing TSN real-time Ethernet and PROFINET support
  • Machine building and robotics environments demanding compact DIN Rail managed switches with 20 connected devices
  • Industrial automation backbones combining dense Fast Ethernet access and dual Gigabit uplink bandwidth
