BRS30-20TX/4SFP-EEC

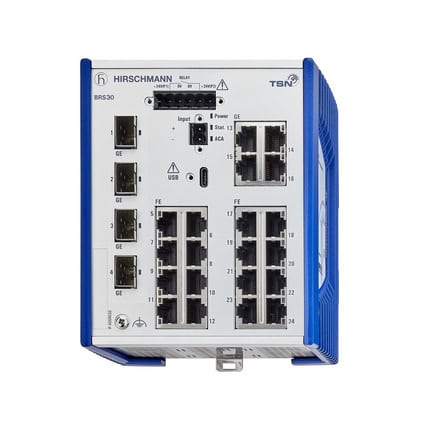

BRS30-20TX/4SFP-EEC – Extended Temp 24-Port SFP Switch by Hirschmann

The Hirschmann BRS30-20TX/4SFP-EEC is a fanless, DIN Rail-mounted managed industrial Ethernet switch from the BOBCAT series, delivering 24 ports — 20x Fast Ethernet RJ45 and four SFP Gigabit slots — with an Extended Environmental Class rating of -40 to +70°C and a robust metal housing. With TSN 802.1Qbv, PROFINET, EtherNet/IP, and HIPER-Ring redundancy, it is engineered for harsh outdoor, transportation, and extreme climate industrial network deployments. Available from Recab, your Nordic partner for Hirschmann managed industrial switch solutions.
contct-now-icon (2) Get datasheet
Description
The Hirschmann BRS30-20TX/4SFP-EEC is the extended temperature and metal housing variant of the BOBCAT BRS30-20TX/4SFP managed switch, combining 24-port density and four SFP Gigabit fibre uplink slots with an Extended Environmental Class operating range of -40 to +70°C. Built with a metal enclosure instead of the PC-ABS used in the standard variant, the BRS30-20TX/4SFP-EEC is specifically designed for industrial Ethernet deployments in outdoor cabinets, transportation infrastructure, Nordic and Arctic industrial sites, and any environment where thermal extremes and mechanical durability are primary design constraints. The switch provides 20x 10/100BASE-TX RJ45 ports and four SFP slots — supporting 100/1000 Mbit/s in single mode, long-haul single mode, or multimode fibre variants — giving network architects the fibre flexibility to adapt uplink reach to topology without hardware replacement. TSN 802.1Qbv on interfaces 1/1 to 1/3 enables deterministic real-time Ethernet for time-sensitive industrial control, while PROFINET, EtherNet/IP, Modbus TCP, and IEC 61850 provide comprehensive automation protocol coverage. Redundancy features include HIPER-Ring, MRP (IEC 62439-2) as manager and client, RSTP, Link Aggregation with LACP, and Redundant Network Coupling. Security includes 802.1X, RADIUS, VLAN-based ACLs, Secure Boot, and signed firmware. Available from Recab, your Nordic partner for Hirschmann managed industrial switch solutions.
Features
  • Extended Environmental Class rating with metal housing enables reliable operation from -40 to +70°C in extreme climates.
  • Four SFP slots support 100/1000 Mbit/s single mode, long-haul, or multimode fibre for flexible large-scale network design.
  • TSN 802.1Qbv on three interfaces provides deterministic real-time Ethernet for time-sensitive industrial automation systems.
  • HIPER-Ring, MRP (IEC 62439-2), RSTP, and LACP redundancy ensure continuous network availability in mission-critical deployments.
  • PROFINET, EtherNet/IP, Modbus TCP, and IEC 61850 support covers all major industrial control and automation platforms.
  • Secure Boot, signed firmware, 802.1X, and RADIUS deliver comprehensive cybersecurity for harsh environment network infrastructure.
Specifications
Ports 20x 10/100BASE TX, 4x Fiber
Power 2 x 12 VDC ... 24 VDC
Consumption 16 W
Weight 1800 g
Dimensions 123 x 140 x 115 mm
OperatingTemp -40 to +70 °C
Protection IP30
EMC EN 61000-4-2 ESD
MTBF 2,311,547 h
Vibration IEC 60068-2-6
  • Outdoor and transportation networks requiring extended temperature 24-port managed switching with SFP fibre uplinks
  • Nordic and Arctic industrial deployments needing wide temperature range high-density DIN Rail managed switches
  • Harsh process and utility environments demanding metal housing managed switches with flexible Gigabit SFP connectivity
  • Rail and heavy industry infrastructure combining 20 Fast Ethernet ports with extended temperature SFP Gigabit uplinks
