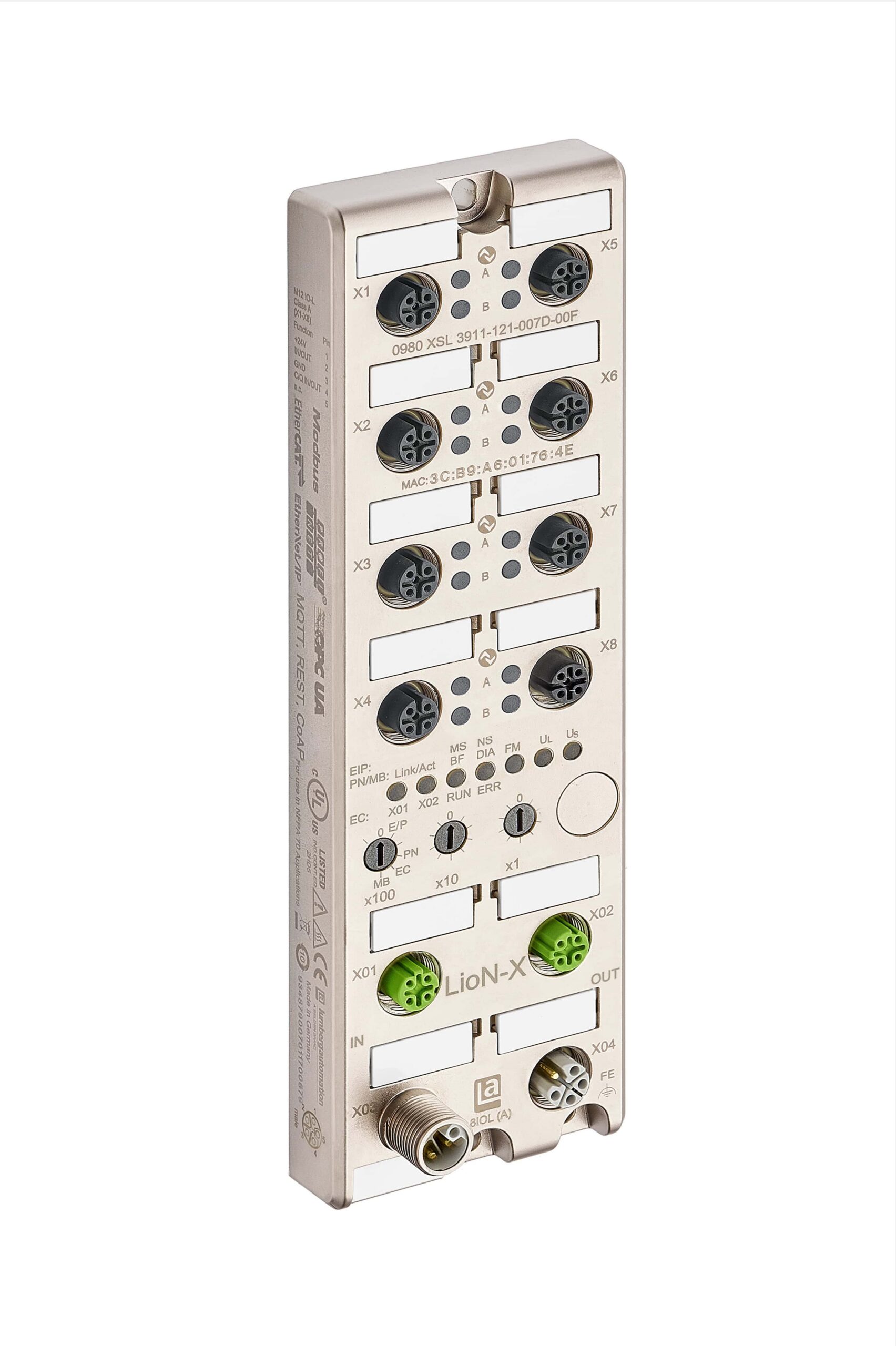

Belden LioN-X 0980 XSL 3912-121-007D-00F – Multiprotocol IO-Link Master with IIoT Protocol Support

The Belden LioN-X 0980 XSL 3912-121-007D-00F is an advanced IO-Link Master supporting PROFINET, EtherNet/IP, EtherCAT, and Modbus TCP alongside IIoT protocols including OPC UA, MQTT, CoAP, and REST. With 8 Class A IO-Link Master ports in a 60 mm IP69K metal housing rated to -40°C, it bridges traditional industrial automation with Industry 4.0 connectivity. Available from Recab across the Nordic and Baltic regions.
contct-now-icon (2) Get datasheet
Description
The Belden LioN-X 0980 XSL 3912-121-007D-00F represents the next generation of IO-Link Master technology, combining broad industrial protocol support with native IIoT connectivity in a single field device. It supports PROFINET Conformance Class C, EtherNet/IP with Device Level Ring and Quick Connect, EtherCAT with CoE and FoE mailbox protocols, and Modbus TCP as a slave device. On top of standard industrial protocols, it natively supports OPC UA, MQTT, CoAP, and REST API for direct integration with cloud platforms, edge gateways, and Industry 4.0 architectures without the need for additional middleware or gateways. The device provides 8 Class A IO-Link Master channels via M12 5-pole A-coded connectors, with IO-Link specification V1.1.3 and cycle times as fast as 1 ms across all channels at 32 bytes in and out. It also supports up to 16 configurable digital input and 16 digital output channels. The zinc die-cast 60 mm metal housing is fully potted, rated IP65, IP67, and IP69K, and operates from -40°C to 70°C with 15g vibration and 50g shock resistance, making it suitable for demanding environments in transportation, energy, and advanced manufacturing. CE, RoHS, UL, PNO, ODVA, ETG, and IO-Link certified. Available from Recab, your Nordic distributor for Belden industrial I/O systems.
Features
  • Multiprotocol support for PROFINET, EtherNet/IP, EtherCAT and Modbus TCP in a single device
  • Native IIoT protocol support including OPC UA, MQTT, CoAP and REST API
  • 8 Class A IO-Link Master channels with IO-Link V1.1.3 and 1 ms cycle time
  • Extended temperature operation from -40 degrees C to 70 degrees C
  • IP65, IP67 and IP69K rated 60 mm zinc die-cast metal housing
  • EtherNet/IP Quick Connect support and EtherCAT CoE and FoE mailbox protocol support
Specifications
Protocol Multiprotocol, PROFINET
I/O Type IO-Link Master
Power Supply 24 V DC (SELV/PELV)
Dimensions 60 mm x 31 mm x 200 mm
Weight 500 g
Operating Temp -40 °C to 70 °C
Protection Class IP65, IP67, IP69K
Connection M12, 4-poles, D-coded
Humidity 5 % ... 95 %
Shock Res. 50 g / 11ms
  • Industry 4.0 and IIoT-connected factory automation
  • Advanced manufacturing requiring direct cloud and edge gateway integration
  • Transportation and energy infrastructure with multiprotocol network requirements
  • Applications requiring OPC UA or MQTT data publishing directly from field devices
