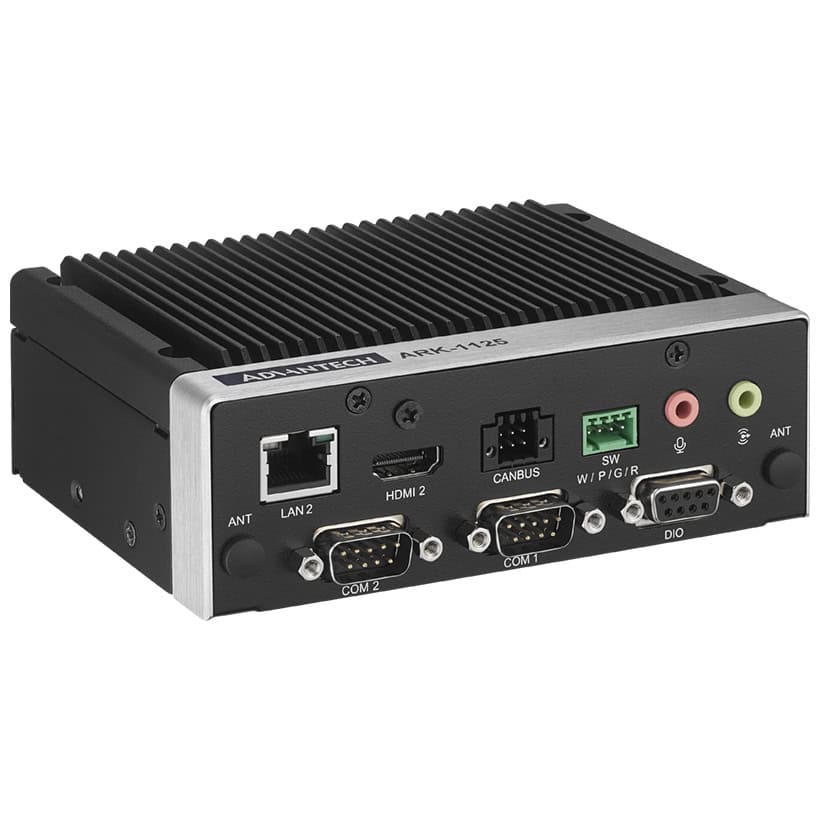

ARK-1125H – Intel N200 Dual LAN Fanless Box PC by Advantech

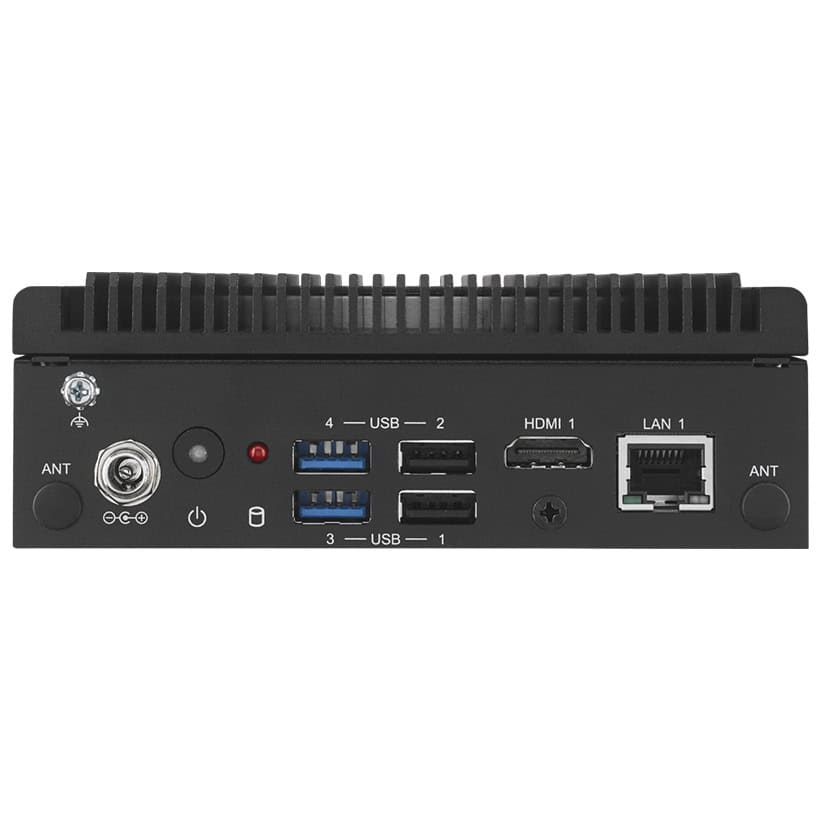

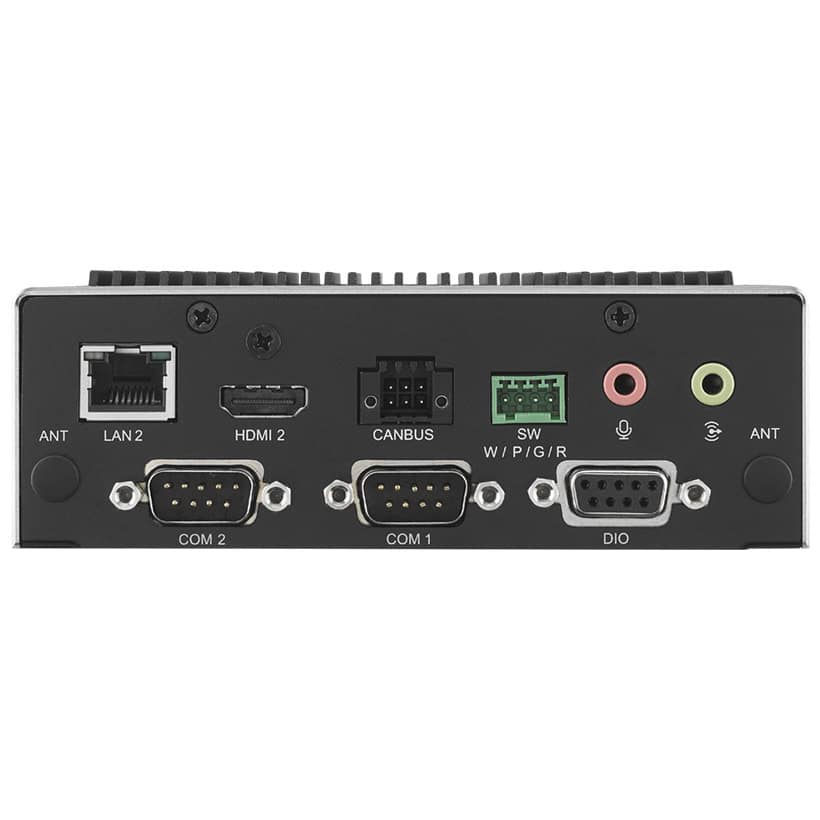

The Advantech ARK-1125H is a feature-rich fanless embedded box PC designed for demanding industrial and IoT applications requiring reliable, maintenance-free operation in challenging environments. Built around the energy-efficient Intel Processor N-series N200 quad-core SoC running at 1.0GHz, this compact system delivers capable computing performance while maintaining low power consumption with typical idle power of just 10.54W and maximum load of 29.18W. The system supports DDR5-4800 memory up to 16GB via a single SO-DIMM slot, providing excellent memory bandwidth for multitasking applications. Display connectivity is provided through dual HDMI ports, each capable of driving 4K resolution at 60Hz, enabling independent dual-display configurations for digital signage, HMI applications, or multi-monitor workstations. Network connectivity includes dual Intel i226-LM 2.5 Gigabit Ethernet ports with Wake-on-LAN support, ensuring high-speed and reliable data communication for industrial networking requirements. The comprehensive I/O configuration features two USB 3.2 ports, two USB 2.0 ports, dual RS232/422/485 serial ports with auto flow control, 2x CANBus interfaces, and 8-bit programmable digital I/O, making it suitable for connecting diverse industrial sensors, controllers, and legacy equipment. Expansion capabilities include M.2 2230 E Key for WiFi modules and M.2 2280 B Key with nano SIM holder for 5G wireless connectivity, both RED certified with selected modules. Security is enhanced through onboard TPM 2.0, while the rugged aluminum housing enables reliable operation across an extended temperature range of -30 to 60°C with 0.7m/s airflow. The compact dimensions of 133 x 46.4 x 94.2mm and flexible DIN-rail, wall, or VESA mounting options allow easy integration into space-constrained installations. Certified for CE, FCC Class B, UL, and UKCA, the ARK-1125H is ideal for industrial automation, machine control, IoT gateways, smart manufacturing, transportation systems, and edge computing deployments. Available from Recab, your Nordic partner for Advantech embedded computer solutions.
