IGT-33V / IGT-34C – ARM-Based Industrial IoT Gateway with Analog Inputs by Neousys Technology

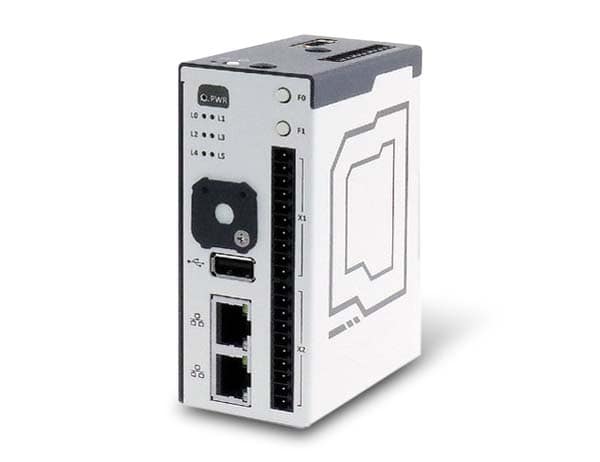

The Neousys IGT-33V and IGT-34C are compact ARM-based industrial IoT gateways from the IGT-30 series, powered by the Texas Instruments Sitara AM3352 1 GHz processor with 1 GB DDR3L SDRAM and pre-installed Debian 9, making them ready-to-deploy platforms for IIoT gateway, edge data acquisition, and Industry 4.0 applications. The key differentiator between the two models is their analog input type: the IGT-33V integrates eight 16-bit analog voltage inputs (0-10V, ±5V, ±10V), while the IGT-34C provides four 16-bit current inputs (4-20mA / 0-20mA) — enabling direct connection to a wide variety of industrial sensors without external signal conditioning. Both models share a common I/O set including dual 10/100M LAN ports (one with IEEE 802.3at PoE+ PD), one USB 2.0 port, two COM ports (RS-485 and configurable RS-232/422/485), two isolated digital inputs, six digital outputs, six programmable LEDs, and two programmable function buttons. Wireless connectivity is handled via a full-size mini PCIe slot with USIM holder supporting 3G, 4G LTE, or Wi-Fi modules, and dual microSDHC slots — one internal, one external — allow separation of system and user data. Power input accepts 12 to 25 V DC with IEEE 802.3at PoE+ PD capability, and the system operates from -25 to +70 °C in a compact 43 x 77 x 104 mm DIN rail enclosure. CE/FCC Class A certified per EN55032 and EN55024, the IGT-33V and IGT-34C are an excellent fit for industrial sensor data acquisition, factory IIoT gateways, remote monitoring, and smart manufacturing projects across Nordic and Baltic markets. Available from Recab, your Nordic partner for Neousys industrial IoT gateway solutions.
