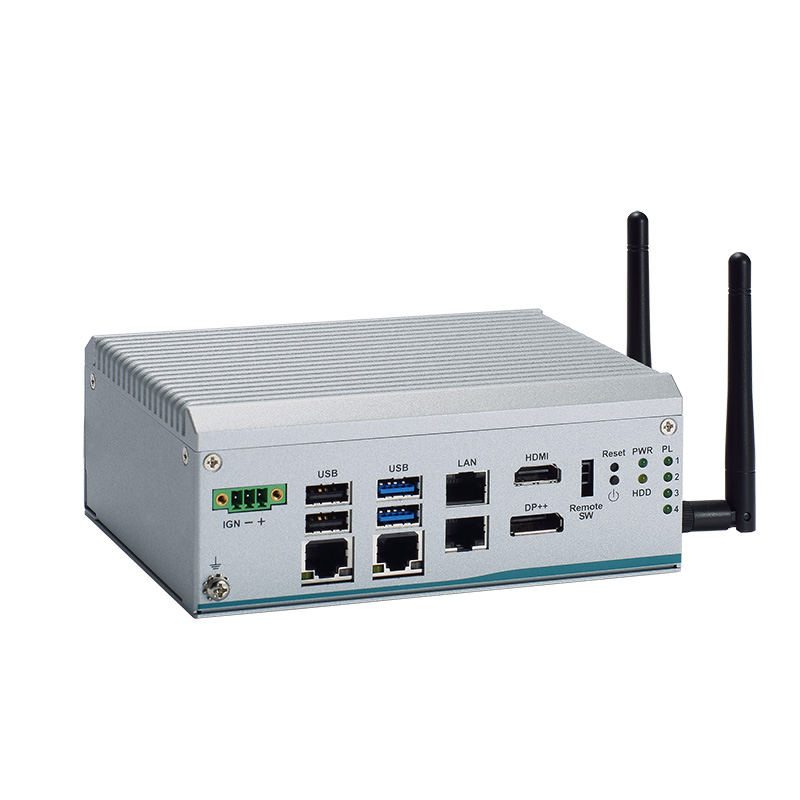

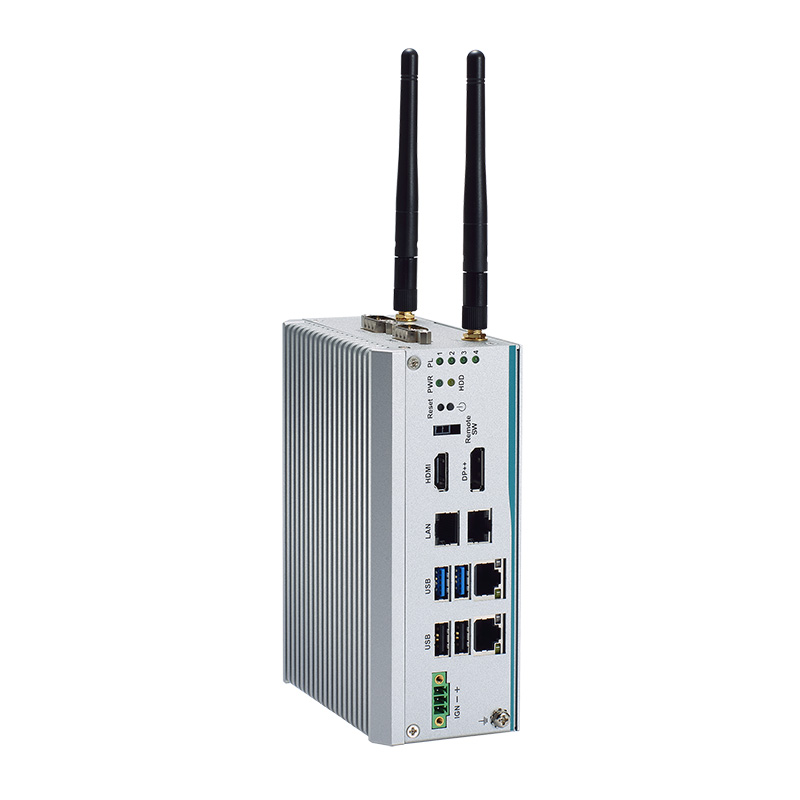

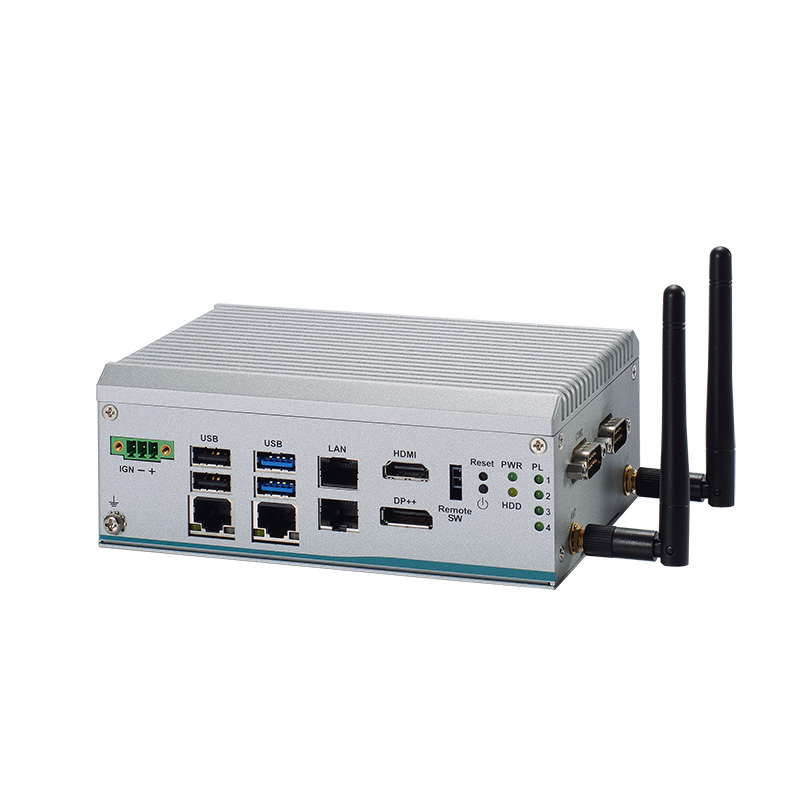

eBOX100A – Fanless Alder Lake-N Embedded System by Axiomtek

The Axiomtek eBOX100A is a fanless embedded system powered by Intel Alder Lake-N processors including N97 and i3-N305 options. This compact industrial computer features DDR5 memory support up to 16GB, dual 2.5GbE or quad 2.5GbE LAN configurations, dual display outputs via HDMI and DisplayPort++, and wide 9 to 36 VDC power input with ignition control. Operating across an extended temperature range from -40°C to +60°C, the eBOX100A is IEC 60945 certified for maritime applications. The front-access I/O design simplifies maintenance while wall mount, VESA mount, and DIN-rail mounting options provide installation flexibility. Available from Recab, your Nordic partner for Axiomtek embedded computing solutions.

manufacturer

Axiomtek

product model

eBOX100A
Download datasheet
Contact an expert
CE Certified, FCC Class A, IEC 60945, IP40 Rated, UKCA Certified, UL 62368-1

Overview

The Axiomtek eBOX100A is a compact fanless embedded system designed for demanding industrial and maritime environments. Built around Intel Alder Lake-N processors with options including the Intel N97 quad-core running up to 3.6 GHz at 12W and the Intel i3-N305 octa-core reaching up to 3.8 GHz at 15W, this system delivers efficient computing performance in a rugged IP40-rated aluminum and steel enclosure. The system supports DDR5-4800 SO-DIMM memory up to 16GB, providing modern memory bandwidth for industrial workloads. Network connectivity is available in either dual or quad 2.5GbE LAN configurations using Intel I226-V controllers, making it suitable for data-intensive applications and network edge deployments. Dual display capability through HDMI at Full HD resolution and DisplayPort++ 1.4a enables versatile visual output for control rooms and digital signage applications. The eBOX100A accepts wide-range 9 to 36 VDC power input with comprehensive protection including over-voltage, under-voltage, over-current, short circuit, and reverse polarity protection. Ignition control functionality makes it ideal for vehicle and mobile applications. Extended operating temperatures from -40°C to +60°C combined with IEC 60945 maritime certification qualify this system for harsh marine environments. Expansion options include a full-size PCIe Mini Card slot with SIM support and an M.2 Key E 2230 socket for Wi-Fi 6E connectivity on dual-LAN models. Storage is provided via a 2.5-inch SATA bay supporting drives up to 15mm height. TPM 2.0 security, a 255-level watchdog timer, and intelligent USB power management round out the feature set. The front-access I/O design combined with wall mount, VESA mount, and DIN-rail mounting options provides maximum deployment flexibility. Available from Recab, your Nordic partner for Axiomtek embedded computing solutions.
Compact, DIN Rail, Expandable, Extended Input Voltage, Fanless, Ignition Control, Mounting Options, Multiple Displays, Rugged Design, TPM 2.0, Wi-Fi, Wide Temperature

Key highlights

  • List Item #1
  • List Item #2
  • List Item #3

Features

  • Intel Alder Lake-N processors including N97 and i3-N305 options for efficient performance
  • Wide operating temperature range from minus 40 to plus 60 degrees Celsius
  • Available in dual or quad 2.5GbE LAN configurations for flexible networking
  • Dual display support via HDMI Full HD and DisplayPort plus plus 1.4a outputs
  • Wide 9 to 36 VDC power input with ignition control for vehicle applications
  • IEC 60945 maritime certification for reliable operation in marine environments

Specifications

CPU Intel® processor N97 (up to 3.6 GHz, 12W) or Intel® processor i3-N305 (up to 3.8 GHz, 15W)
System Memory 1 x 262-pin DDR5-4800 SO-DIMM, up to 16GB
LAN 2 x 2.5GbE or 4 x 2.5GbE (Intel® I226-V)
Display Output 1 x HDMI (FHD), 1 x DisplayPort++ 1.4a
USB Ports 2 x USB 3.2 Gen 1, 2 x USB 2.0
Serial Ports 2 x RS-232/422/485 with autoflow
Storage 1 x 2.5" SATA HDD/SSD (up to 15 mm height)
Power Input 9 to 36 VDC with ignition
Operating Temperature -40°C to +60°C
Dimensions (W x D x H) 155 x 110 x 60 mm
Weight 1.1 kg (net)
Expansion 1 x full-size PCIe Mini Card, 1 x M.2 Key E 2230 (2-LAN version)
TPM TPM 2.0
Certifications CE, FCC Class A, UKCA, UL 62368-1, IEC 60945
Construction Aluminum extrusion and heavy-duty steel, IP40

Applications

  • Maritime vessel bridge systems and navigation computing
  • In-vehicle computing and fleet management applications
  • Industrial automation and edge computing deployments
  • Digital signage and kiosk control systems

Resources

Datasheet

https://recab.com/wp-content/uploads/2026/10/ebox100a.pdf
