Nuvo-9501

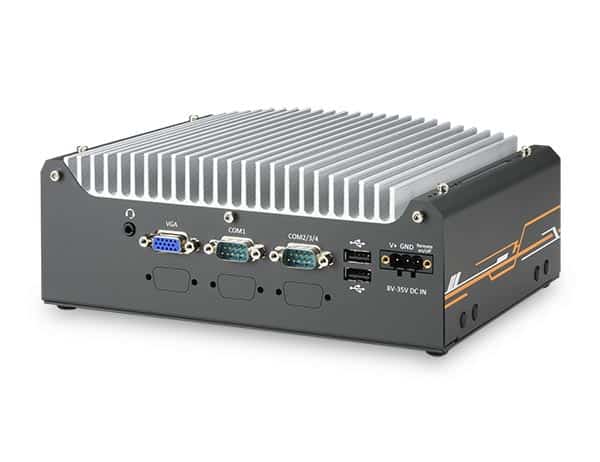

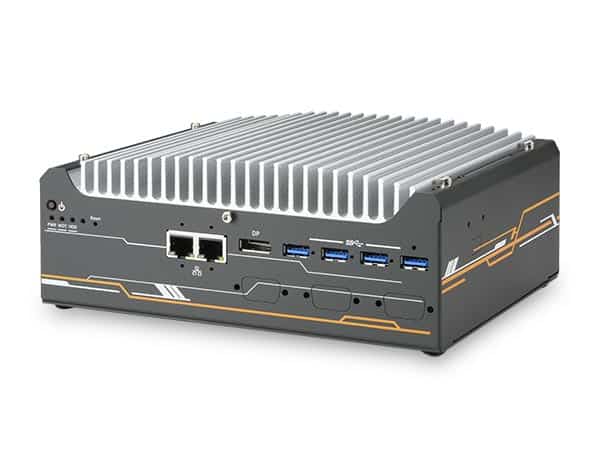

Nuvo-9501 Series – Compact Fanless Embedded Computer with 2.5GbE by Neousys

The Neousys Nuvo-9501 Series is a cost-effective compact fanless embedded computer powered by Intel 12th, 13th, or 14th generation Core LGA1700 processors in a 212 x 165 x 80 mm footprint. It delivers dual 2.5GbE, four USB 3.2 Gen1 with screw-lock, M.2 Gen4 x4 NVMe, SATA HDD, dual mPCIe and M.2 E key for wireless expansion, and VGA plus DisplayPort outputs, operating from -10°C to 60°C (or -25°C to 60°C for the Nuvo-9505D with isolated 8-CH DIO). Suited to data collection, industrial automation, and surveillance edge computing. Available from Recab, your Nordic partner for Neousys rugged embedded computing solutions.
Description
The Neousys Nuvo-9501 Series is a compact and cost-effective fanless embedded computer built on Intel 12th, 13th, and 14th generation Core LGA1700 processors for engineers seeking a high-performance yet space-efficient embedded platform for industrial automation, data collection, surveillance, and general-purpose edge computing without the complexity or cost of a larger system. Measuring just 212 x 165 x 80 mm, the Nuvo-9501 accepts processors from Celeron through Core i9 at 35W and 65W TDP on the Intel H610E PCH, delivering up to 2x the performance of 10th and 11th generation platforms built on Intel’s advanced 7nm process with up to 24 cores and 32 threads. Up to 32GB non-ECC DDR4 3200 SDRAM via a single SODIMM slot and one M.2 2280 M key PCIe Gen4 x4 NVMe slot supporting read/write speeds up to 7000 MB/s provide fast data handling for surveillance and data collection workloads. One internal SATA port accommodates a 3.5-inch or 2.5-inch HDD for high-capacity storage expansion. Networking is provided by dual 2.5GbE ports via Intel I226 controllers with screw-lock connectors, and four USB 3.2 Gen1 ports also with screw-lock for vibration-resistant peripheral connectivity. Two full-size mini PCIe sockets with internal SIM and one M.2 2230 E key slot support WiFi5, WiFi6, 5G, 4G, and Google Edge TPU modules. One RS-232/422/485 COM port and three additional RS-232 ports cover serial device needs. Display outputs include VGA at 1920×1200 and DisplayPort at 4K. The Nuvo-9505D variant adds eight-channel isolated DIO and extends the operating temperature to -25°C to 60°C. Software-selectable fTPM 2.0, MIL-STD-810H vibration and shock ratings, and CE/FCC Class A EMC compliance complete the industrial specification, with 8 to 35V DC input supporting broad power source compatibility. Available from Recab, your Nordic partner for Neousys rugged embedded computing solutions.
Features
  • Intel 12th to 14th Gen Core LGA1700 in a 212 x 165 x 80 mm footprint delivers up to 2x performance over 10th Gen
  • M.2 2280 Gen4 x4 NVMe slot supports SSDs with read/write speeds up to 7000 MB/s for fast data workloads
  • Dual 2.5GbE screw-lock ports with USB 3.2 Gen1 screw-lock connectors ensure vibration-resistant industrial connectivity
  • Two mini PCIe sockets and M.2 E key support WiFi5, WiFi6, 5G, 4G, and Google Edge TPU module installations
  • Nuvo-9505D variant adds eight-channel isolated DIO and extends operation to -25°C for wider industrial use
  • MIL-STD-810H vibration and shock ratings with CE/FCC Class A EMC support diverse industrial deployment environments
Specifications
Processor Intel 14th/13th/12th Gen Core
Memory Up to 32GB DDR4 3200
Storage 1x M.2 2280 NVMe SSD
Ethernet 2x 2.5GBASE-T
Power 8-35V DC Input
Video 1x VGA and 1x DP
Weight 2.5 kg
Dimension 212 x 165 x 80 mm
Humidity 10% to 90%
Vibration MIL-STD-810H, Method 514.8
  • Industrial automation and factory floor compact embedded computing deployments
  • Data collection and edge surveillance with NVMe high-speed storage
  • Compact IoT gateway with 5G/4G and WiFi wireless expansion capability
  • General-purpose rugged fanless embedded computing for industrial OEM integration
