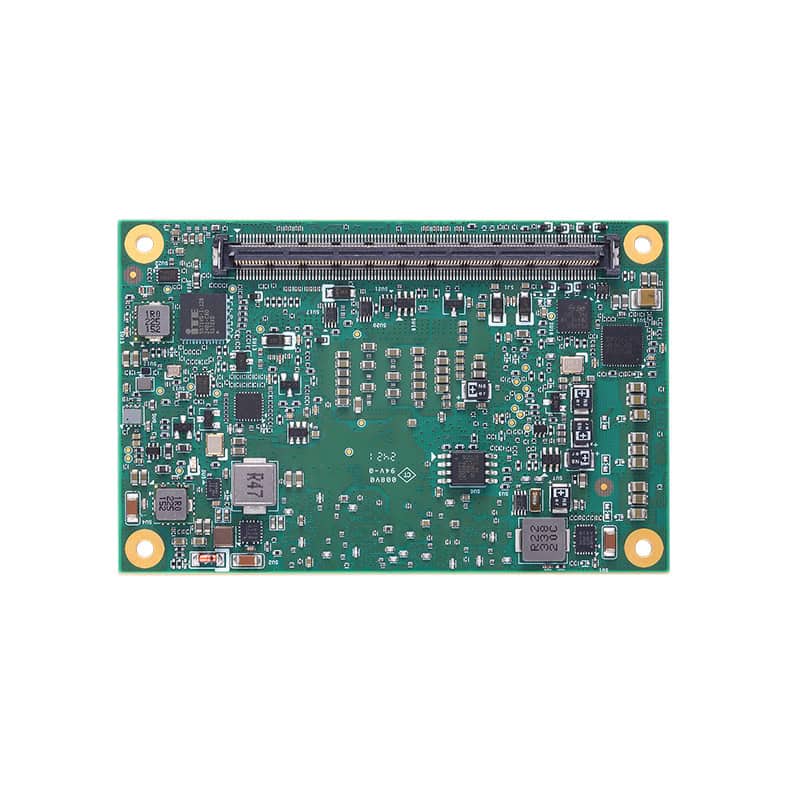

The Axiomtek CEM568 is a high-performance COM Express Type 10 Mini module built around the 13th Gen Intel Core i7, i5, i3, or Processor U300E (Raptor Lake), designed for embedded system designers who need maximum processing power and modern I/O in the compact 84 x 55 mm COM Express Type 10 Mini form factor. The module features LPDDR5-6400 memory support up to 32 GB on SoC-integrated dual-channel architecture, delivering the memory bandwidth demanded by AI inference, machine vision, and data-intensive transport applications. Up to four PCIe x1 lanes are available for expansion, alongside 2 x USB 3.2 Gen2 and 8 x USB 2.0 ports, 2 x SATA 3.0, 2.5GbE LAN with Intel I226, dual-view display via LVDS and DDI (up to 8K), and an optional NVMe SSD up to 512 GB. TPM 2.0 is included for hardware-based security, and the AMI uEFI BIOS is fully legacy-free. Extended temperature operation spans -40 to +85 °C with an appropriate system thermal solution, and standard temperature range covers -20 to +70 °C, making the CEM568 suitable for outdoor, railway, and harsh industrial environments. Ordering variants include i7-1365URE, i5-1345URE, i3-1315URE, and U300E processor options, all with 64 GB NVMe, 2.5GbE LAN, DDI, LVDS, and TPM. The CEM568 is a strong fit for industrial automation, medical imaging, intelligent transportation, and railway embedded systems across the Nordic and Baltic regions. Available from Recab, your Nordic partner for Axiomtek embedded computing solutions.
