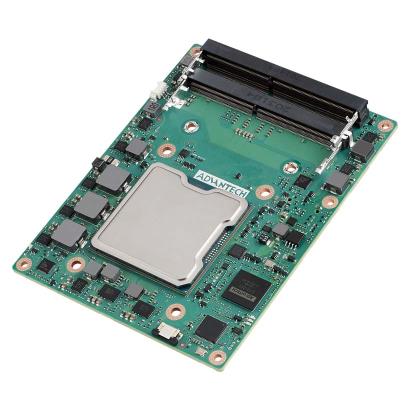

SOM-5993 – Intel Xeon D COM Express Type 7 Module by Advantech

The Advantech SOM-5993 is a cutting-edge COM Express R3.0 Basic Type 7 module designed for demanding embedded computing applications that require server-class performance in a compact form factor. Built around Intel Xeon D processors from the Ice Lake-D LCC family, this module offers configurations ranging from 4-core to 10-core processors with base frequencies up to 2.4GHz and turbo frequencies reaching 3.5GHz, delivering exceptional computational throughput for edge computing and network-intensive workloads. The module excels in networking applications with its integrated Intel 10G LAN controller providing four 10GBASE-KR interfaces alongside a 2.5GbE port, making it perfectly suited for network appliances, telecom infrastructure, and high-bandwidth data processing systems. Memory support extends to 128GB of DDR4 at 2933MHz across four SO-DIMM sockets with optional ECC capability, ensuring data integrity for mission-critical applications. Expansion capabilities are comprehensive, featuring PCIe Gen4 x16 that can bifurcate to multiple configurations, PCIe Gen3 x8, and additional PCIe lanes for peripheral connectivity. The module includes essential I/O interfaces such as four USB 3.0 and four USB 2.0 ports, two SATA ports, TPM 2.0 security, and smart fan control for thermal management. Environmental specifications support standard operation from 0 to 60°C, with extended temperature variants operating reliably from -40 to 85°C, addressing industrial, defense, and outdoor deployment requirements. The SOM-5993 integrates seamlessly with Advantech software tools including SUSI API, DeviceOn remote management, and Edge AI Suite for intelligent edge applications. This module serves applications across telecommunications, industrial automation, network security appliances, edge AI inference systems, and critical infrastructure where processing power, networking bandwidth, and reliability are paramount. Available from Recab, your Nordic partner for Advantech computer on module solutions.
