CEM570 – COM Express Type 6 Basic Module with Intel Core Ultra by Axiomtek

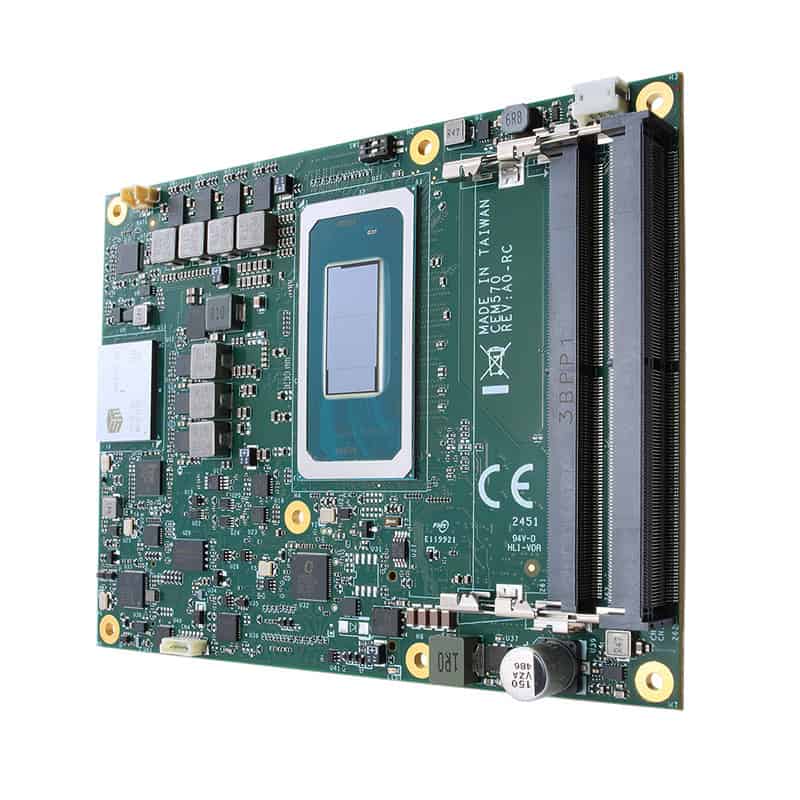

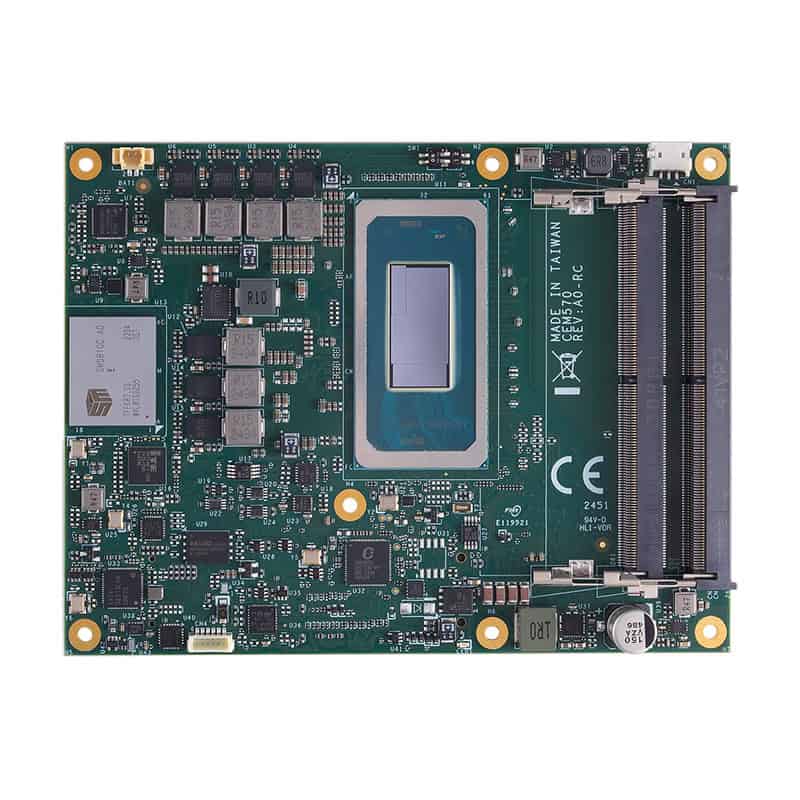

The Axiomtek CEM570 is a COM Express Type 6 Basic compute module built around the Intel Core Ultra processor family, commonly known as Meteor Lake U/H, bringing next-generation AI-capable processing, Arc integrated graphics, and DDR5 memory to embedded system designers working in demanding edge, industrial, and defence-adjacent applications. The CEM570 features two DDR5-5600 SO-DIMM slots supporting up to 96GB of dual-channel memory — a significant step beyond previous-generation DDR4 modules — alongside an onboard NVMe SSD slot supporting up to 1TB of high-speed storage. PCIe connectivity is extensive: up to 1 x PCIe Gen4 x8 for a primary graphics or expansion device, plus up to 8 x PCIe Gen3 x1 HSIO lanes configurable for multiple peripheral controllers, NVMe storage, and LAN adapters, with the exact configuration varying by CPU SKU. The Intel Arc (Xe LPG) integrated GPU supports up to four simultaneous independent displays through three DDI interfaces configurable as HDMI 2.1 or DisplayPort 2.1 HBR3 at 4096 x 2304 resolution, plus LVDS or optional eDP 1.4b for a fourth panel. USB connectivity covers 4 x USB 3.2 Gen2 and 8 x USB 2.0 routed to the COM Express connector. Two SATA Gen3 ports, one 2.5GbE LAN via Intel I226 with IEEE 1588 support, HD Audio, SMBus, I2C, GPIO, and TPM 2.0 complete the feature set. The standard operating temperature range is 0°C to +60°C, with extended -40°C to +85°C available on request. Board dimensions are 125 x 95 mm per the COM Express Basic specification. Available from Recab, your Nordic partner for Axiomtek embedded module solutions.
