MVC-4246

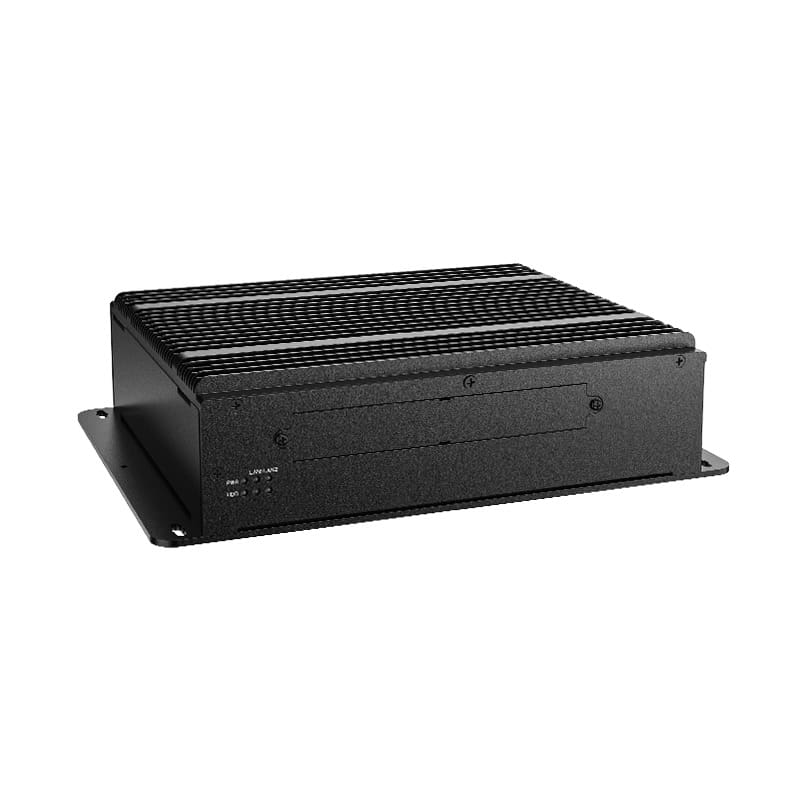

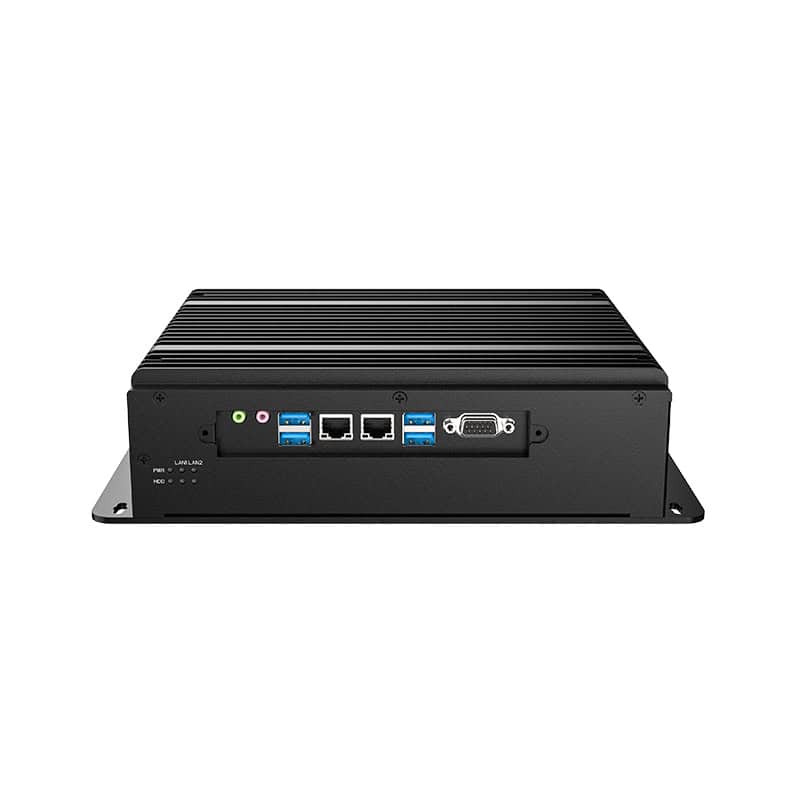

MVC-4246 – Rugged Fanless Vehicle Computer with Intel Core-i by Darveen

The Darveen MVC-4246 is a rugged fanless vehicle computer powered by an Intel Core i5-8265U or i7-8565U processor, designed for mobile computing in mining, transportation, and other demanding vehicle-mounted applications. Operating across -30°C to 70°C with a 9V to 36V DC input and ignition control, it features M12 I/O connectors, isolated RS-232/485 serial ports, dual GbE LAN via both M12 and RJ45, and flexible expansion for Wi-Fi, LTE/5G, GPS, and CAN2.0B modules. The MIL-STD-810G certified aluminium chassis ensures reliable operation in high-vibration environments. Available from Recab, your Nordic partner for Darveen rugged vehicle computer solutions.
Description
The Darveen MVC-4246 is a rugged fanless vehicle-mounted embedded computer built for mobile industrial applications in mining, heavy transportation, public safety, and field operations where reliable computing under vibration, shock, and extreme temperatures is essential. The system is powered by an Intel Core i5-8265U or i7-8565U processor with Intel HD Graphics 620, supported by dual-channel DDR4 SODIMM memory upgradeable to 32GB, and a full-size mini-PCIe slot for mSATA storage. The MVC-4246 operates across -30°C to 70°C in a completely fanless aluminium and SGCC steel chassis that satisfies MIL-STD-810G anti-vibration and shock standards for reliable use in vehicle cabins, machinery, and outdoor mobile platforms. Power input accepts 9V to 36V DC with ignition control providing configurable power-on delay and shutdown delay functions, while an optional battery-backed mode supports 5V to 32V input with an integrated 3350mAh lithium battery for continued operation during vehicle power interruptions. Connectivity is extensive: four USB 2.0 and four USB 3.0 Type-A ports are provided, along with six isolated RS-232/485 serial ports via M12 connectors, dual Gigabit Ethernet available via both M12 and RJ45 interfaces, optional PoE/PoE+ on two ports, and a VGA display output in both M12 and DB15 formats. An M.2 3052 B Key slot and two mini-PCIe sockets enable expansion for 4G/5G, 802.11ac/ax Wi-Fi, Bluetooth, GPS/GNSS/Galileo, and CAN2.0B modules, giving system integrators flexible connectivity options for telematics and fleet management use cases. Available from Recab, your Nordic partner for Darveen rugged vehicle computer solutions.
Features
  • Intel Core i5-8265U or i7-8565U processor with up to 32GB DDR4 memory delivers full Windows or Linux computing capability in a compact fanless vehicle-mount chassis.
  • MIL-STD-810G anti-vibration and shock compliance with a high-strength aluminium and SGCC steel enclosure ensures reliable operation in demanding vehicle environments.
  • Six isolated RS-232/485 serial ports via M12 connectors and dual GbE LAN via both M12 and RJ45 provide comprehensive rugged connectivity for vehicle integration.
  • A 9V to 36V DC input with configurable ignition control delay-start and delay-shutdown functions protects the system during vehicle power cycling events.
  • M.2 3052 B Key and mini-PCIe expansion sockets support 4G/5G, Wi-Fi, Bluetooth, GPS/GNSS, and CAN2.0B modules for flexible telematics and communication integration.
  • Optional PoE/PoE+ on two GbE ports and optional battery backup with a 3350mAh lithium cell extend deployment versatility across powered and unpowered vehicle platforms.
Specifications
CPU Intel Core I5-8265U/I7-8565U
Memory Up to 32GB DDR4 SODIMM
Storage 1 x Full-size Mini-PCIe for mSATA
GPU Intel HD Graphics 620
I/O Ports Multiple USB and LAN Ports
Power 9~36V DC Input
Operating Temp. -30~70°C
Weight 4Kg
Dimensions 273.6 x 199.2 x 65.6 mm
Certification CE, FCC
  • Mining vehicle on-board computing with M12 rugged I/O connectivity
  • Fleet telematics and GPS tracking in heavy transport and logistics vehicles
  • Mobile command and control computing in public safety and emergency vehicles
  • Industrial machine control in outdoor and high-vibration mobile platforms
