POC-751VTC – Ultra-Compact In-Vehicle Computer with PoE+ and SocketCAN by Neousys Technology

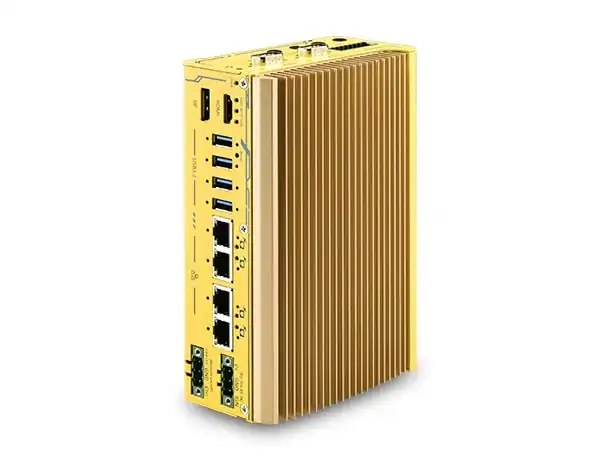

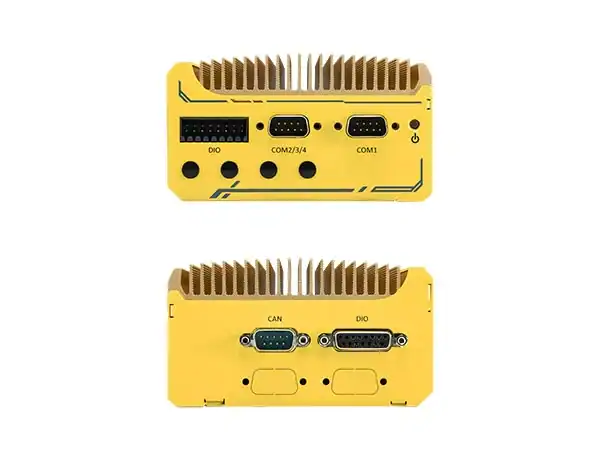

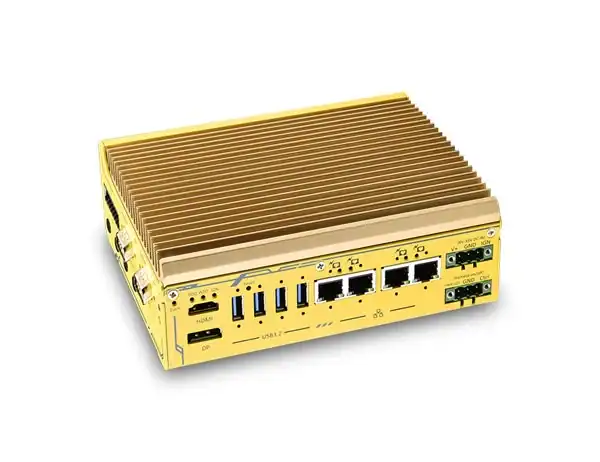

The Neousys POC-751VTC is a next-generation ultra-compact in-vehicle computer from Neousys Technology, purpose-built for demanding mobile and transportation applications including mobile gateways, vehicle surveillance, passenger information systems, and intelligent in-vehicle IoT deployments. Powered by the Intel Alder Lake Core i3-N305 processor with eight efficiency cores, 15W TDP, and Intel UHD Graphics with 32 EUs — supporting OpenVINO for edge AI inference — the system accommodates up to 16 GB DDR5-4800 SDRAM in a single SODIMM socket and includes dTPM 2.0 for hardware security. Four Gigabit Ethernet ports via Intel I350-AM4 all support IEEE 802.3at PoE+ at 25W per port, enabling direct powering of IP cameras and connected field devices. Four USB 3.2 Gen2 ports with screw-lock connectors provide robust connectivity in vibration-prone environments, while two isolated CAN 2.0 ports with SocketCAN support in Linux enable direct integration with vehicle communication buses. The system integrates 8-channel isolated DI and 8-channel isolated DO (split across motherboard and MezIO board), dual mPCIe slots with conduction-cooled heatsinks for Wi-Fi, 4G, or 5G modules, and an M.2 2280 M-key slot for SSD storage. Power is accepted via a wide 8 to 35 V DC input with built-in ignition power control, over/under voltage, over-current, and reverse polarity protection. The compact 176 x 116 x 64 mm enclosure operates from -40 to +70 °C with wall-mount options. EMC certifications include E-Mark, EN 50121 (EN 50155 EMC), and CE/FCC Class A. Available from Recab, your Nordic partner for Neousys in-vehicle computing solutions.
