Nuvo-9200VTC Series – In-Vehicle Controller with PCIe Cassette and EN 50155 by Neousys

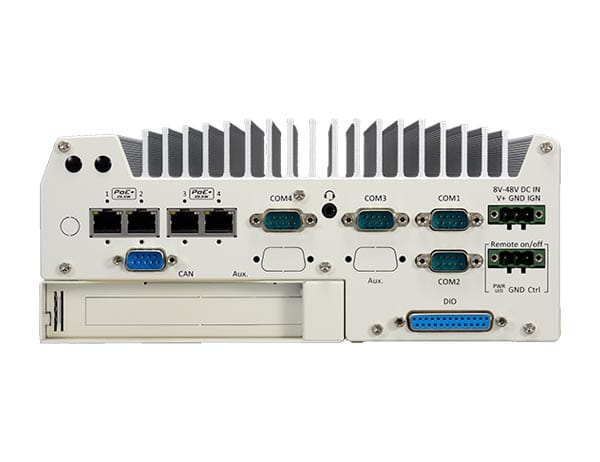

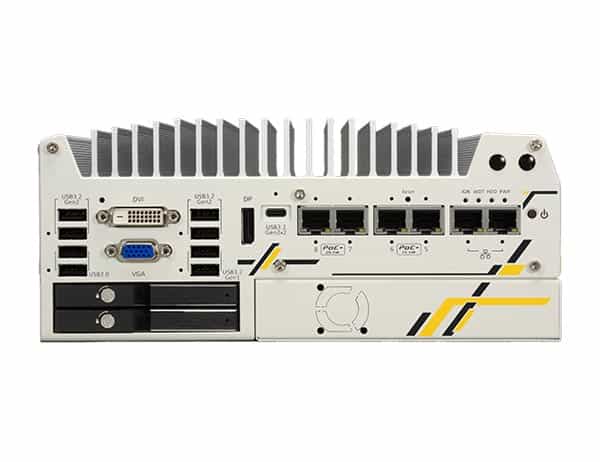

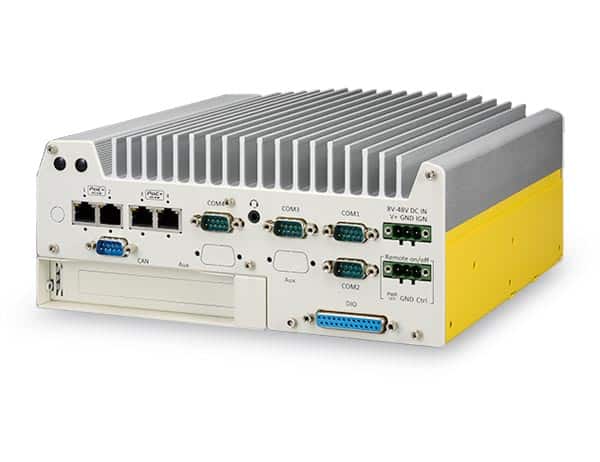

The Neousys Nuvo-9200VTC Series is a rugged in-vehicle computing platform built on Intel 12th, 13th, and 14th generation Core LGA1700 processors, sharing the core feature set of the Nuvo-9100VTC while adding the key capability of a patented single-slot PCIe Cassette module for installing add-on cards — expanding functionality for more complex in-vehicle and transportation system integrations. Supporting processors from Celeron through Core i9 at 35W and 65W TDP on the Intel Q670E PCH, the Nuvo-9200VTC delivers up to 1.8x the performance of previous 10th and 11th generation platforms, with DDR5 4800 SDRAM up to 64GB across two SODIMM slots and M.2 2280 Gen4 x4 NVMe for high-speed storage. Three variants address different connectivity needs: the Nuvo-9200VTC with four M12 X-coded PoE+ ports, the Nuvo-9204VTC with four RJ45 PoE+ ports, and the Nuvo-9208VTC with eight RJ45 PoE+ ports combining four GbE and four 2.5GbE interfaces. All variants include one 2.5GbE and one GbE screw-lock port, one USB 3.2 Gen2x2 Type-C with screw-lock, four USB 3.2 Gen2, two USB 3.2 Gen1, two USB 2.0, isolated CAN 2.0, four isolated DI and four isolated DO, four COM ports with RS-232/422/485 options, and VGA, DVI-D, and DisplayPort outputs. Unlike the Nuvo-9100VTC, the Nuvo-9200VTC includes two hot-swappable 2.5-inch SATA HDD trays with RAID 0/1 for higher storage capacity and the PCIe Gen3 x16 Cassette slot for GPU or capture card expansion. Wireless expansion covers two M.2 B key sockets with SIM for 5G/4G and three mini PCIe sockets. E-Mark, EN 45545-2, and EN 50155 EMC compliance with IEC 61373 Category I Class B vibration and shock ratings and 8 to 48V DC ignition control complete the in-vehicle certification. Available from Recab, your Nordic partner for Neousys in-vehicle computing solutions.
