KIWI330

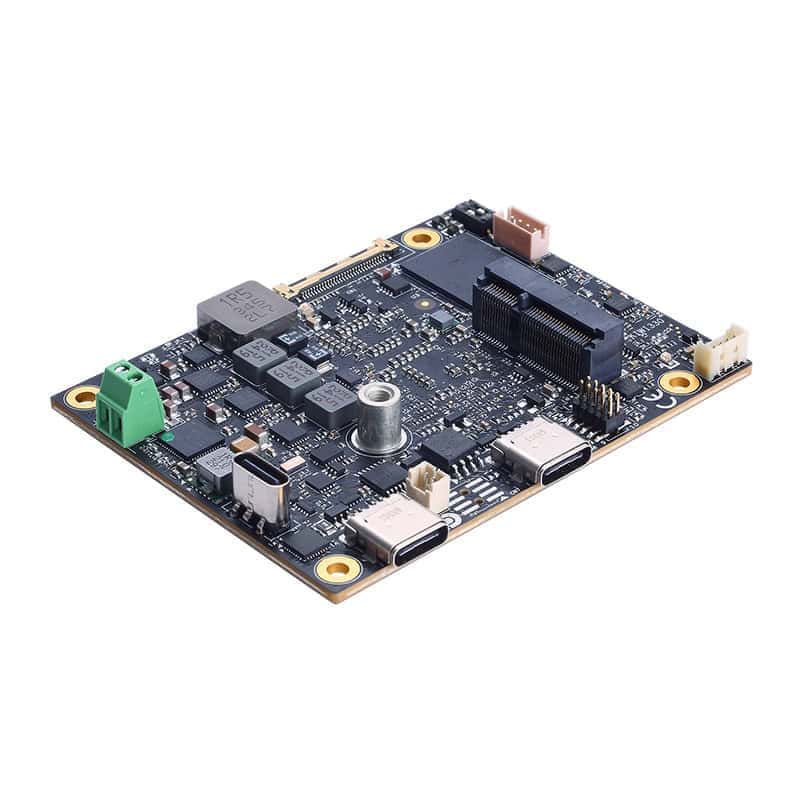

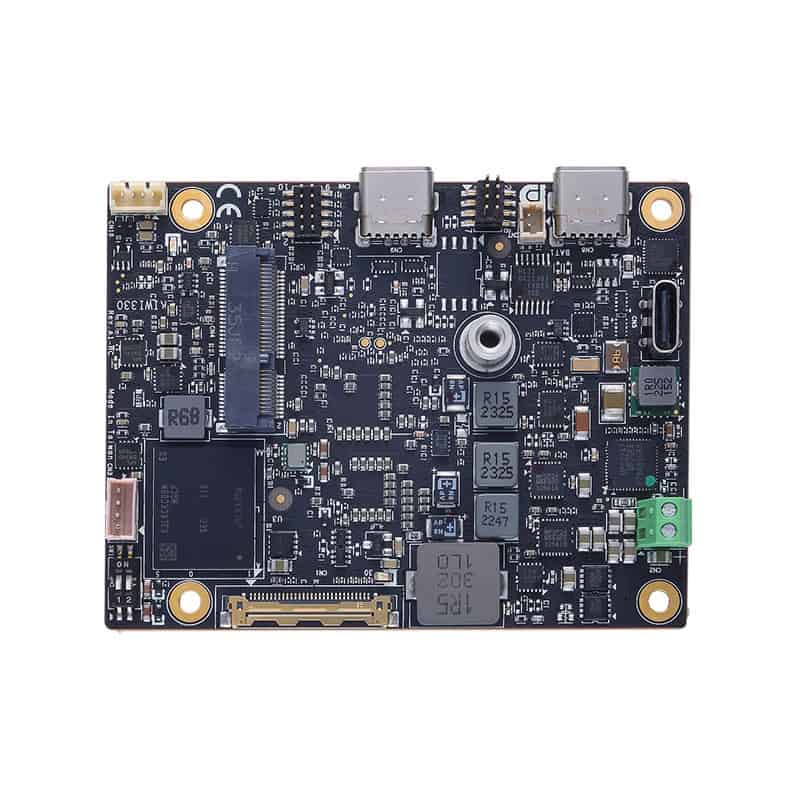

KIWI330 – 1.6-Inch Embedded SBC with Intel Amston Lake by Axiomtek

The Axiomtek KIWI330 is an ultra-compact 1.6-inch single board computer measuring just 72 x 56 mm, powered by an onboard Intel Amston Lake or Alder Lake-N processor with 4 GB of onboard LPDDR5 memory and 64 GB of onboard NVMe SSD storage. USB 3.2 Type-C connectivity including DisplayPort alternate mode, an eDP display interface, M.2 Key-E expansion, 8-bit GPIO, and a -30 to +60 degree Celsius operating range for the Amston Lake variant make it ideal for ultra-compact embedded, IoT, and fanless panel computing applications. Available from Recab, your Nordic partner for Axiomtek embedded board solutions.
contct-now-icon (2) Get datasheet
Description
The Axiomtek KIWI330 is an ultra-miniature 1.6-inch single board computer measuring just 72 x 56 mm, designed for space-critical embedded computing, IoT device integration, and compact fanless panel applications. Built around an Intel Amston Lake or Alder Lake-N SoC-integrated processor with onboard 4 GB LPDDR5 memory and 64 GB BGA NVMe SSD, the KIWI330 eliminates the need for separate memory and storage modules, keeping the board footprint exceptionally small. Display output is supported via an onboard eDP connector for direct panel integration and via one USB 3.2 Type-C port supporting DisplayPort alternate mode, allowing connection of an external monitor without additional display hardware. A second USB 3.2 Type-C port provides connectivity, and a vertical USB 3.2 Type-C port adds an additional upstream connection option. An M.2 Key-E 2230 socket with PCIe and USB 2.0 interface supports WLAN, Bluetooth, or other PCIe-based add-in modules. Eight-bit onboard GPIO and one internal USB 2.0 header via 4-pin wafer connector provide I/O flexibility for embedded system integration. The KIWI330 is further expandable via optional MIO accessory boards: the MIO334 adds six RS-232 COM ports in a 67 x 55 mm module, and the MIO335 adds dual GbE LAN and two USB 2.0 ports in the same footprint, enabling the KIWI330 to serve as a complete networked embedded controller. A 12 VDC power input via 2-pin Phoenix connector, 255-level hardware watchdog, AMI BIOS, and operating temperature of -30 to +60 degrees Celsius for the Amston Lake variant make it a capable and flexible ultra-compact embedded computing platform. Available from Recab, your Nordic partner for Axiomtek embedded board solutions.
Features
  • Ultra-compact 72 x 56 mm board with onboard LPDDR5 and NVMe eliminates separate memory and storage for minimal system footprint.
  • Intel Amston Lake and Alder Lake-N SoC options deliver low-power efficient processing for fanless embedded and IoT applications.
  • USB 3.2 Type-C with DisplayPort alternate mode and onboard eDP connector provide flexible display integration without additional hardware.
  • M.2 Key-E 2230 socket with PCIe and USB 2.0 supports WLAN, Bluetooth, and PCIe add-in module expansion.
  • Optional MIO334 six COM port module and MIO335 dual GbE LAN module extend the board into a fully networked embedded controller.
  • Amston Lake variant operates from -30 to +60 degrees Celsius with 8-bit onboard GPIO and 255-level hardware watchdog for robust field use.
Specifications
CPU Intel Amston Lake/Alder Lake-N
Memory Onboard 4GB LPDDR5
Storage BGA 64GB NVMe
Power 12 VDC/5A
Dimensions 72 mm × 56 mm
Temp -30°C to +60°C
Thickness 1.6 mm
Humidity 10% to 95%
  • Ultra-compact embedded computing in space-critical IoT devices and industrial sensor nodes
  • Fanless panel PC and HMI integration using the onboard eDP and USB Type-C DisplayPort alternate mode
  • Compact industrial gateway with optional MIO335 dual GbE LAN and MIO334 six COM port expansion modules
  • Miniature embedded controller in medical devices, vending machines, and retail kiosk terminals
